Allied Vision Goldeye SWIR cameraShort Wave Infra-Red (SWIR) imaging is now more economical with the introduction of Allied Vision’s TECless Goldeye cameras.  SWIR cameras open up numerous application possibilities for machine vision solutions, since they are able to detect defects that are not visible to the naked eye.

SWIR cameras have an InGaAs (Indium Gallium Arsenide) sensor that detects wavelengths between 900nm and 1,700nm.  These wavelengths are invisible to the human eye and CCD / CMOS cameras, however SWIR cameras detect the invisible wavelength found in various applications.  For example water accumulations inside fruits or defects within silicon products.

SWIR - light emmission at 1150nm
Light emitted by silicon in solar cells peak at 1150nm

Learn more about applications solved with SWIR cameras HERE.

SWIR cameras typically require Thermal Electric Coolers (TEC’s) which enable low-noise imaging in the spectral range of 900mm to 1,700nm.  Additionally, the TEC’s compensate for high temperature fluctuations and stabilizes the image sensor.

For temperature stable environments, Allied Vision now has a “TECless” InGaAs camera providing a lower entry price point, in turn an excellent price-performance ratio.

The Goldeye G-033 and CL-033 TECless InGaAs cameras are the solution to applications unachievable with standard cameras offering the following features

  • SWIR imaging from 900nm to 1700nm
  • High frame rates of 301 fps with VGA resolution
  • Power over Ethernet (PoE)
  • Compact design with no fan
  • Lower cost vs TEC versions
  • GigE and Camera link interfaces.

Click below for the full specifications on the Goldeye  TECless cameras and click “Get Quote” for pricing

GigE – Goldeye G-008 TECless
Camera link – Goldeye CL-008

Need to see it for yourself?  1stVision can provide a demo Goldeye camera to test on your application.  Submit your request for a demo camera by entering “Send me a demo SWIR camera” in the comment box.


Download the comprehensive SWIR application white paper here.

1st Vision’s sales engineers have over 100 years of combined experience to assist in your camera selection.  With a large portfolio of lenses, cables, NIC card and industrial computers, we can provide a full vision solution!

Related Posts

How to select the best SWIR camera for my application and understand applications it can solve.

Download the comprehensive SWIR application white paper.

Learn about CoaXpress and frame rates achievable with Allied Vision’s “Bonito Pro” cameras with CXP-6

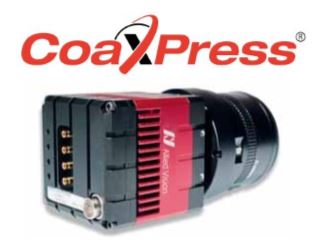

Allied Vision Bonito Pro camera
