Teledyne DALSA Cameras

Teledyne DALSA's family of industrial cameras offer GigE and camera link interfaces, with a wide variety of resolutions and frame rates. Area Scan and line scan cameras area available with the highest performance CMOS and CCD imaging sensors including Sony Pregius and Teledyne DALSA's own proprietary sensors.

Teledyne DALSA's TurboDrive is featured in several camera lines and is used to push past the gigabit Ethernet speed ceiling, allowing a GigE Vision cameras to send pixel information at a rate in excess of 125 MB/s and speeding up line and frame rates beyond the nominal link capacity.

Learn more about TurboDrive.

	Genie Nano GigE and 5GigE Cameras VGA to 25MP GigE to NBaseT interface up to 585 MB/sec TurboDrive up to 985 MB/sec 1Gbps, 2.5Gbps or 5Gbps - auto-negotiate Read More... 90-500MB onboard memory buffer GigE Vision v2.0 compliant -20 to +60 deg. C operating temperature Clock synchronization (IEEE1588) 3-year warranty Starting at <$300 in OEM quantities		Genie Nano-CXP CoaXPress Cameras 16 to 25MP Frame rates from 80 to 120fps CoaXPress link speed 6.25 Gb/s - 4 data lanes Defective pixel replacement Up to 4096 entries Read More... -20 to +60 deg. C operating temperature 3-year warranty For highly cost effective, high-speed, high-resolution imaging
	Genie Nano Camera Link Cameras 5.1 to 25MP 2/3"-APS-H CMOS, Sony/OnSemi 5MP resolution @ 144 fps (IMX250) Extended -20-60 deg. operating temperature Read More... 32MB onboard flash memory GenICam GenCP compliant 3 year warranty		Linea Line Scan GigE and Camera Link Cameras 2K to 16K Up to 80 kHz scan rate, TurboDrive RGB color and monochrome options Lowest cost line scan models Read More... Up to 7um pixel size for high sensitivity M42 to M72-mount, C-/F-mount options On board flat field correction

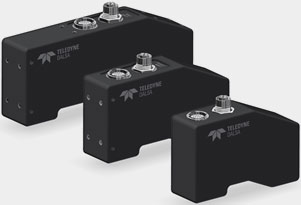

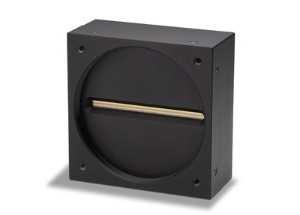

	Piranha HSLink and Camera Link Cameras 2K to 16K Up to 256-stage TDI Up to 200 kHz scan rate 5 to 14um pixel size Read More... 100x more responsivity than traditional line scan cameras M42 to M90 mount, C-/F-mount options On board flat field correction		Z-Trak 3D Laser Profiler Robust, FIR-Peak detector algorithm 10-1000mm Z-range, to 5µm measurement resolution 8.4-1520mm FOV in X, to 8.6µm measurement resolution 24-1500mm working distance range Read More... 210-2200fps profile rate 405-660nm Class 2M/3R, Blue/Red laser options GigE Vision compliant Compact IP67 housing Scheimpflug optimized optical path for high accuracy Includes Sapera LT, Sapera Processing, and Sherlock 8.0 3D SDKs Supports GenICam® and 3rd party software platforms 3-year warranty
	Calibir 640 Uncooled IR Thermal Cameras CIF to VGA Radiometric temperature measurement from -25° C to +125° C 6 to 90 degree FOV Uncooled and shutterless for lowest cost LWIR imaging Read More... Highly compact 29 x 29 x 29mm GigEVision compliant		Falcon2 and Falcon4 Camera Link Cameras 4MP to 86MP resolution 1.1" to 3.2" CMOS global shutter Up to 168 fps High dynamic range and responsivity Read More... Global Shutter 6µm pixels for high sensitivity 1000x anti blooming M42 to M95 optics mount Vertical windowing

Legacy Products
Not recommended for new designs

	Genie GigE Cameras VGA to 2MP 1/3"-2/3" CCD/CMOS, Sony/OnSemi Up to 64 fps Industry standard 44 x 29 x 67mm Read More... Low cost models Clock synchronization (IEEE1588) Direct show software interface GigEVision compliant		Genie TS GigE cameras 2.2 to 12.6MP 2/3"-APS-H CCD/CMOS, CMOSIS, DALSA, OnSemi Up to 70 fps, burst mode Extended -20-60 deg. operating temperature Read More... Up to 512MB onboard memory Clock synchronization (IEEE1588) 3 year warranty
	Spyder Camera Link and GigE Cameras 512 to 4K Dual line technology for high sensitivity Up to 68 kHz scan rate 5 to 14um pixel size Read More... Broadband responsivity up to 408 DN /(nJ/cm2) M42 to M58 mount, C-/F-mount options On board flat field correction

Dalsa Camera
Resources

Genie Nano presentation - Introducing TurboDrive Break Through the GigE Limit

Genie Nano Camera Overview

TurboDrive Spotlight

Why you should use Dalsa’s Turbodrive technology

Introducing the Genie Nano camera

Introducing the Linea line scan camera

Line Scan Primer

GigE Camera Accessories

GigE camera accessories

Learn more...Genie TS combines an advanced CMOS Sensor with a newly optimized camera platform to deliver a powerful, versatile feature set in a GigE Vision camera
