Teledyne Dalsa has continued expanding its Genie Nano GigE vision camera series. Introducing the Nano C4900 GigE camera based on the ON Semiconductor AR1820HS 18 Megapixel Back Side Illuminated (BSI) image sensor with a resolution of 4912 x 3684.
Attractively priced below $600, this just may be the most pixels for your money!

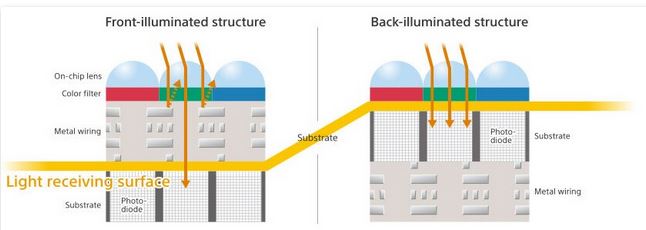

- Back Side Illuminated Technology (BSI): If we were to look at this sensor 5 years ago and see a pixel size of 1.25um, we’d assume that is not light sensitive. On the contrary as ON Semiconductor flipped the pixel upside down! Traditional image sensors were front illuminated where the photo detectors were towards the back of the pixel stack. In turn, there was loss in this method as it interfered with overall light reaching the detector. Back side illuminated sensors have the same elements, but the photo detector was moved forward to not have as much loss due to internal wiring and reflections. BSI technology improves the change of photons being captured from 60 to 90% on average providing high sensitivity even in small pixels!
- Burst Acquisition mode: The Nano C4900 has 200 MB of internal memory allowing image capture at higher rates exceeding the GigE bandwidth for periods of time. This mode is very useful for applications needing a rapid series of images at intervals.
- Rolling Shutter with Global Reset: Rolling shutter image sensors have the benefit of lower cost typically, but are limited to stationary objects due to image distortion. However, thanks to a the global reset feature, distortion is minimized by allowing all the lines to be exposed with read out of the lines there after.
- Extended Operating Temperature range: Nano cameras have an operating case range of -20 to 60 deg. C. This provides higher temperatures versus the competition.
- 1 / 2.3″ Image Format: High resolution cameras typically have relatively large formats which increases the cost of lenses. As the pixels are relatively small, the image format is only 1/2.3 allowing lower cost lenses to be used.
18 Megapixels, 13 frame/sec, high sensitivity, overall low cost creates possibilities!
Applications may include:
- Low light, high magnification medical applicications
- Industrial Metrology
- Intelligent traffic solutions (ITS)
- Microscope applications
- Unmanned Aerial
Need high resolution, global shutter cameras still in a compact format? Dalsa is now shipping the following new high resolution cameras:
Dalsa Nano M4020 (IMX304) – 12MP, 4112 x 3008, 20 fps
Dalsa Nano M4030 (IMX267) – 9MP, 4112 x 2176, 30 fps
See the complete Teledyne Nano camera line here
As the old saying goes, “A system is only as strong as its weakest link”. As a reminder, do not let your cables be your weak link!
Be sure to use our new industrial GigE Cables – Click here NOW!
