HCN130x0 Hypercentric Nano lenses for cavity inspection

Nano hypercentric lenses designed for the inspection of small cavities and hollow parts with diameters from 0.75 to 10 mm. That’s the diameter of a drinking straw – and narrower!

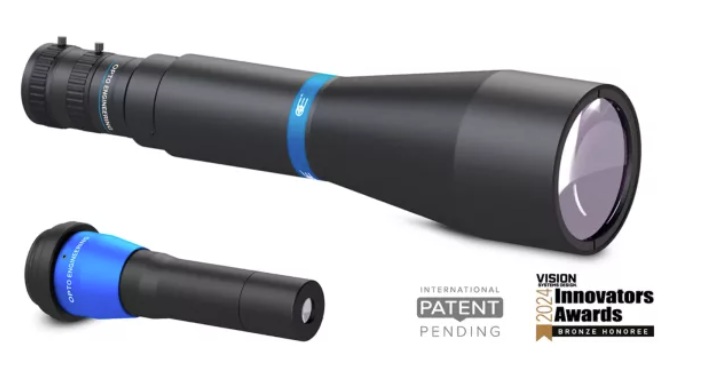

HCN13010 and HCN13040 Nano Hypercentric lenses for small cavities – Courtesy Opto Engineering

Hypercentric lenses once more with feeling

Recently we introduced Opto Engineering’s HC hypercentric 360° lenses. They image cavity interiors from the outside by utilizing a specialized optical path that allows light to pass through bottlenecks and narrow openings. The variable iris provides maximum flexibility and a wide viewing angle to clearly image the fine details of the object. Their unique design facilitates complete internal surface inspection with no need to use a probe, rotate the object or use a complex multi-camera system.

contact us

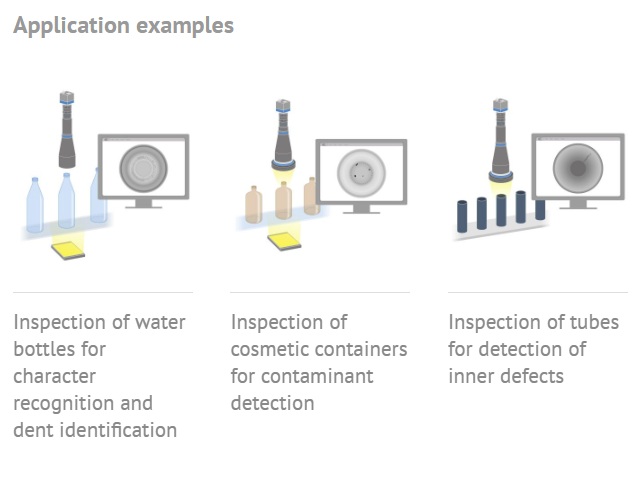

HC 360° Series applications across whole lens family

Courtesy Opto Engineering

HCN Hypercentric nano lenses inspect tiny cavities from the outside

Consider cavities as small as 0.75 mm (0.029 in) ranging up to 10 mm (0.39 in), for items in the order of a drinking straw diameter (and smaller). These interiors can be inspected from the outside looking in, with the HCN Series lenses.

2 minute overview of lenses for hollow-part inspection – Courtesy Opto Engineering
