Effilux line scan lights used with a line scan camera are ideal for short and long range line scan inspection applications. They are avaiable in a number of line scan types that includes high power LED line lights, line scan bar line lights, line scan backlight line lights, and line lights with IP67 protection.
See the entire selection of Effilux LED lighting for machine vision.

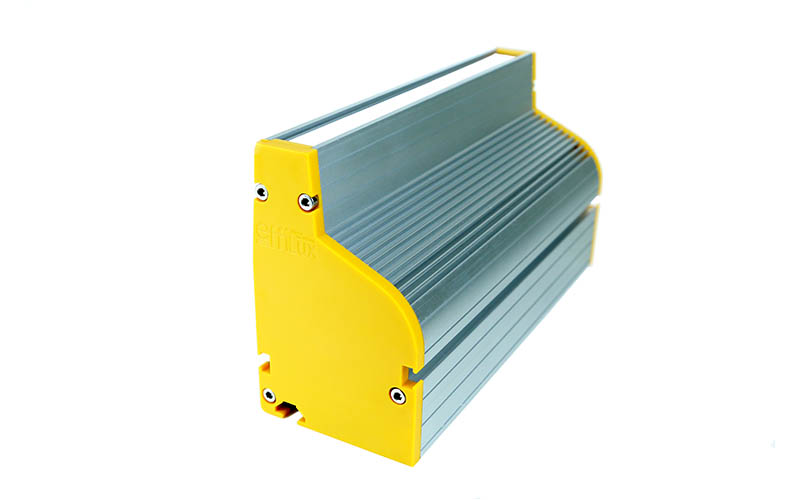

The Effilux EFFI-Line LED line light provides very powerful and uniform illumination. It can be used in conjunction with line scan camera for short and long range line scan inspection applications such as quality control, surface inspection of wood, plastic, tires, steel, solar panels, and more. EFFI-line line lights have an integrated driver with an AIC function to control the output power. With overdrive mode power can be increased by 300% vs continuous mode. EFFI-line line lights are available with a full range of colors (UV, blue, green, red, IR, white), and in lengths from .1 to 6 meters.

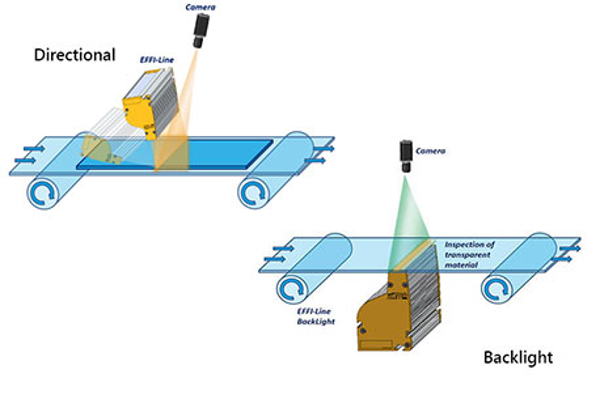

EFFI-line used with directional light and backlighting

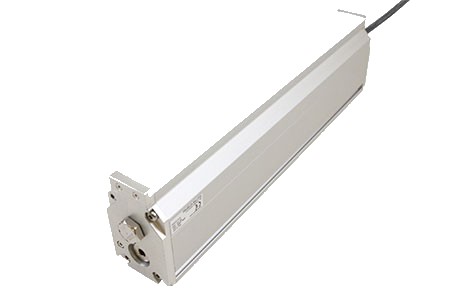

EFFI-Line3 is a new generation of LED line lights designed for line scan applications and possesses the features that are required by today's demanding line scan applications.
The EFFI-Line3 line light is equipped with a focusing lens instead of the collimation one. The focusing lens makes it possible to boost the power capacities and reach a maximum of 2.7MLux at short working distances. This versatile line light with very high homogeneity and very high power has a continuous or strobe light illumination mode and works over a wide range of working distances. The integrated driver with an AIC function makes it easy to control the output power.

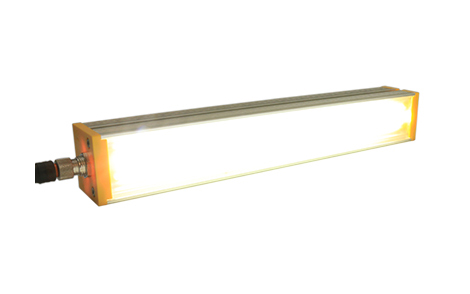

The Effilux EFFI-Flex line scan bar light is a bar type LED line light that features an adjustable beam angle, a variety of diffusers and optical accessories. It is commonly used for line scan application when used with a line scan camera. See the EFFI-Flex LED bar light for more information.

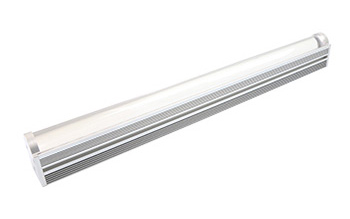

The EFFI-Cylindrical is an EFFI-Flex light LED bar / line light with an optional cylindrical lens for linear lighting. See the EFFI-Flex LED bar light for more information.
The Effilux EFFI-Flex-BL is an LED bar & backlight that is commonly used for line scan application when used with a line scan camera. See the EFFI-Flex-BL LED bar light / backlight on the bar lights page.
The EFFI-SBL Backlight is a compact LED backlight with IP67 protection that is commonly used for line scan applications when used with a line scan camera. See the EFFI-Flex-SBL LED backlight on the backlights page.
