Automation Technology 3D Sensors & Infrared Thermal Cameras

Automation Technology 3D imaging and thermal imaging sensors include the latest technology 3D laser profilers and infrared camera systems. The Automation Technology vision 3D sensor product line includes CS high performance 3D Sensors, MCS Modular 3D Sensors, XCS high precision 3D sensors, ECS 3D sensors, and IRSX-I Series Infrared Smart Cameras.

3D Laser Profiler Sensors

Automation Technology 3D laser profiler sensors feature high-speed and high-precision resolution to produce laser triangulation measurements with absolute accuracy and precision. The 3D laser profilers are factory calibrated and support the latest 3D GigE Vision / GenICam 3D with 1 Gbit/s industry standards.

IRSX-I IR Infrared Smart Camera

The IRSX-I IR Infrared Smart Camera is an all-in-one solution. The camera can be easily set up for thermal monitoring tasks without programming skills with the web based interface. IRSX-I infrared smart cameras support multiple industrial protocols including HTTPS, Modbus TCP, Profinet, OPC-UA, and MQTT to facilitate direct communication with your automation and process control equipment. With the Camera Simulator software that's included, you can simulate your live environment, create new jobs or make changes, and test them before you transfer the job to your live environment. The IRSX-I camera supports the GigE Vision / GenICam standard.

Automation Technology CS Series 3D sensors
CS Series - High Performance 3D Sensors
  • Factory calibrated 3D sensors
  • Advanced 3D technology (HDR-3D)
  • Extremely high-speed and high-precision resolution
  • Profile speeds up to 200 kHz with a 3D data rate up to 128 million 3D points per second

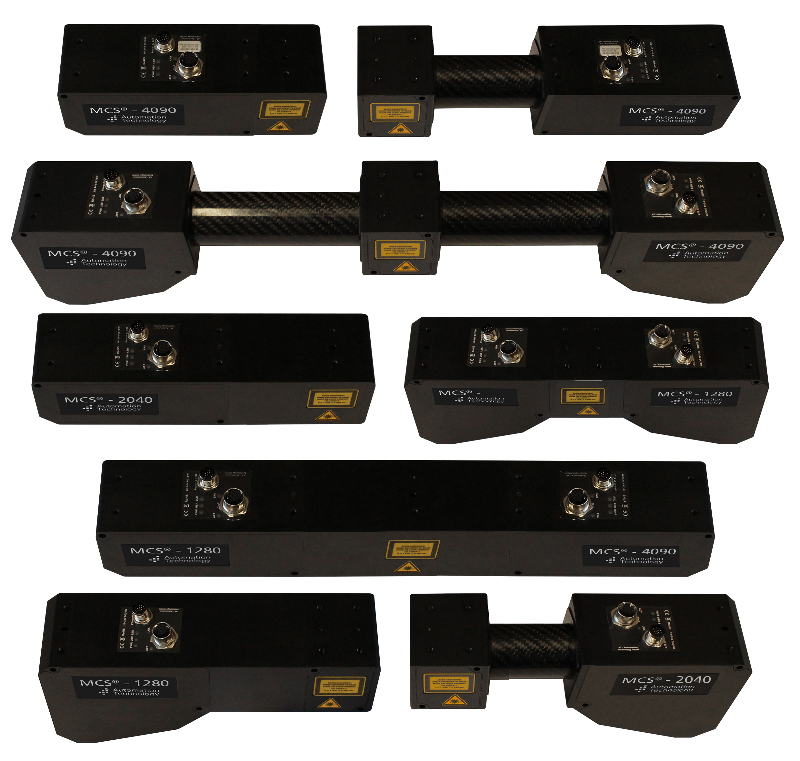

Automation Technology MCS Series compact 3D sensor
MCS Series - Modular 3D Sensors
  • Modular compact 3D sensors configured for your specific application
  • Factory calibrated 3D sensors
  • Optional dual-head sensor for higher measurement quality and occlusion-free 3D scans
ECS Series - ECO 3D Sensors
  • Excellent price-performance ratio
  • 2048 resolution
  • Single head sensor
  • Selected field of views (FoVs): 100 / 160 mm

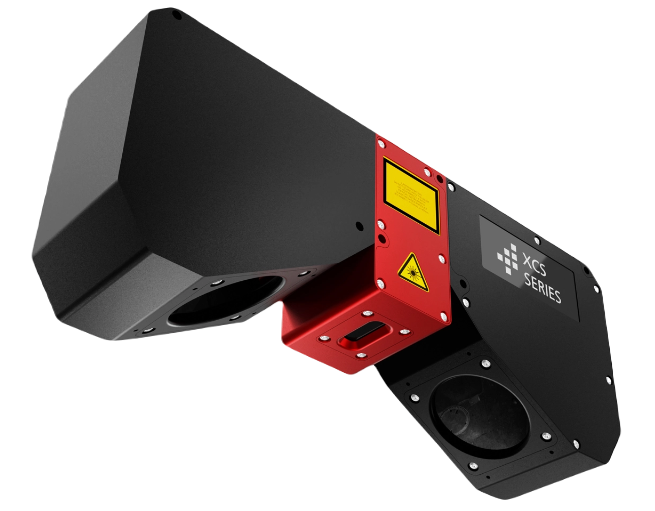

Automation Technology XCS Series 3D sensor
XCS Series - High Precision 3D Sensors
  • Profile speeds up to 140 kHz
  • Optional dual head for 3D scan results without occlusion
  • Field of view of up to 53 mm
  • High precision and detection of the smallest defects
Automation Technology IRSX Series infrared thermal smart cameras
IRSX-I Series IR Smart Infrared Cameras
  • All-in-one solution for thermal machine vision
  • User-friendly web interface for configuration and visualization
  • Thermal measurement range -10°C to +550°C
