IDS Imaging Industrial Cameras
Visible and NIR Cameras – USB 2.0, USB 3.0, USB 3.1 and GigE

IDS Imaging Development Systems is a highly accomplished manufacturer of industrial cameras and components for industrial inspection, robotics, medical and scientific imaging, kiosks, and many other demanding automated imaging and machine vision applications. Offering VGA to 18MP resolution cameras equipped with sensors from such manufacturers as Sony, Aptina, ON Semi, CMOSIS, e2v, IDS is well known for going the “extra mile” when it comes to unique and custom OEM camera performance features, and offers an SDK (Software Development Kit) and visualization utilities that are often considered to be some of the best in the industrial camera industry.

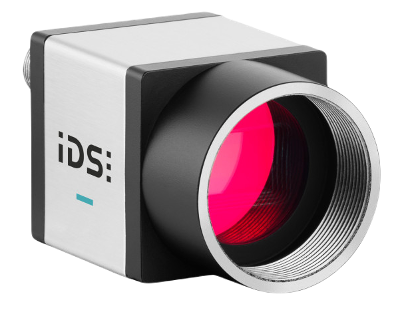

	uEye CP USB 3.0 Cameras VGA to 18MP Sony/ON Semi/e2V/CMOSIS CMOS sensors 1/3.6" to 1" sensor format USB 3.0, 420 MB/s data transfer 128MB image memory for multi-camera flexibility Read More... C-mount metal housing, 29x29x29mm w/ C-mount Hirose-6/-8 (Rev.1/Rev.2) for GPIO		uEye LE USB 3.0/3.1 Cameras VGA to 18MP Sony Pregius & Starvis / On-Semi /e2V C / CS / S mount to bare board options High Quantum Efficiencies (77% QE) and Dynamic range (< 75db) High frame rates - 200 fps+ Read More... Long exposure options

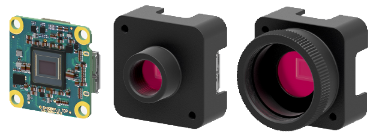

	uEye CP GigE Cameras VGA to 6.4MP Sony/ON Semi/e2V/CMOSIS CMOS sensors 1/3.6" to 1" sensor format Integrated PoE & FPGA/LUT 128MB image memory for multi-camera flexibility Read More... C-mount metal housing, 29x29x29mm w/ C-mount Hirose-6/-8 (Rev.1/Rev.2) for GPIO Some models GigEVision compliant		uEye XLE USB 3.0 Cameras USB3 Vision USB Type-C connector GenICam compliant Board-level and housed options Read More... C,CS,S-mount and no lens holder options
	uEye XCP USB 3.0 Cameras USB3 Vision USB Type-C connector GenICam compliant C-mount Read More... Smallest C-mount on market 2 - 8MP Up to 73fps		uEye LE USB 3.1 Gen1 Cameras with Autofocus 6-18MP USB 3.1 Type C cameras with autofocus Up to 58fps, 22fps for 18MP 1/2.3 to 1/1.8" sensor options w/selectable 12-50mm liquid lenses Built-in support for Corning® Varioptic® Variable Focus Liquid Lenses Read More... Small board-level 36mm x 36mm x 19.9mm, no housing

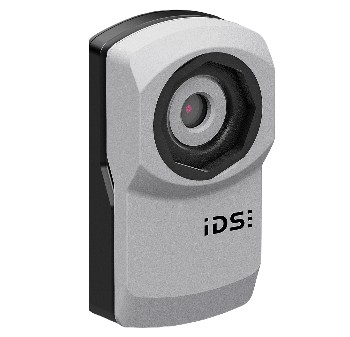

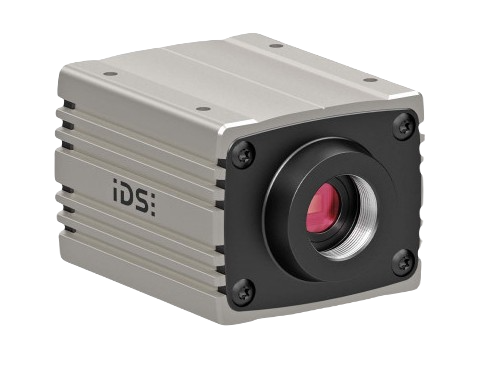

	uEye Warp10 10GigE Cameras 10GigE vision interface Ultra fast high speed transmission Downward compatible with 1GigE, 2.5GigE and 5GigE Capture moving objects without loss of detail or blur Read More... High frame rates Noise-free image reproduction Long-distance transfer up to 100 metres cable length without repeaters or optical extenders Easy to integrate		uEye XC USB 3.0 Autofocus Cameras Excellent low-light performance and low pixel noise GenICam-compliant Compact low weight autofocus camera True-to-detail images Read More... Back Side Illumination (BSI) technology 24x digital zoom, auto white balance and color correction Screwable USB Micro-B connector
	uEye SE Rev 4 GigE VGA to 12.3MP ON Semi/e2V CMOS sensors 1/3.6" to 1.1" sensor format 120MB image memory for multi-camera flexibility Integrated PoE & FPGA/LUT Read More... C-mount metal housing, 34 x 44 x 47mm with C-mount Board level available		UEye XS USB 2.0 Autofocus Cameras 5MP autofocus USB 2.0 camera 2592x1944 @ 15 fps 1/4" sensor w/ 60 degree FOV Smallest 21.5 x 23 x 26.5mm magnesium housing Read More... Ideal for kiosk, POS, and embedded systems
	uEye LE GigE Board-Level Cameras 1.3 to 5MP ON Semi/e2V CMOS sensors 1/2" to 1/1.8" sensor format M12/C/CS/No-Mount board level Lowest cost GigE models Read More... 45 x 45mm board level Non-PoE		uEye SE USB 3.1 Gen1 Type C Cameras 5 to 12MP Sony IMX CMOS sensors 2/3" to 1.1" sensor format C-mount metal housing, 29x29x29mm w/ C-mount USB 3.1 Gen1 w/ Type C connector Read More... C-mount metal housing, 34 x 44 x 47mm Hirose-8 for GPIO

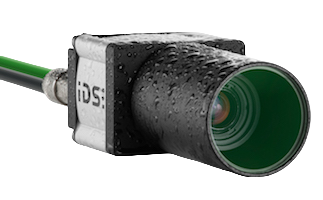

	uEye ML USB 3.0/3.1 Cameras 1 to 5MP ON Semi/e2V CMOS sensors 1/3.6" to 1/1.8" sensor format C/CS-Mount housed Lowest cost USB 3.0 models with GPIO Read More... 47 x 46 x 24mm housed, 36 x 36mm board level USB 3.1 Gen 1 with Type C connectors USB3 Vision compliant versions		uEye FA IP65/67 GigE Cameras VGA to 12.3MP Sony/ON Semi/e2V CMOS sensors 1/3.6" to 1" sensor format 120MB image memory for multi-camera flexibility IP 65/67 rated for dust/mist environments Read More... Integrated PoE & FPGA/LUT C-mount metal housing, 41 x 53 x 42.7mm with C-mount Binder 712 for GPIO, M12 for GigE, drag chain GigE Vision compliant versions

Legacy Products
Not recommended for new designs

	uEye SE GigE Cameras VGA to 10MP Sony/ON Semi/e2V CMOS sensors 1/3.6" to 1/1.8" sensor format 60MB image memory for multi-camera flexibility Non-PoE Read More... C-mount metal housing, 34 x 44 x 50mm with C-mount Hirose-6 for GPIO		uEye LE USB 2.0 Cameras VGA to 10.5MP ON Semi/e2V CMOS sensors 1/3" to 1/1.8" sensor format C/CS-Mount ABS housed & M12/No-mount board level Lowest cost USB models Read More... 48.6 x 44 x 25.6mm housed, 36 x 36mm board level UVC version available for OS flexibility
	uEye SE USB 2.0 Cameras VGA to 10.5MP ON Semi/e2V CMOS sensors 1/3" to 1/1.8" sensor formats 32MB/sec USB 2.0 image acqusition rate C-mount metal housing, 34 x 32 x 41.3mm Read More... Micro D-sub for GPIO		uEye ML USB 2.0 Cameras 1.3 to 2MP e2V CMOS sensors 1/1.8" sensor format C/CS-Mount housed Lowest cost USB 2.0 models with GPIO Read More... 44 x 44 x 28mm housed, 36 x 36mm board level Hirose-6 for GPIO
	uEye RE GigE Cameras VGA to 10.5MP ON Semi/e2V CMOS sensors 1/3" to 1/1.8" sensor format 60MB image memory for multi-camera flexibility IP 65/67 rated for dust/mist environments Read More... Integrated PoE & FPGA/LUT C-mount metal housing, 41 x 53 x 40mm with C-mount Binder 712 for GPIO, M12 for GigE, drag chain
