LUCID Vision Labs Helios2 3D Time-of-Flight (ToF) Cameras
Industrial 3D ToF and RGB-D Cameras for Precise Depth Sensing and Real-Time 3D Imaging

LUCID Vision Labs Helios2 3D Time-of-Flight (ToF) cameras deliver real-time depth and 3D point cloud data for industrial machine vision, robotics, logistics, inspection, measurement, and automation applications. Built around the Sony DepthSense IMX556PLR global shutter CMOS sensor, Helios2 cameras provide 640 × 480 (0.3 MP) depth resolution with on-camera 3D processing in rugged IP67-rated housings.

The Helios2 family includes multiple configurations optimized for different 3D imaging requirements. Helios2+ cameras add on-camera HDR and High-Speed modes for challenging high-contrast and dynamic scenes. Helios2 Narrow and Helios2+ Narrow models provide a focused 31° × 24° field of view for tighter point clouds and reduced multipath errors, while Helios2 Wide expands coverage with a 108° × 78° field of view. Helios2 Ray uses 940 nm VCSEL illumination for improved performance in outdoor and sunlight conditions.

Helios2 Chroma RGB-D cameras combine a Helios2 ToF depth camera and LUCID Triton color camera in a single factory-assembled and precision-calibrated IP67 unit, providing aligned color and depth data for generating colorized 3D point clouds without requiring user calibration.

All Helios2 cameras feature GigE Vision connectivity, GenICam 3D support, industrial M12 connectors, and integration with LUCID Arena SDK software.

Helios2+ ToF 3D Camera with IP67 protection

Helios2+ ToF 3D Cameras

High-Speed ToF modes
High dynamic range
Excellent 3D precision due to the high light transmission and high dynamic range
Frame rate: 30 fps (Normal), 10 fps (HDR), 103 fps (High-Speed)

Helios2 Wide ToF 3D wide-angle camera

Helios2 Wide ToF 3D Cameras

4 times the viewable area at the same working distance vs Helio2 & Helio2+
Lens field of view: 108° x 78°
Frame rate:30 fps (All Distance Modes), 10 fps (All Distance Modes @ Exposure 3000 µs)
Exposure presets: 187.5, 750, 3000 µs

Helios2 Wide ToF 3D Camera - quadruples the viewable area

Helios2 ToF 3D Cameras

Lens field of view: 69° x 51°
Frame rate: 30 fps (All Distance Modes)
Working distance: 0.3 - 8.3 meters
Exposure presets: 62.5, 250, 1000 µs

Helios2 Ray ToF 3D Cameram for indoor and outdoor use

Helios2 Ray ToF 3D Cameras

Designed for high-performance operation in outdoor lighting conditions
Sony DepthSense IMX556 CMOS back-illuminated ToF image sensor
940nm VCSEL laser diodes
Working distances from 0.3 m to 8.3 m

Helios2 Narrow ToF 3D Camera - quadruples the viewable area

Helios2 Narrow ToF 3D Cameras

Narrow field of view 31° x 24°
Frame rate: 30 fps
Working distance: 0.3 - 8.3 meters
Manual, 3 settings: 62.5 μs, 250 μs or 1000 μs

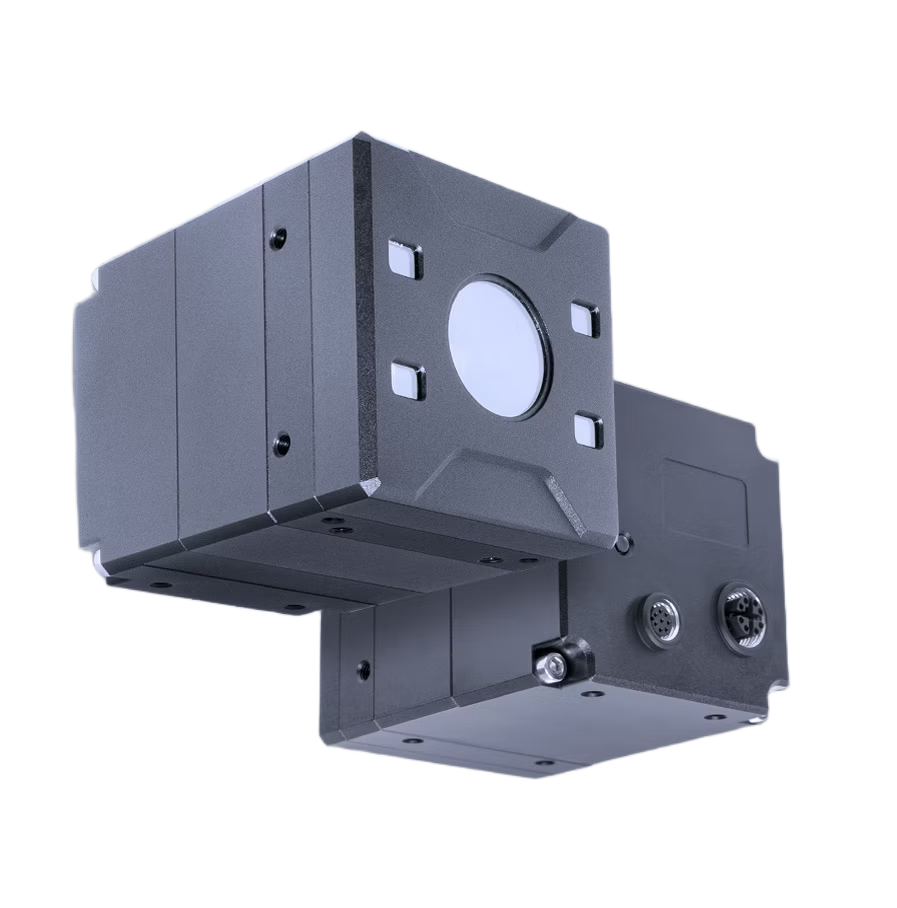

Helios2+ Narrow ToF high speed HDR 3D Camera

Helios2+ Narrow ToF HDR 3D Cameras

0.3 MP, 640 x 480 depth resolution
Narrow 31° x 24° field of view
0.3 to 8.3 m working distance

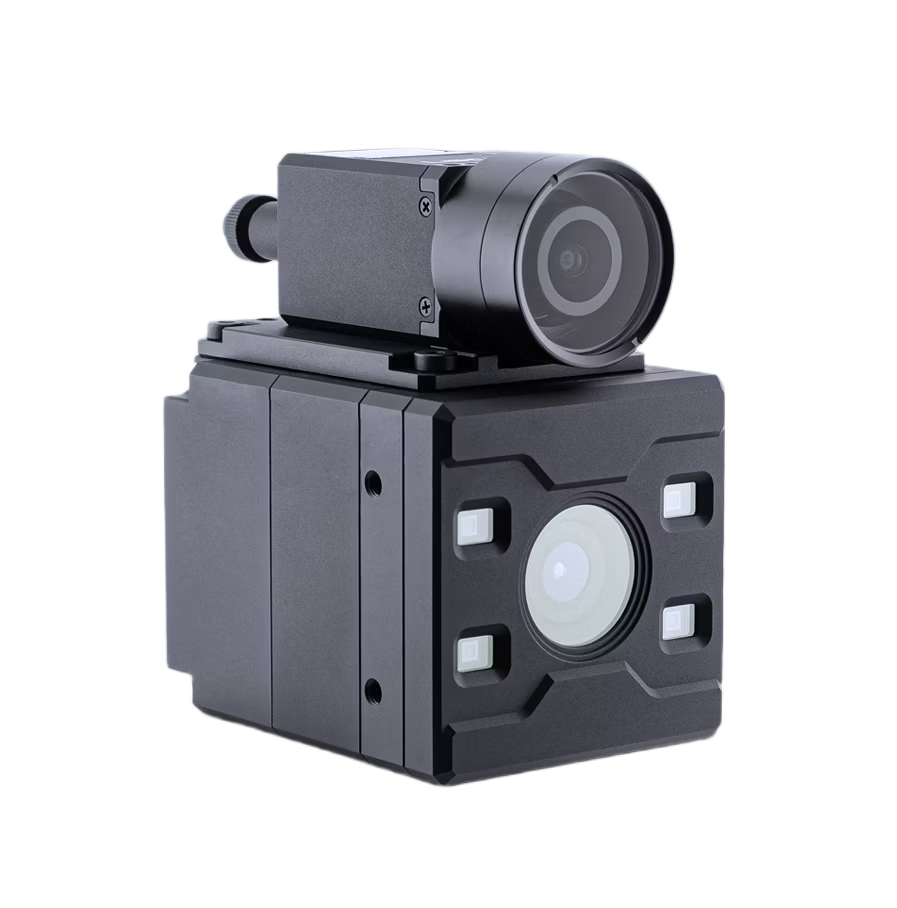

Helios2 Chroma (RGB-D) ToF Camera

Helios2 Chroma ToF RGB-D Camera

Factory-calibrated IP67-rated RGB-D camera
Precisely aligned color and 3D depth data
Real-time colorized 3D point clouds
Sony DepthSense IMX556PLR ToF sensor

Compare Helios2 ToF Camera Models

Specification	Helios2+ Narrow	Helios2 Narrow	Helios2+	Helios2	Helios2 Ray	Helios2 Wide
Part Number	HPN003S-100/300	HTN003S-100/300	HTP003S-001	HLT003S-001	HTR003S-001	HTW003S-001
Sensor	Sony IMX556PLR	Sony IMX556PLR	Sony IMX556PLR	Sony IMX556PLR	Sony IMX556PLR	Sony IMX556PLR
Resolution	640 × 480, 0.3 MP	640 × 480, 0.3 MP	640 × 480, 0.3 MP	640 × 480, 0.3 MP	640 × 480, 0.3 MP	640 × 480, 0.3 MP
VCSEL Wavelength	850 nm	850 nm	850 nm	850 nm	940 nm	850 nm
Working Distance	0.3–8.3 m Normal/HDR 0.3–2.5 m High-Speed	0.3–8.3 m	0.3–8.3 m Normal/HDR 0.3–2.5 m High-Speed	0.3–8.3 m	0.3–8.3 m	0.3–8.3 m
Field of View	31° × 24°	31° × 24°	67° × 51°	67° × 51°	67° × 51°	108° × 78°
HDR Mode	Yes	No	Yes	No	No	No
High-Speed Mode	Yes	No	Yes	No	No	No
Frame Rate	30 fps Normal 10 fps HDR Up to 103 fps High-Speed	30 fps	30 fps Normal 10 fps HDR Up to 103 fps High-Speed	30 fps	30 fps	30 fps
Dimensions	60 × 60 × 77.5 mm	60 × 60 × 77.5 mm	60 × 60 × 77.5 mm	60 × 60 × 77.5 mm	60 × 60 × 77.5 mm	60 × 60 × 77.5 mm
Weight	398 g	390 g	398 g	398 g	398 g	390 g
Interface	M12 GigE Vision	M12 GigE Vision	M12 GigE Vision	M12 GigE Vision	M12 GigE Vision	M12 GigE Vision
IP Rating	IP67	IP67	IP67	IP67	IP67	IP67

Not sure which Helios2 camera is right for your application? Contact us to discuss your 3D imaging requirements and find the best model for your application.

Compare Helios2 Chroma RGB-D Camera Models

Specification	Helios2+ Chroma	Helios2 Chroma	Helios2 Ray Chroma	Helios2 Wide Chroma
Part Number	HTP-RGB-001	HLT-RGB-001	HTR-RGB-001	HTW-RGB-001
ToF Camera	Helios2+	Helios2	Helios2 Ray	Helios2 Wide
Depth Sensor	Sony IMX556PLR	Sony IMX556PLR	Sony IMX556PLR	Sony IMX556PLR
Depth Resolution	640 × 480, 0.3 MP	640 × 480, 0.3 MP	640 × 480, 0.3 MP	640 × 480, 0.3 MP
RGB Camera	Triton TRI032S-C	Triton TRI032S-C	Triton TRI032S-C	Triton TRI122S-C
RGB Sensor	Sony IMX265	Sony IMX265	Sony IMX265	Sony IMX226
RGB Resolution	3.2 MP	3.2 MP	3.2 MP	12.2 MP
ToF Field of View	67° × 51°	67° × 51°	67° × 51°	108° × 78°
VCSEL Wavelength	850 nm	850 nm	940 nm	850 nm
Working Distance	0.3–8.3 m Normal/HDR 0.3–2.5 m High-Speed	0.3–8.3 m	0.3–8.3 m	0.3–8.3 m
HDR Mode	Yes	No	No	No
High-Speed Mode	Yes	No	No	No
Depth Frame Rate	30 fps Normal 10 fps HDR Up to 103 fps High-Speed	30 fps	30 fps	30 fps
RGB Frame Rate	35.4 fps @ 3.2 MP	35.4 fps @ 3.2 MP	35.4 fps @ 3.2 MP	9.1 fps @ 12.2 MP 29.1 fps with 2×2 binning
Best Suited For	HDR and high-speed RGB-D imaging	General-purpose indoor RGB-D imaging	Outdoor and sunlight RGB-D imaging	Wide-FOV RGB-D imaging
Dimensions	60 × 60 × 79 mm	60 × 60 × 79 mm	60 × 60 × 79 mm	60 × 60 × 79 mm
Weight	527 g	527 g	527 g	527 g
Interface	Dual M12 GigE	Dual M12 GigE	Dual M12 GigE	Dual M12 GigE
IP Rating	IP67	IP67	IP67	IP67
