Power I/O Camera Cables

Power IO cables from 1stVision are available in various configurations and used for power and/or I/O for industrial cameras. These high quality cables are produced by machine vision industry leading manufacturers, such as Allied Vision, Teledyne DALSA, and IDS Imaging.

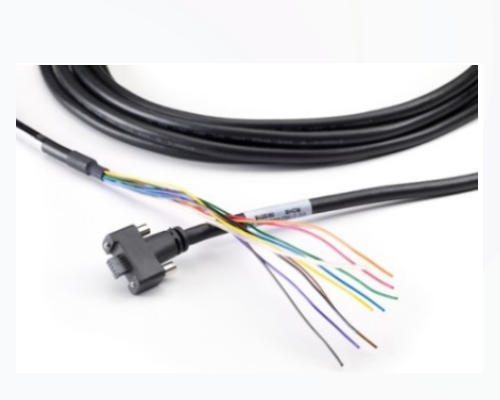

SAMTEC TFM-105 type 10-pin female to Tinned Leads I/O/Power Cable - Teledyne DALSA Genie Nano Cameras - CB-NANO-IO-xxM


SAMTEC TFM-105 type 10-pin female to Tinned Leads I/O/Power Cable - Teledyne DALSA Genie Nano Cameras - CB-NANO-IO-xxM

SAMTEC TFM-105 type 10-pin female to tinned leads I/O/power cable, flying leads, 1/2/3/5m lengths, custom lengths of 10/15/30m are available upon request (for powering PoE cameras when no PoE network is available)

Note: PINOUTS BY CONDUCTOR COLOR HAVE CHANGED - Please refer to the document sheet inside of the cable wrapper for more details.

Technical Diagram: Cable diagram




JST NSHR-09V-S type 9-pin female to Tinned Leads I/O/Power Cable - only for Teledyne Lumenera LT-Lx1x-xxxxxx USB3.1 Cameras - CB-LUMLT-JST-IO-06


JST NSHR-09V-S type 9-pin female to Tinned Leads I/O/Power Cable - only for Teledyne Lumenera LT-Lx1x-xxxxxx USB3.1 Cameras - CB-LUMLT-JST-IO-06

JST NSHR-09V-S type 9-pin female to tinned leads I/O/power cable (p/n: La4000PAFL) , flying leads, 6" length.

Note: PINOUTS BY CONDUCTOR COLOR HAVE CHANGED - Please refer to the document sheet inside of the cable wrapper for more details.




Hirose-8 HR-25 type 8-pin female to Tinned Leads I/O/Power Cable - only for Teledyne Lumenera LT-Lx0x-xxxxxx USB3.1 Cameras - CB-LUMLT-HIR8-IO-06


Hirose-8 HR-25 type 8-pin female to Tinned Leads I/O/Power Cable - only for Teledyne Lumenera LT-Lx0x-xxxxxx USB3.1 Cameras - CB-LUMLT-HIR8-IO-06

Hirose-8 HR-25 type 8-pin female to tinned leads I/O/power cable (p/n: La2000PAFL), flying leads, 6" length.

Note: PINOUTS BY CONDUCTOR COLOR HAVE CHANGED - Please refer to the document sheet inside of the cable wrapper for more details.

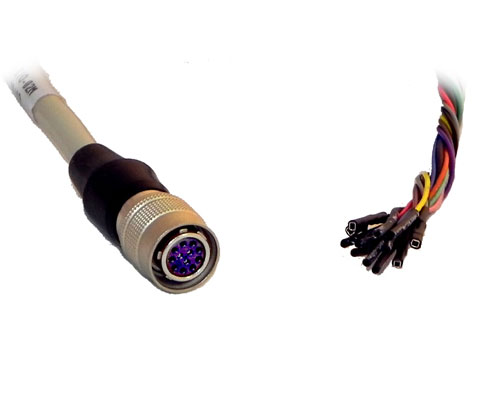

Hirose 12-pin Female to Tinned Leads I/O/Power Cable - JAI (various) & Dalsa Genie, Allied Vision (various) Cameras - CB-I/O-xxM


Hirose 12-pin Female to Tinned Leads I/O/Power Cable - JAI (various) & Dalsa Genie, Allied Vision (various) Cameras - CB-I/O-xxM

Hirose 12-pin female to tinned leads I/O/power cable, 8" flying leads, 2/3/5/10m lengths, custom lengths upon request with volume commitment (for powering PoE cameras when no PoE network is available)

Note: PINOUTS BY CONDUCTOR COLOR HAVE CHANGED - Please refer to the document sheet inside of the cable wrapper for more details.

Technical Diagram: Black I/O Cable - Rev 7 effective 3/15/16 Grey I/O Cable - Legacy cables

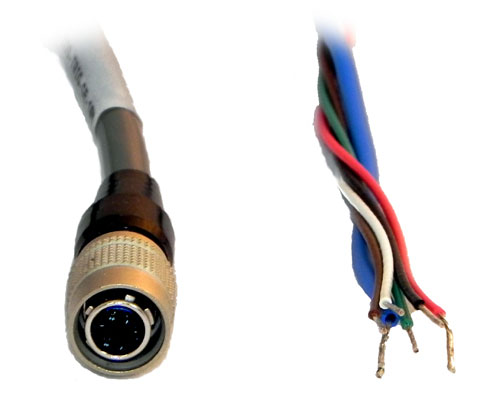

Hirose 6-pin Female to Tinned Leads I/O/Power Cable -  IDS CP1/ML & Allied Vision Mako USB Cameras - CB-HIR6-I/O-xxM


Hirose 6-pin Female to Tinned Leads I/O/Power Cable - IDS CP1/ML & Allied Vision Mako USB Cameras - CB-HIR6-I/O-xxM

Hirose 6-pin female to tinned leads I/O/power cable, 8" flying leads, 1/2/5/10m lengths, custom lengths upon request with volume commitment, FKA P/N CB-IDS-TRIG-GE-xxM (for powering PoE cameras when no PoE network is available)

Note: PINOUTS AND CONDUCTOR COLOR ARE SUBJECT TO CHANGE.

Technical Diagram: Grey I/O Cable

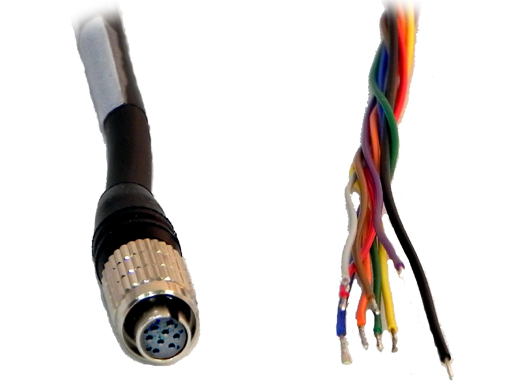

Hirose 8-pin Female to Tinned Leads I/O/Power Cable - IDS CP2 & Allied Vision Mako GigE Cameras - CB-HIR8-I/O-xxM


Hirose 8-pin Female to Tinned Leads I/O/Power Cable - IDS CP2 & Allied Vision Mako GigE Cameras - CB-HIR8-I/O-xxM

Hirose 8-pin female to tinned leads I/O/power cable, 8" flying leads, 1/2/3/5/10m lengths, custom lengths upon request with volume commitment (for powering PoE cameras when no PoE network is available)

Note: PINOUTS AND CONDUCTOR COLOR ARE SUBJECT TO CHANGE.

Technical Diagram: Black I/O Cable
