Euresys Frame Grabbers for Machine Vision
High-performance CoaXPress and Camera Link frame grabbers
for demanding machine vision and image acquisition applications

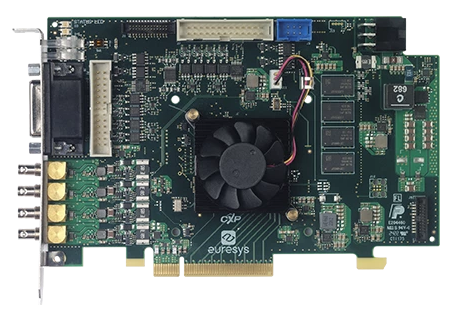

Euresys Frame Grabber

Euresys frame grabbers provide high-speed, reliable image acquisition for demanding machine vision, industrial inspection, automation, and scientific imaging applications. Designed for high-performance area scan and line scan cameras, Euresys frame grabbers combine high-bandwidth data transfer with advanced camera triggering, synchronization, digital I/O, and camera control.

Available for CoaXPress, CoaXPress-over-Fiber cameras, and Camera Link cameras, Euresys frame grabbers support applications including semiconductor and electronics inspection, high-speed production inspection, metrology, printing, sorting, and scientific imaging. High-performance DMA enables efficient image transfer to host memory while minimizing CPU overhead.

Euresys Coaxlink frame grabbers support CoaXPress and CoaXPress-over-Fiber cameras, with configurations offering up to eight CoaXPress connections for high-resolution, high-frame-rate, and multi-camera imaging systems. Coaxlink models include CXP-6 and CXP-12 solutions as well as high-bandwidth CoaXPress-over-Fiber options.

Euresys Grablink frame grabbers provide high-performance image acquisition for Camera Link cameras, along with advanced triggering, synchronization, and digital I/O for integration with encoders, sensors, and lighting controllers. Euresys ECCO (Extended Camera Link Cable Operation) technology enables longer Camera Link cable lengths with supported cameras and configurations.

Contact us for help selecting the frame grabber that best meets the camera interface, bandwidth, synchronization, and image acquisition requirements of your machine vision application.


Euresys Camera Link and CoaXPress Frame Grabber Features

  • High-performance PCIe image acquisition for machine vision systems
  • Support for CoaXPress and Camera Link cameras
  • Compatible with high-resolution area scan and line scan cameras
  • High-speed DMA image transfer with low CPU overhead
  • Advanced camera triggering and synchronization
  • Digital I/O for encoders, sensors, triggers, and lighting control
  • Multi-camera acquisition capabilities on supported models
  • Camera power including PoCXP and PoCL on supported models
  • C2C-Link synchronization on supported frame grabbers
  • eGrabber software with Memento event logging and diagnostics
  • CustomLogic FPGA programming on some models

  Manufacturer Model Interface
 Video Inputs
 Connector
 Bus
 Features
get a quote for this productEuresysCoaxlink Duo CXP-12CoaXPressTwo CoaXPress CXP-12 connectionsTwo micro-BNC 75 Ohms (HD-BNC) CXP-12PCIe 3.0 (Gen 3) x42,500 MB/s maximum acquisition bandwidth
3,300 MB/s sustained PCIe bus bandwidth
CXP-12 maximum link speed
1 GB onboard memory
10 digital lines
get a quote for this productEuresysCoaxlink Mono CXP-12 LHCoaXPressOne CoaXPress CXP-12 connectionsOne micro-BNC 75 Ohms ( HD-BNC) CXP-12PCIe 3.0 (Gen 3) x41,250 MB/s maximum acquisition bandwidth
3,300 MB/s sustained PCIe bus bandwidth
CXP-12 maximum link speed
512 MB onboard memory
10 digital lines
get a quote for this productEuresysCoaxlink OctoCoaXPressOne 1- or 2- or 4- or 8 connections8 x DIN 1.0/2.3 75 Ohms coaxial receptaclesPCIe 3.0 (Gen 3) x85,000 MB/s maximum acquisition bandwidth
6,700 MB/s sustained PCIe bus bandwidth
CXP-6 maximum link speed
2 GB onboard memory
10 digital lines
CustomLogic FPGA programming capability
get a quote for this productEuresysCoaxlink Octo CXP-12CoaXPressOne 1- or 2- or 4- or 8-connections8 x Micro-BNC 75 Ohms coaxial receptaclesPCIe 4.0 (Gen 4) x810,000 MB/s maximum acquisition bandwidth
13,500 MB/s sustained PCIe bus bandwidth
CXP-12 maximum link speed
8 GB onboard memory
10 digital lines
get a quote for this productEuresysCoaxlink QSFP+CoaXPressEnhanced Quad Small Form-factor Pluggable (QSFP+) portPCIe Gen1 x4PCIe 3.0 (Gen 3) x85,000 MB/s maximum acquisition bandwidth
6,700 MB/s sustained PCIe bus bandwidth
CoaXPress-over-fiber
CXP-12 maximum link speed
4 GB onboard memory
20 digital lines
CustomLogic FPGA programming capability
get a quote for this productEuresysCoaxlink QSFP28CoaXPressOne 1-, 2-, or 4-connection CoaXPress-over-Fiber cameraQSFP28 port (QSFP+ 28Gb/s 4X Pluggable Transceiver)PCIe 4.0 (Gen 4) x8 12,500 MB/s maximum acquisition bandwidth
13,500 MB/s sustained PCIe bus bandwidth
CoaXPress-over-fiber
CXP-31 maximum link speed
8 GB onboard memory
20 digital I/O lines
get a quote for this productEuresysCoaxlink Quad CXP-12CoaXPressOne 1- or 2- or 4-connectionsFour micro-BNC 75 Ohms (HD-BNC) CXP-12PCIe 3.0 (Gen 3) x85,000 MB/s maximum acquisition bandwidth
6,700 MB/s sustained PCIe bus bandwidth
CXP-12 maximum link speed
4 GB onboard memory
20 digital lines
CustomLogic FPGA programming capability
get a quote for this productEuresysCoaxlink Quad CXP-12 ValueCoaXPressOne 1- or 2- or 4-connectionsFour micro-BNC 75 Ohms (HD-BNC) CXP-12PCIe 3.0 (Gen 3) x85,000 MB/s maximum acquisition bandwidth
6,700 MB/s sustained PCIe bus bandwidth
CXP-12 maximum link speed
4 GB onboard memory
20 digital lines
get a quote for this productEuresysCoaxlink Quad G3CoaXPressOne 1- or 2- or 4-connection4 x DIN 1.0/2.3 75 Ohms coaxial receptaclesPCIe 3.0 (Gen 3) x42,500 MB/s maximum acquisition bandwidth
3,300 MB/s sustained PCIe bus bandwidth
CXP-6 maximum link speed
1 GB onboard memory
20 digital lines
get a quote for this productEuresysGrablink DuoCamera LinkOne full- or two base-configuration Camera Link camerasTwo SDR Miniature Camera Link (MiniCL)PCIe Gen 2 x4 850 MB/s maximum acquisition bandwidth
1,700 MB/s sustained PCIe bus bandwidth
85 MHz maximum link speed
512 MB onboard memory
20 digital lines
