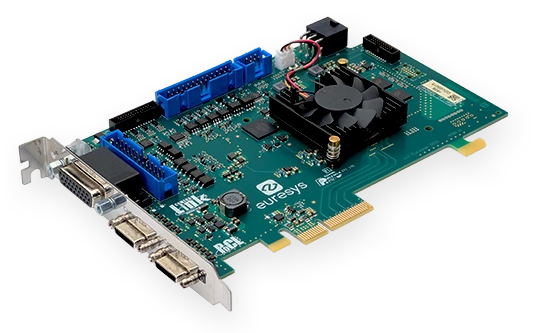

The Euresys Grablink Duo is a PCIe Camera Link frame grabber designed for high-performance machine vision and image acquisition applications. It supports one Camera Link Base, Medium, Full, 72-bit, or 80-bit camera, or two independent Camera Link Base cameras, with aggregate camera data rates up to 850 MB/s. The Grablink Duo features a PCIe 2.0 x4 host interface, Power over Camera Link (PoCL), ECCO Extended Camera Link Cable Operation, 512 MB onboard memory, 20 digital I/O lines, and advanced triggering and synchronization for area scan and line scan imaging applications.
Euresys frame grabbers provide high-performance image acquisition for demanding machine vision, industrial inspection, automation, and scientific imaging applications. Available for CoaXPress, CoaXPress-over-Fiber, and Camera Link cameras, Euresys frame grabbers combine high-speed data transfer with advanced triggering, synchronization, and camera control.
Datasheet
| Mechanical | |
|---|---|
| Form Factor | PCI Express card |
| Format | Standard profile, half length, 4-lane PCI Express card |
| Cooling | Air cooling, fan-cooled heatsink |
| Mounting | Standard-height, 4-lane or higher PCI Express card slot |
| Dimensions | 167.65 × 111.15 mm (6.6 × 4.38 in) |
| Net Weight | 167 g (5.9 oz) |
| Host Bus | |
| Host Interface | PCI Express 2.0 (Gen 2) |
| Link Width | x4; x1 or x2 operation supported with reduced performance |
| Link Speed | 5.0 GT/s (PCIe 2.0); 2.5 GT/s (PCIe 1.0) with reduced performance |
| Maximum Payload Size | 512 bytes |
| Peak Delivery Bandwidth | 2,000 MB/s |
| Sustained Delivery Bandwidth | 1,700 MB/s (host PC motherboard dependent) |
| PCIe Slot Power Rating | 10 W |
| Power Consumption | 7.1 W typical, excluding camera and I/O power output |
| Camera / Video Inputs | |
| Camera Interface | Camera Link 2.0 |
| Camera Link Configurations | Base, Medium, Full, 72-bit and 80-bit |
| Camera Connectors | 2 × 26-position SDR Miniature Camera Link (MiniCL) connectors |
| Maximum Number of Cameras | 2 |
| Camera Configurations | One Base, Medium, Full, 72-bit or 80-bit camera; or two independent Base cameras |
| Maximum Camera Link Clock | 85 MHz |
| Camera Link Clock Range | 20 to 85 MHz |
| Maximum Aggregate Camera Data Rate | 6.8 Gbps (850 MB/s) |
| Camera Power | PoCL (Power over Camera Link) |
| PoCL | Two independent PoCL Safe Power controllers with device detection, automatic power-on, overload and short-circuit protection |
| Extended Cable Operation | ECCO (Extended Camera Link Cable Operation) |
| Camera Types | Area scan and line scan; monochrome and color |
| Line Scan Camera Support | Yes |
| Camera Control | |
| Area Scan Triggering | Asynchronous reset, exposure control, exposure/readout overlap, external hardware trigger, programmable delay and trigger decimation |
| Strobe Control | Programmable strobe position with early and late strobe pulse support |
| Line Scan Triggering | Start-of-scan and end-of-scan triggering, external hardware trigger and continuous acquisition |
| Motion Encoder Support | Quadrature encoder support with programmable noise filtering, acquisition direction selection, backward motion compensation, rate conversion and rate division |
| On-Board Processing | |
| On-Board Memory | 512 MB |
| Image Data Processing | 10-/12-/14-bit unpacking to 16-bit with selectable LSb or MSb justification |
| Input LUT | Monochrome 8-, 10- and 12-bit lookup table transformations |
| Bayer CFA Decoding | 3 × 3 interpolation using average and median functions |
| Data Stream Statistics | Frame rate, line rate and data rate measurement |
| General Purpose I/O | |
| Digital I/O Lines | 20 |
| I/O Configuration | 4 differential inputs, 4 TTL inputs/outputs, 8 isolated inputs and 4 isolated outputs |
| I/O Expansion | Supported through the I/O EXTENSION connector |
| Input Filtering | Programmable glitch-removal filtering |
| Polarity Control | Yes |
| I/O Power Output | +12 V, 1 A, non-isolated, electronically fused |
| Synchronization | |
| C2C-Link | Yes |
| C2C-Link Function | Synchronization of multiple grabber-controlled area scan and line scan cameras across cards and systems |
| Maximum C2C-Link Trigger Rate | Up to 2.5 MHz in supported single-PC configurations |
| Trigger Propagation Delay | <10 ns for cameras on the same card or on different cards in the same PC |
| Software | |
| Driver | eGrabber |
| APIs | C++, .NET and GenICam GenTL |
| GenCP | Supported |
| Operating Systems | Windows 10/11, Linux x86-64 and AArch64, macOS x86-64 and AArch64 |
| Memento | Supported |
| Environmental | |
| Operating Temperature | 0°C to +50°C (+32°F to +122°F) |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Storage Temperature | -20°C to +70°C (-4°F to +158°F) |
| Storage Humidity | 10% to 90% RH, non-condensing |
| Ordering Information | |
| Product Status | Released |
| Product Code | PC1628 |
| Product Name | Grablink Duo |
