Euresys Coaxlink CoaXPress Frame Grabbers for Machine Vision
CXP-6, CXP-12, CoaXPress-over-Fiber, and PoCXP frame grabbers

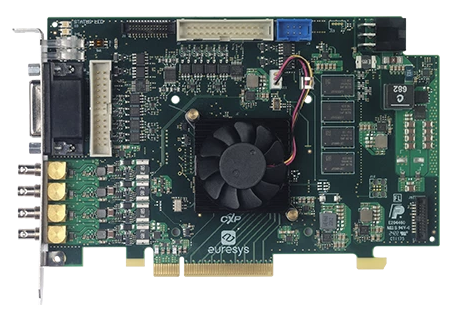

Euresys Frame Grabber

Euresys Coaxlink frame grabbers provide high-performance image acquisition for CoaXPress area scan and line scan cameras. Designed for demanding machine vision and industrial imaging applications, Coaxlink PCIe frame grabbers support high-resolution, high-frame-rate, and multi-camera systems, with configurations offering up to eight CoaXPress connections.

Available with CXP-6, CXP-12, and CoaXPress-over-Fiber interfaces, Euresys Coaxlink frame grabbers offer features including Power over CoaXPress (PoCXP), multi-camera acquisition, high-performance DMA, extensive digital I/O, camera and lighting synchronization, encoder support, and direct GPU transfer on supported configurations. Copper CoaXPress and fiber connectivity options provide flexible solutions for applications requiring high data throughput, precise acquisition control, or long transmission distances.

Euresys Grablink frame grabbers are available for Camera Link cameras. Contact us if you would like help choosing the right frame grabber for your machine vision application.


Euresys Coaxlink CoaXPress Frame Grabber Features

  • CXP-6, CXP-12, and CoaXPress-over-Fiber interfaces
  • PCIe interfaces for high-bandwidth image acquisition
  • CoaXPress connectivity with up to eight connections
  • Support for high-resolution area scan and line scan cameras
  • Multi-camera acquisition and synchronization
  • Power over CoaXPress (PoCXP) on supported models
  • Digital I/O for encoders, sensors, triggers, and lighting control
  • High-performance DMA and direct GPU transfer on supported configurations
  • C2C-Link multi-camera and multi-card synchronization
  • Memento event logging and diagnostic tools

  Manufacturer Model Interface Video Inputs
 Connector
 Bus
 Features
get a quote for this productEuresysCoaxlink Duo CXP-12CoaXPressTwo CoaXPress CXP-12 connectionsTwo micro-BNC 75 Ohms (HD-BNC) CXP-12PCIe 3.0 (Gen 3) x42,500 MB/s maximum acquisition bandwidth
3,300 MB/s sustained PCIe bus bandwidth
CXP-12 maximum link speed
1 GB onboard memory
10 digital lines
get a quote for this productEuresysCoaxlink Mono CXP-12 LHCoaXPressOne CoaXPress CXP-12 connectionsOne micro-BNC 75 Ohms ( HD-BNC) CXP-12PCIe 3.0 (Gen 3) x41,250 MB/s maximum acquisition bandwidth
3,300 MB/s sustained PCIe bus bandwidth
CXP-12 maximum link speed
512 MB onboard memory
10 digital lines
get a quote for this productEuresysCoaxlink OctoCoaXPressOne 1- or 2- or 4- or 8 connections8 x DIN 1.0/2.3 75 Ohms coaxial receptaclesPCIe 3.0 (Gen 3) x85,000 MB/s maximum acquisition bandwidth
6,700 MB/s sustained PCIe bus bandwidth
CXP-6 maximum link speed
2 GB onboard memory
10 digital lines
CustomLogic FPGA programming capability
get a quote for this productEuresysCoaxlink Octo CXP-12CoaXPressOne 1- or 2- or 4- or 8-connections8 x Micro-BNC 75 Ohms coaxial receptaclesPCIe 4.0 (Gen 4) x810,000 MB/s maximum acquisition bandwidth
13,500 MB/s sustained PCIe bus bandwidth
CXP-12 maximum link speed
8 GB onboard memory
10 digital lines
get a quote for this productEuresysCoaxlink QSFP+CoaXPressEnhanced Quad Small Form-factor Pluggable (QSFP+) portPCIe Gen1 x4PCIe 3.0 (Gen 3) x85,000 MB/s maximum acquisition bandwidth
6,700 MB/s sustained PCIe bus bandwidth
CoaXPress-over-fiber
CXP-12 maximum link speed
4 GB onboard memory
20 digital lines
CustomLogic FPGA programming capability
get a quote for this productEuresysCoaxlink QSFP28CoaXPressOne 1-, 2-, or 4-connection CoaXPress-over-Fiber cameraQSFP28 port (QSFP+ 28Gb/s 4X Pluggable Transceiver)PCIe 4.0 (Gen 4) x8 12,500 MB/s maximum acquisition bandwidth
13,500 MB/s sustained PCIe bus bandwidth
CoaXPress-over-fiber
CXP-31 maximum link speed
8 GB onboard memory
20 digital I/O lines
get a quote for this productEuresysCoaxlink Quad CXP-12CoaXPressOne 1- or 2- or 4-connectionsFour micro-BNC 75 Ohms (HD-BNC) CXP-12PCIe 3.0 (Gen 3) x85,000 MB/s maximum acquisition bandwidth
6,700 MB/s sustained PCIe bus bandwidth
CXP-12 maximum link speed
4 GB onboard memory
20 digital lines
CustomLogic FPGA programming capability
get a quote for this productEuresysCoaxlink Quad CXP-12 ValueCoaXPressOne 1- or 2- or 4-connectionsFour micro-BNC 75 Ohms (HD-BNC) CXP-12PCIe 3.0 (Gen 3) x85,000 MB/s maximum acquisition bandwidth
6,700 MB/s sustained PCIe bus bandwidth
CXP-12 maximum link speed
4 GB onboard memory
20 digital lines
get a quote for this productEuresysCoaxlink Quad G3CoaXPressOne 1- or 2- or 4-connection4 x DIN 1.0/2.3 75 Ohms coaxial receptaclesPCIe 3.0 (Gen 3) x42,500 MB/s maximum acquisition bandwidth
3,300 MB/s sustained PCIe bus bandwidth
CXP-6 maximum link speed
1 GB onboard memory
20 digital lines
