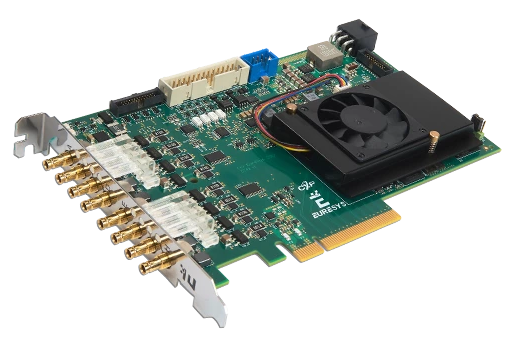

The Euresys Coaxlink Octo is an eight-connection CoaXPress CXP-6 frame grabber designed for high-bandwidth, multi-camera machine vision applications. Supporting up to eight CoaXPress cameras, the board provides up to 5,000 MB/s aggregate camera bandwidth and a PCIe 3.0 x8 host interface with up to 6,700 MB/s sustained bus bandwidth. The Coaxlink Octo supports area scan and line scan cameras and features Power over CoaXPress (PoCXP), 2 GB onboard memory, advanced triggering and synchronization, and CustomLogic FPGA programming for demanding industrial imaging applications.
Euresys frame grabbers provide high-performance image acquisition for demanding machine vision, industrial inspection, automation, and scientific imaging applications. Available for CoaXPress, CoaXPress-over-Fiber, and Camera Link cameras, Euresys frame grabbers combine high-speed data transfer with advanced triggering, synchronization, and camera control.
Datasheet
| Mechanical | |
|---|---|
| Form Factor | PCI Express card |
| Format | Standard profile, half length, 8-lane PCI Express card |
| Cooling | Air cooling, fan-cooled heatsink |
| Mounting | Standard-height, 8-lane or higher PCI Express card slot |
| Dimensions | 167.65 × 111.15 mm (6.6 × 4.38 in) |
| Net Weight | 130 g (4.6 oz) |
| Host Bus | |
| Host Interface | PCI Express 3.0 (Gen 3) |
| Link Width | x8; x1, x2, or x4 operation supported with reduced performance |
| Link Speed | 8.0 GT/s (PCIe 3.0); 5.0 GT/s (PCIe 2.0) with reduced performance |
| Maximum Payload Size | 512 bytes |
| DMA | 32-bit and 64-bit |
| Peak Delivery Bandwidth | 7,800 MB/s |
| Sustained Delivery Bandwidth | 6,700 MB/s (host PC motherboard dependent) |
| PCIe Slot Power Rating | 25 W |
| Power Consumption | 16 W typical, excluding camera and I/O power output |
| Camera / Video Inputs | |
| Camera Interface | CoaXPress |
| CoaXPress Standards | CoaXPress 1.0, 1.1, 1.1.1, 2.0 and 2.1 |
| Maximum Link Speed | CXP-6 |
| Number of Connections | 8 |
| Camera Connectors | 8 × DIN 1.0/2.3 75 Ohm CXP-6 connectors |
| Maximum Number of Cameras | 8 |
| Maximum Aggregate Camera Bandwidth | 50 Gbps (5,000 MB/s) |
| Supported CXP Speeds | CXP-1, CXP-2, CXP-3, CXP-5 and CXP-6 |
| Camera Power | PoCXP (Power over CoaXPress) |
| PoCXP Power | 17 W of regulated 24 V DC power per CoaXPress connector |
| Camera Types | Area scan and line scan; monochrome and color |
| Line Scan Camera Support | Yes |
| Camera Control | |
| Area Scan Triggering | Asynchronous reset, exposure control, exposure/readout overlap, external hardware trigger, programmable delay and trigger decimation |
| Strobe Control | Programmable strobe position with early and late strobe pulse support |
| Line Scan Triggering | Start-of-scan and end-of-scan triggering, external hardware triggering and continuous acquisition |
| Motion Encoder Support | Quadrature encoder support with programmable filtering, direction selection, backward motion compensation, rate conversion and rate division |
| On-Board Processing | |
| On-Board Memory | 2 GB |
| Image Data Processing | 10-/12-/14-bit unpacking to 16-bit, R/B component swap and little-endian conversion |
| Flat-Field Correction | Available with the 2-camera firmware variant |
| Input LUT | Monochrome 8-, 10- and 12-bit lookup table transformations |
| Bayer CFA Decoding | 3 × 3 linear, 3 × 3 median-based, and selected 5 × 5 gradient-based interpolation |
| CustomLogic | Yes |
| Data Stream Statistics | Frame rate, line rate and data rate measurement |
| General Purpose I/O | |
| Digital I/O Lines | 10 |
| I/O Configuration | 2 differential inputs, 2 TTL inputs/outputs, 4 isolated inputs and 2 isolated outputs |
| I/O Expansion | Supported through the I/O EXTENSION connector |
| Input Filtering | Programmable glitch-removal filtering |
| Polarity Control | Yes |
| I/O Power Output | +12 V, 1 A, non-isolated, electronically fused |
| Synchronization | |
| C2C-Link | Yes |
| C2C-Link Function | Synchronization of multiple grabber-controlled area scan and line scan cameras |
| Maximum C2C-Link Trigger Rate | Up to 2.5 MHz in supported single-PC configurations |
| Trigger Propagation Delay | <10 ns for cameras on the same card or on different cards in the same PC |
| Software | |
| Driver | eGrabber |
| APIs | C++, .NET and GenICam GenTL |
| Operating Systems | Windows 10/11, Linux x86-64 and AArch64, macOS x86-64 and AArch64 |
| Memento | Supported |
| Environmental | |
| Operating Temperature | 0°C to +55°C (+32°F to +131°F) |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Storage Temperature | -20°C to +70°C (-4°F to +158°F) |
| Storage Humidity | 10% to 90% RH, non-condensing |
| Ordering Information | |
| Product Code | PC3602 |
| Product Name | Coaxlink Octo |
| Included Accessory | PC3304 HD26F I/O Adapter Cable |
