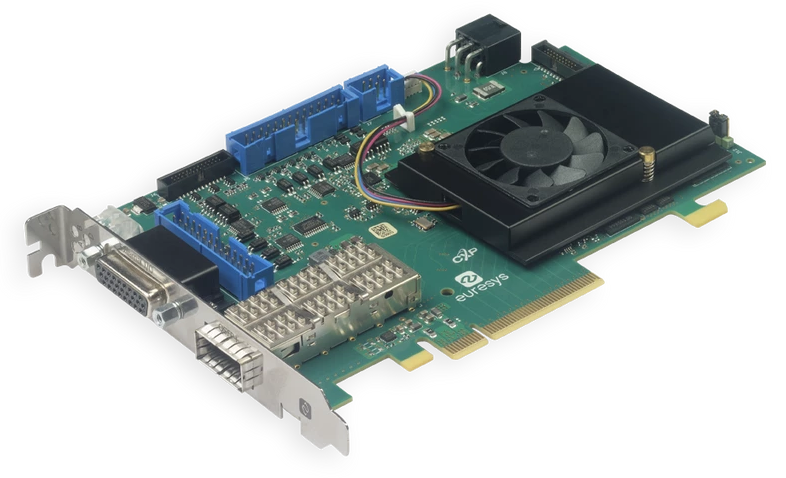

The Euresys Coaxlink QSFP+ is a four-connection CoaXPress-over-Fiber frame grabber designed for high-bandwidth machine vision and image acquisition applications. Featuring one QSFP+ port compatible with 40 Gbps optical modules, the board provides up to 5,000 MB/s aggregate camera bandwidth and a PCIe 3.0 x8 host interface with up to 6,700 MB/s sustained bus bandwidth. The Coaxlink QSFP+ supports area scan and line scan CoaXPress cameras and provides 20 digital I/O lines, advanced camera triggering and synchronization, Memento event logging, and CustomLogic FPGA programming for demanding industrial imaging applications.
Euresys frame grabbers provide high-performance image acquisition for demanding machine vision, industrial inspection, automation, and scientific imaging applications. Available for CoaXPress, CoaXPress-over-Fiber, and Camera Link cameras, Euresys frame grabbers combine high-speed data transfer with advanced triggering, synchronization, and camera control.
Datasheet
| Mechanical | |
|---|---|
| Form factor | PCI Express card |
| Format | Standard profile, half length, 8-lane PCI Express card |
| Cooling | Air cooling, fan-cooled heatsink |
| Mounting | Standard-height, 8-lane or higher PCI Express card slot |
| Dimensions | 167.65 × 111.15 mm (6.6 × 4.38 in) |
| Net weight | 178 g (6.3 oz) |
| Host Bus | |
| Host interface | PCI Express 3.0 (Gen 3) |
| Link width | x8; x1, x2, or x4 operation supported with reduced performance |
| Link speed | 8.0 GT/s PCIe 3.0; 5.0 GT/s PCIe 2.0 with reduced performance |
| Maximum payload size | 512 bytes |
| DMA | 32-bit and 64-bit |
| Peak delivery bandwidth | 7,800 MB/s |
| Sustained delivery bandwidth | 6,700 MB/s, host PC motherboard dependent |
| PCIe slot power rating | 25 W |
| Power consumption | 16.5 W typical, excluding I/O power output and optical transceiver module |
| Camera / Video Inputs | |
| Camera interface | CoaXPress-over-Fiber |
| Supported standards | CoaXPress 1.0, 1.1, 1.1.1, 2.0, 2.1; CoaXPress-over-Fiber Bridge Protocol 1.1 |
| Maximum link speed | CXP-12 |
| Maximum link width | 4 connections |
| Camera connector | 1 × QSFP+ port, compliant with SFF-8436 and CoaXPress-over-Fiber |
| QSFP+ module interface | 4 × 10 Gbps pluggable transceiver |
| Maximum cameras | 4 |
| Area scan camera support | One 1-, 2-, or 4-connection camera; or four 1-connection cameras |
| Line scan camera support | One 1-, 2-, or 4-connection camera |
| Maximum aggregate camera bandwidth | 5,000 MB/s |
| CXP down-connection speed | 10 Gbps (CXP-12) |
| CXP data streams | 1 data stream per camera |
| Maximum CXP stream packet size | 16,384 bytes |
| Camera types | Area scan and line scan; monochrome and color |
| Supported pixel formats | Mono8/10/12/14/16; Bayer 8/10/12/14/16; RGB8/10/12/14/16; RGBA8/10/12/14/16; YCbCr 4:2:2; YUV 4:2:2; Raw |
| Camera Control | |
| Area scan triggering | Asynchronous reset, exposure control, exposure/readout overlap, external hardware trigger, programmable delay and trigger decimation |
| Strobe control | Programmable strobe position with early and late strobe pulse support |
| Line scan triggering | Start-of-scan and end-of-scan triggering, external hardware trigger, continuous web inspection acquisition |
| Motion encoder support | Quadrature encoder support with noise filtering, direction selection, backward motion compensation, rate converter and rate divider |
| On-Board Processing | |
| On-board memory | 4 GB |
| Image processing | 10-/12-/14-bit unpacking to 16-bit, R/B component swap, little-endian conversion |
| Flat-field correction | Available with the 2-camera firmware variant |
| Input LUT | Monochrome lookup table transformations for 8-, 10-, and 12-bit input data |
| Bayer CFA decoding | 3 × 3 linear or median-based interpolation with supported firmware |
| CustomLogic | Yes, with required AMD/Xilinx IP license |
| Data stream statistics | Frame rate, line rate, and data rate measurement |
| General Purpose I/O | |
| Digital I/O lines | 20 total |
| I/O configuration | 4 differential inputs, 4 TTL inputs/outputs, 8 isolated inputs, 4 isolated outputs |
| I/O expansion | Supported through the I/O EXTENSION connector |
| Input filtering | Programmable glitch-removal filtering on all system I/O inputs |
| Polarity control | Yes |
| I/O power output | +12 V, 1 A, non-isolated, electronically fused |
| Synchronization | |
| C2C-Link | Yes |
| C2C-Link function | Synchronization of multiple area scan or line scan cameras across cards and systems |
| Maximum C2C-Link trigger rate | Up to 2.5 MHz in supported single-PC configurations |
| Trigger propagation delay | <10 ns for cameras on the same card or on cards in the same PC |
| Software | |
| Driver | eGrabber |
| Supported operating systems | Windows 10/11, Linux x86-64 and AArch64, macOS x86-64 and AArch64 |
| Diagnostics | Memento Event Logging Tool |
