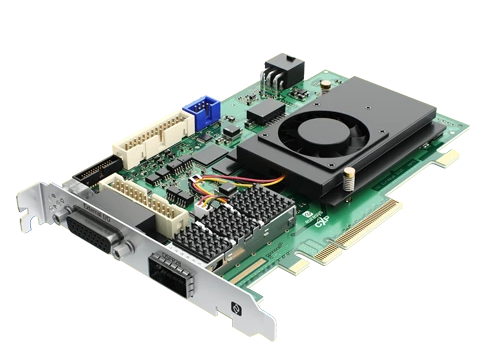

The Euresys Coaxlink QSFP28 is a 100G CoaXPress-over-Fiber frame grabber designed for extremely high-bandwidth machine vision and image acquisition applications. Featuring one QSFP28 port with four 25 Gbps CXP-31 CoaXPress-over-Fiber connections, the board provides up to 100 Gbps (12,500 MB/s) aggregate camera bandwidth and a PCIe 4.0 x8 host interface with up to 13,500 MB/s sustained bus bandwidth. The Coaxlink QSFP28 supports high-performance area scan and line scan cameras and features 8 GB onboard memory, 20 digital I/O lines, advanced camera triggering and synchronization, and C2C-Link support for demanding industrial imaging systems.
Euresys frame grabbers provide high-performance image acquisition for demanding machine vision, industrial inspection, automation, and scientific imaging applications. Available for CoaXPress, CoaXPress-over-Fiber, and Camera Link cameras, Euresys frame grabbers combine high-speed data transfer with advanced triggering, synchronization, and camera control.
Datasheet
| Mechanical | |
|---|---|
| Form Factor | PCI Express card |
| Format | Standard profile, half length, 8-lane PCI Express card |
| Cooling | Air cooling, fan-cooled heatsink |
| Mounting | Standard-height, 8-lane or higher PCI Express card slot |
| Dimensions | 167.65 × 111.15 mm (6.6 × 4.38 in) |
| Net Weight | 210 g (7.4 oz) |
| Host Bus | |
| Host Interface | PCI Express 4.0 (Gen 4) |
| Link Width | x8; x1, x2, or x4 operation supported with reduced performance |
| Link Speed | 16.0 GT/s (PCIe 4.0) |
| Maximum Payload Size | 512 bytes |
| DMA | 32-bit and 64-bit |
| Peak Delivery Bandwidth | 15,700 MB/s |
| Sustained Delivery Bandwidth | 13,500 MB/s (host PC motherboard dependent) |
| PCIe Slot Power Rating | 75 W |
| Power Consumption | 30.64 W typical, excluding I/O power output and optical transceiver module |
| Camera / Video Inputs | |
| Camera Interface | CoaXPress-over-Fiber |
| Supported Standards | CoaXPress 1.0, 1.1, 1.1.1, 2.0, 2.1; CoaXPress-over-Fiber Bridge Protocol 1.1 |
| Maximum Link Speed | CXP-31 |
| Number of Connections | 4 |
| Camera Connector | 1 × QSFP28 (QSFP+ 28Gb/s 4X Pluggable Transceiver) port |
| Optical Module | 100 Gbps QSFP28 optical module; up to 5 W available module power |
| Maximum Number of Cameras | 1 |
| Camera Configuration | One 1-, 2-, or 4-connection area scan or line scan camera |
| Maximum Aggregate Camera Bandwidth | 100 Gbps (12,500 MB/s) |
| CXP Down-Connection Speed | 25 Gbps (CXP-31) |
| CXP Data Streams | 1 data stream per camera |
| Maximum CXP Stream Packet Size | 16,384 bytes |
| Camera Types | Area scan and line scan; monochrome and color |
| Line Scan Camera Support | Yes |
| Camera Control | |
| Area Scan Triggering | Asynchronous reset, exposure control, exposure/readout overlap, external hardware trigger, programmable delay and trigger decimation |
| Strobe Control | Programmable strobe position with early and late strobe pulse support |
| Line Scan Triggering | Start-of-scan and end-of-scan triggering, external hardware trigger and continuous acquisition |
| Motion Encoder Support | Quadrature encoder support with programmable filtering, direction selection, backward motion compensation, rate conversion and rate division |
| On-Board Processing | |
| On-Board Memory | 8 GB |
| Image Data Processing | 10-/12-/14-bit unpacking to 16-bit, optional R/B component swap and little-endian conversion |
| Data Stream Statistics | Frame rate, line rate and data rate measurement |
| General Purpose I/O | |
| Digital I/O Lines | 20 |
| I/O Configuration | 4 differential inputs, 4 TTL inputs/outputs, 8 isolated inputs and 4 isolated outputs |
| I/O Expansion | Supported through the I/O EXTENSION connector |
| Input Filtering | Programmable glitch-removal filtering |
| Polarity Control | Yes |
| I/O Power Output | +12 V, 1 A, non-isolated, electronically fused |
| Synchronization | |
| C2C-Link | Yes |
| C2C-Link Function | Synchronization of multiple grabber-controlled area scan and line scan cameras across one or multiple cards and PCs |
| Maximum C2C-Link Trigger Rate | Up to 2.5 MHz for supported single-PC configurations |
| Trigger Propagation Delay | <10 ns for cameras on the same card or on different cards in the same PC |
| Software | |
| Driver | eGrabber |
| APIs | C++, .NET and GenICam GenTL |
| Operating Systems | Windows 10/11, Linux x86-64 and AArch64, macOS x86-64 and AArch64 |
| Memento | Supported |
| Environmental | |
| Operating Temperature | 0°C to +55°C (+32°F to +131°F) |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Storage Temperature | -20°C to +70°C (-4°F to +158°F) |
| Storage Humidity | 10% to 90% RH, non-condensing |
| Ordering Information | |
| Product Status | Released |
| Product Code | PC3628 |
| Product Name | Coaxlink QSFP28 |
