Gidel FantoVision™ FPGA-based frame grabbers and edge computer vision systems are ultra-compact, high-performance systems designed for high-bandwidth image acquisition, real-time image processing, and image compression. Powered by NVIDIA Jetson Orin NX embedded AI platforms and optionally accelerated by an Intel Arria 10™ FPGA, FantoVision delivers a scalable, cost-effective solution for low-latency, data-intensive AI vision applications.
FantoVision frame grabber systems are available as a plug-and-play FPGA-based frame grabber, or as part of a complete AI vision system. These advanced edge AI vision systems seamlessly integrate high-speed cameras, real-time preprocessing, and hardware-accelerated compression into a single platform—making them ideal for applications where bandwidth, storage, and latency are critical.
Gidel’s hardware-accelerated compression algorithms dramatically reduce bandwidth and storage requirements, improving overall system throughput and real-time performance for demanding machine vision and imaging workloads. Learn how FantoVision overcomes the I/O and bandwidth limitations commonly faced by NVIDIA Jetson-based embedded computers.
FantoVision edge computers are available as:
Need help selecting the right AI edge computer for your application? Contact us today to discuss your requirements and see how the FantoVision edge computers can power your next high-performance vision system.
| Frame Grabber Model | FantoVision20-GigE | FantoVision20-CL | FantoVision20 |
|---|---|---|---|
| Jetson Model | Orin NX 16GB Xavier NX 8GB | 16GB | Orin NX 16GB Xavier NX 8GB | 16GB | Orin NX 16GB Xavier NX 8GB | 16GB |
| Camera Input | 2× 10GigE cameras 4× 5GigE cameras 8× 2.5GigE cameras 15× 1GigE cameras | Camera Link Deca / Full / Medium / Base Dual Base Optional: PoCL | 2× 10GigE cameras 4× 5GigE cameras 8× 2.5GigE cameras 15× 1GigE cameras Camera Link Deca / Full / Medium / Base Dual Base Optional: PoCL |
| Camera Input Connectors | 2× SFP+ | 2x RJ45 (Fiber optic / Copper) | 2x SDR26 (mini Camera Link) | 2× SFP+ | 2x RJ45 (Fiber optic / Copper) 2x SDR26 (mini Camera Link) |
| Aggregate Bandwidth | Up to 20 Gb/s (Dual 10GigE configuration) | Up to 6.8 Gb/s (Camera Link Configuration) | Up to 50 Gb/s (Dual 10GigE + Camera Link configuration) |
| Real-Time ROI Offload | Yes | Yes | Yes |
| Real-Time Encoders (Optional) | JPEG Lossless Quality+ H.264 H.265 | JPEG Lossless Quality+ H.264 H.265 | JPEG Lossless Quality+ H.264 H.265 |
| Real-Time HDR Correction | Yes | Yes | Yes |
| Dimensions (L/W/H) | 134 × 90 × 60 mm | 134 × 90 × 60 mm | 134 × 90 × 60 mm |
| Weight | 750 g | 750 g | 750 g |
| Cooling Options | Active | Passive | Active | Passive | Active | Passive |
| Storage | Up to 2TB | Up to 2TB | Up to 2TB |

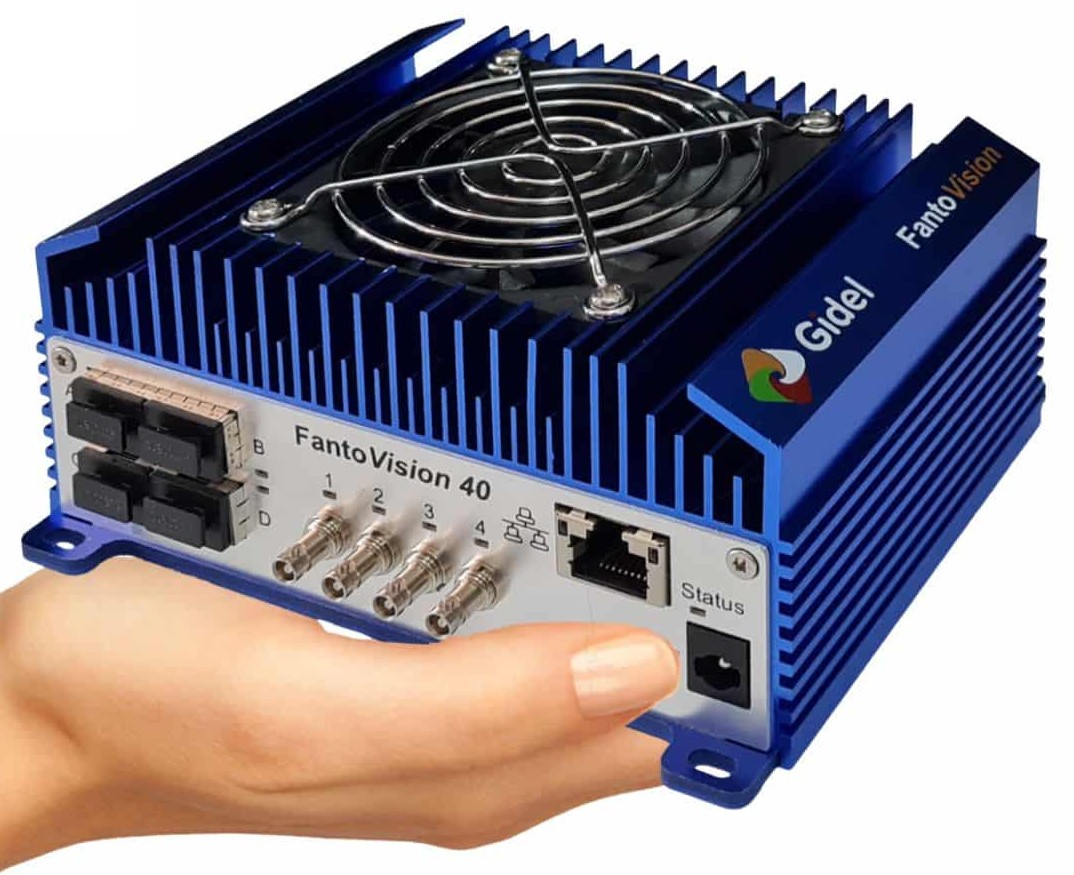

| Frame Grabber Model | FantoVision40-CXP12 | FantoVision40 |
|---|---|---|
| Jetson Model | Orin NX 16GB | Orin NX 16GB |
| Camera Input | Up to 4× CoaXPress-12 links PoCXP | Up to 4× CoaXPress-12 links PoCXP Optional: up to 4× 10GigE cameras |
| Camera Input Connectors | 4x Micro-BNC | 4x Micro-BNC Optional: 4× SFP+ | 4x RJ45 (Fiber optic / Copper) |
| Aggregate Bandwidth | Up to 50Gb/s (CXP configuration) | Up to 50 Gb/s (CXP), plus 10GigE option |
| Real-Time ROI Offload | Yes | Yes |
| Real-Time Encoders (Optional) | JPEG Lossless Quality+ H.264 H.265 | JPEG Lossless Quality+ H.264 H.265 |
| Real-Time HDR Correction | Yes | Yes |
| Dimensions (L/W/H) | 134 × 90 × 60 mm | 134 × 90 × 60 mm |
| Weight | 750 g | 750 g |
| Cooling Options | Active | Passive | Active | Passive |
| Storage | Up to 2TB | Up to 2TB |
