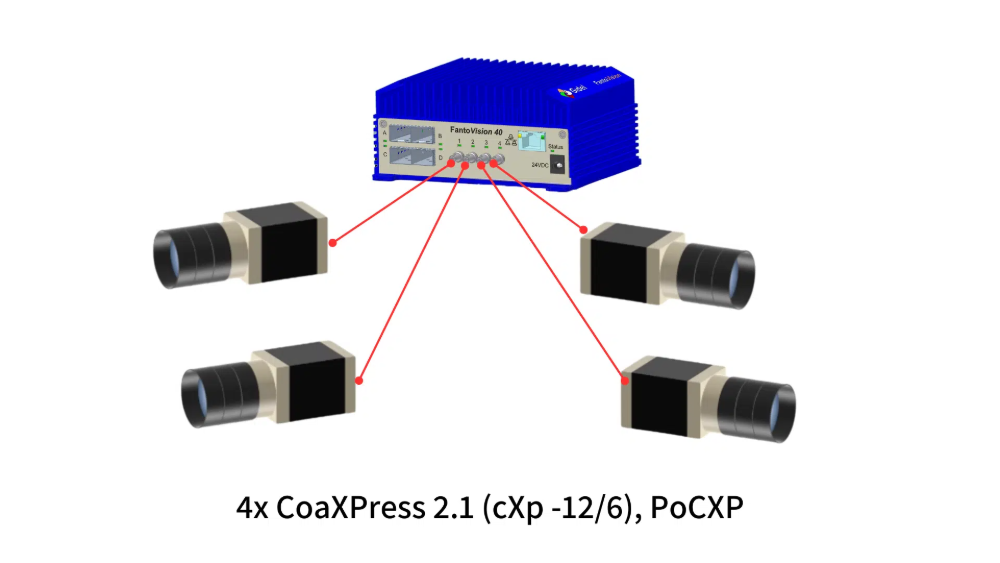

The Gidel FantoVision 40™ edge computer is an innovative compact edge computer, designed for image acquisition and processing, that supports up to four CoaXPress cameras or four 10GigE cameras with up to 40 Gb/s bandwidth. High-end image acquisition with real-time processing and/or compression is achieved through a Nvidia Jetson™ embedded computer, with optional pre-processing/compression capabilities on an Intel Arria 10™ FPGA.
Leveraging Nvidia's extensive libraries, the Nvidia Jetson provides up to 100 TOPS of AI compute power. The GPU and FPGA are seamlessly interconnected by a 4-lane PCIe Gen 3 interface. With over 2 Terabytes of SSD storage, the FantoVision 40 is well-suited for demanding real-time processing, compression, and recording tasks. Additionally, the FPGA is enhanced with up to 10 GB DDR4@200 Gb/s.
FantoVision edge computers stand out due to their open architecture, which facilitate embedded AI and image processing on both GPU and FPGA. Software engineers have the flexibility to program algorithms on the GPU using CUDA C/C++ and NVIDIA’s AI libraries. In addition, Gidel’s innovative ProcVision™ Suite simplifies and accelerates the development and deployment of optional pre-processing blocks on the FPGA.
Gidel provides modular solutions for high-performance FPGA-based imaging and vision systems, ranging from ready-to-use edge computers to fully customized solutions. Contact us if you would like help deciding which Gidel edge computer is best for your application.
FantoVision 40 Datasheet
| Interfaces | |
|---|---|
| Camera interfaces |
4 x CoaXPress 2.1 Option: 4 x 10 GigE Vision Option: User Protocol |
| Host interfaces |
1x GigE 1x USB 3.1/2.0 1x USB 2.0 1x HDMI UART Recovery Restart |
| Processors | |
| Embedded computer |
NVIDIA Jetson Orin NX, Orin Nano, and Xavier NX (Nano is subject to minimum order quantity) |
| Jetson computer resources |
Up to 8-core Arm Cortex-A78AE 2MB L2 + 4MB L3 1024 Core Ampere, with 32 Tensor Cores Up to 100 TOPS AI computation Up to 16GB @ 102.4 GB/s Video encode: 1x 4K60, 3x 4K30, 6x 1080p60, 12x 1080p30 (H.265), H.264, H.265, AV1 Video decode: 1x 8K30, 2x 4K60, 4x 4K30, 9x 1080p60, 18x 1080p30 (H.265), H.264, H.265, VP9, AV1 |
| FPGA Options |
Intel Arria 10 – 160/270/660/1150 DRAM Throughput: 2GB – 10GB DDR4 @ up to 25.6 GB/s Max Bandwidth/SFP+: 12.5 Gb/s |
| FPGA resources |
160K/270K/660K LEs Up to 2,133 M20Ks Up to 3,374 18 x 19 multipliers Up to 16 I/O PLLs |
| GPU-FPGA interconnectivity | PCIe Gen 3 x4 @ up to 20 Gb/s |
| Other | |
| Storage | 100GB / 2TB |
| Temperature Range | Commercial: 0 °C - 65 °C case temperature Industrial: -25 °C - 65 °C case temperature. (Limited FPGA options) |
| Streaming & Communication Protocols | Customizable streaming & communication using NVIDIA tools Option: RTSP streaming |
| FPGA | Arria 10 160 GX | Arria 10 270 GX | Arria 10 660 GX |
| Embedded computer | Jetson Orin NX | Jetson Orin Nano | Jetson Xavier (Nano is subject to minimum order quantity) |
| Cooling | Passive cooling | Active cooling (fan) |
| On-FPGA image compression | Quality+ | Lossless | JPG |
FantoVision modular edge computers are customizable, allowing you to select from a range of Jetson SoM, FPGA, storage, and cooling options. Contact us to get an edge computer customized for you!
AI/Algorithm Development
The FantoVision edge computers are supported by NVIDIA’s libraries enabling software engineers to develop algorithms/AI on the Jetson via CUDA C/C++.
ProcVision Developer’s Suite
The ProcVision Suite offers a comprehensive set of tools, including:
