The Gidel HawkEye-20GigE frame grabber is a PCIe x8 Gen. 3 frame grabber with a low-profile form factor that's designed for real-time, high-bandwidth vision and image processing applications. This FPGA-based frame grabber, achieves an acquisition bandwidth of 20 Gb/s through two SFP+ ports that enables grabbing from various camera configurations, including 2 x 10 GigE Vision cameras, multi-link cameras, or multiple GigE cameras (e.g., 4 x 5 GigE, 10 x 1 GigE) via a switch.
This revolutionary FPGA-based frame grabber provides optimal solutions for multi-camera systems with its high bandwidth, synchronization, connectivity, and scalability. The HawkEye-20GigE frame grabber's real-time FPGA processing ensures no frame loss and virtually zero CPU utilization, thereby dedicating the CPU to essential processing tasks.
Gidel FPGA frame grabbers offer real-time, high-bandwidth vision and image processing. Their frame grabbers range from economical off-the-shelf frame grabbers to high-performance, multi-camera custom solutions with 10GigE or CoaXPress interfaces. Development is streamlined with the ProcFG and InfiniVision SDK, which includes GUIs, APIs, and libraries with support for complex multi-camera setups, advanced image processing, and compression.
Contact us to learn more about the Gidel’s frame grabber options, and whether a ready-to-use, standard, or customized frame grabber is best for your application.
HawkEye-20GigE Frame Grabber Datasheet
| Camera Interface | 2 x 10 GigE Links |
| Advanced Features |
Link Aggregation mode Chunk Data Selective ROI acquisition Option for on-FPGA compression |
| Image Formats | Mono, Bayer, RGBA (8, 10, 12, 14 and 16 bits/color) and RGB (8, 10 and 12 bits/ color) |
| Max. Resolution |
Horizontal: 16 K pixels (64-bit) Vertical: 65 K lines |
| Acquisition Rate | Up to 20 Gb/s |
| Host Bus | PCIe x8 Gen. 3 |
| Frame Buffer | 2 GB |
| Camera Types | Area and Line Scan |
| Form Factor | PCIe low-profile |
| Connectors |
2 x SFP+ (copper / fiber) 15-Pin I/O D-SUB |
| GPIO | RS422, opto-coupler, LVTTL and 30V at 0.9A |
| OS Support |
Win 10 and 11 Linux (kernel 2.6.x- 5.19) Linux version doesn’t include the ProcFG/InfiniVision GUI |
| Grabber Architecture type |
The Gidel Frame Grabber boards can operate in one of two unique Frame Grabber architectures, ProcFG or InfiniVision, by reprogramming the firmware. Grabber option #1: InfiniVision
|
| Camera interface connector | SFP+ | RJ45 |
| FPGA Option | Optional on-FPGA processing using Gidel's libraries (IPs), Gidel's tailored library functions (IPs), or user customized IPs |
| FPGA Type | Arria 10 160 | Arria 10 480 |
Contact us if you need a customized solution!
SDK: The ProcFG and InfiniVision are each supported by their unique GUI and API suite for developing user applications.
FPGA Programming Suite: The Gidel grabber boards are supported by the ProcVision Suite enabling tailoring, debugging, and verification of the FPGA image processing and data flow.
Customization can be based on the InfiniVision or ProcFG flow, and can include multi-instances for supporting unique multi-camera topologies, as well as, image processing and compression.

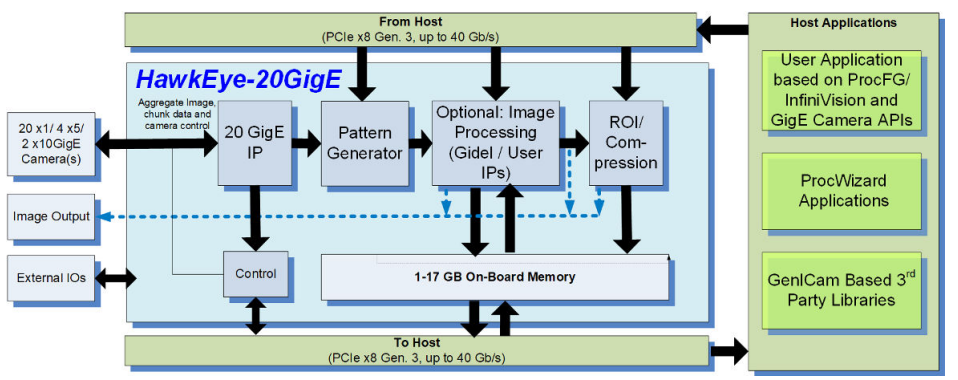

Example of a typical HawkEye-20GigE frame grabber acquisition and processing system
