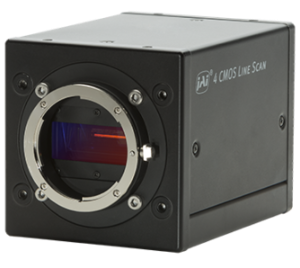

JAI SW-8000Q-SFP
Multispectral 10GigE Camera
Proprietary Sensor
8192x4 Resolution
Line Scan Camera

get a quote for this product

JAI Sweep High Performance Prism based Color Line Scan Cameras Features

512 to 8K resolution prism-based line scan cameras
3-sensor RGB and 4-sensor RGB+NIR models
Exceptional color accuracy and registration
CoaXPress, Camera Link, and 10GigE interfaces

SW-8000Q-SFP Camera Features

36 kHz for RGB8 + NIR dual-stream output
4 x 8192 pixel prism-based line scan with superior color quality and alignment
RGB/NIR sensor
3.75 x 5.78 micron pixels

SW-8000Q-SFP Datasheet

SW-8000Q-SFP Manual All JAI Cameras

Manufacturer:	JAI	Model:	SW-8000Q-SFP	Total Pixels:	32,768
Resolution:	8192 (h) 4 (v)	Sensor Size:	31mm	Color/B & W:	Multispectral
kHz:	36	Sensor Type:	CMOS	Sensor Device:	Proprietary
Pixel Size(µm):	3.75(h) 5.78(v)	A/D Bits:	10	Shutter Speed:	3µs to 27778µs
Interface:	10GigE	Voltage(VDC):	10V - 25V	Power(watts):	17.4
Lens Mount:	F/M52	Shutter Type:	Global	Weight(grams):	980
S/N Ratio(dB):	call	External Trigger:	Yes	Dimensions(mm):	120Lx90Wx90H

JAI Camera Resources

click to calculate FOV/FL for this camera

Lens Calculator

Click to see our wide selection of camera accessories

Camera Accessories

JAI Whitepaper Prism Technology - click to read

JAI Prism Technology

JAI 10GigE Technology Whitepaper - click to read

10GigE Technology Guide
