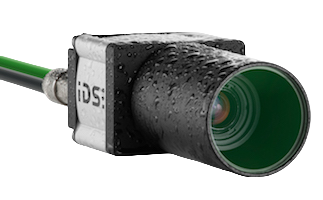

IDS Imaging UI-5130FA-M/C
GigE Camera
ON Semi PYTHON 500 Sensor
800x600 Resolution
Area Scan Camera

get a quote for this product

uEye FA IP65/67 GigE Camera Family Features Features

Up to 25 megapixel CMOS sensors
1/3.6" to 4/3" sensor format
120MB image memory for multi-camera flexibility
IP 65/67 rated for dust/mist environments

UI-5130FA-M/C Camera Features

IP65/67 certified for harsh environments
1/3.6" WVGA PYTHON 500 sensor w/global shutter for moving objects @ 205fps
Extremely large, light-sensitive pixels -- 4.8 μm
Multi AOI (2x4 and 4x2)

UI-5130FA-M/C Datasheet (B&W)

UI-5130FA-M/C Datasheet (Color) UI-5130FA-M/C Manual

Sensor Spec
Software All IDS Cameras

Manufacturer:	IDS	Model:	UI-5130FA-M/C	Total Pixels:	480,000
Resolution:	800 (h) 600 (v)	Sensor Size:	1/3.6"	Color/B & W:	Color / Monochrome
Frame Rate (fps):	205	Sensor Type:	CMOS	Sensor Device:	ON Semi PYTHON 500
Pixel Size(µm):	4.8(h) 4.8(v)	A/D Bits:	10	Shutter Speed:	58µs to 303000µs
Interface:	GigE	Voltage(VDC):	12-24V	Power(watts):	2.2
Lens Mount:	C	Shutter Type:	Global	Weight(grams):	174
S/N Ratio(dB):	call	External Trigger:	Yes	Dimensions(mm):	41Lx53Wx42.7H
