IDS Imaging Industrial Cameras: Visible and NIR Cameras – USB 2.0, USB 3.0, USB 3.1 and GigE

IDS Imaging Development Systems is an highly accomplished manufacturer of industrial cameras and components for industrial inspection, robotics, medical and scientific imaging, kiosks, and many other demanding automated imaging and machine vision applications. Offering VGA to 18MP resolution cameras equipped with sensors from such manufacturers as Sony, Aptina, ON Semi, CMOSIS, e2v, IDS is well known for going the “extra mile” when it comes to unique and custom OEM camera performance features, and offers an SDK (Software Development Kit) and visualization utilities that are often considered to be some of the best in the industrial camera industry.

IDS Imaging USB 3.1 Gen1 Type-C LE Cameras USB 3.1 Gen1 Type-C LE Cameras
  • BSI sensors (Sony STARVIS) for ultra-high sensitivity for low light level
  • 36x36x20mm single board level models available
  • High speed OnSemi Python models up to 135fps
  • Long exposures up to 28 seconds
IDS Imaging uEye LE USB 3.0/3.1 Cameras uEye LE USB 3.0/3.1 Cameras
  • VGA to 18MP Aptina/Sony/ON Semi/e2V CMOS sensors
  • 1/3.6" to 1/1.8" sensor format
  • C/CS-Mount ABS housed or board level
  • Lowest cost USB 3.0 models

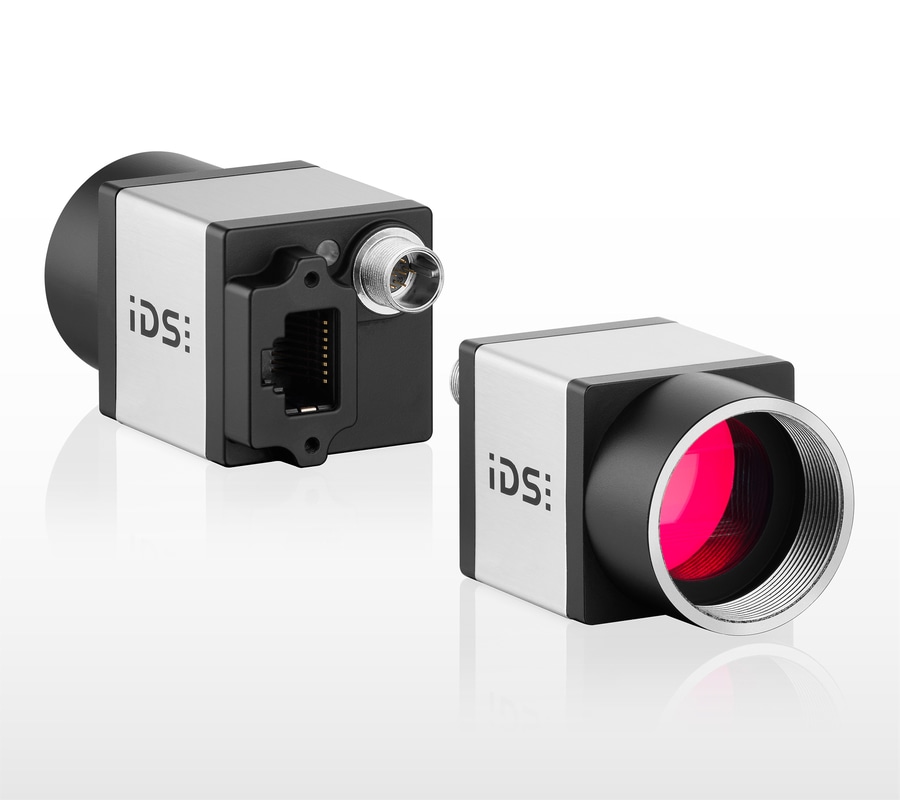

IDS Imaging uEye CP GigE Cameras uEye CP GigE Cameras
  • VGA to 6.4MP Aptina/Sony/ON Semi/e2V/CMOSIS CMOS sensors
  • 1/3.6" to 1" sensor format
  • Integrated PoE & FPGA/LUT
  • 128MB image memory for multi-camera flexibility

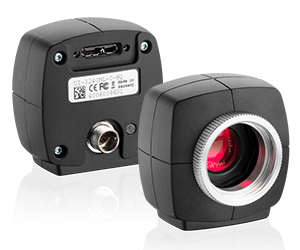

IDS Imaging uEye ML USB 3.0/3.1 Cameras uEye ML USB 3.0/3.1 Cameras
  • 1 to 5MP Aptina/OnSemi/e2V CMOS sensors
  • 1/3.6" to 1/1.8" sensor format
  • C/CS-Mount housed
  • Lowest cost USB 3.0 models with GPIO
IDS Imaging uEye SE Rev 4 GigE uEye SE Rev 4 GigE
  • VGA to 12.3MP Aptina/Sony/OnSemi/e2V CMOS sensors
  • 1/3.6" to 1.1" sensor format
  • 120MB image memory for multi-camera flexibility
  • Integrated PoE & FPGA/LUT
IDS Imaging uEye CP USB 3.0 Cameras uEye CP USB 3.0 Cameras
  • VGA to 18MP Aptina/Sony/OnSemi/e2V/CMOSIS CMOS sensors
  • 1/3.6" to 1" sensor format
  • USB 3.0, 420 MB/s data transfer
  • 128MB image memory for multi-camera flexibility
IDS Imaging uEye SE GigE Cameras uEye SE GigE Cameras
  • VGA to 10MP Aptina/Sony/OnSemi/e2V CMOS sensors
  • 1/3.6" to 1/1.8" sensor format
  • 60MB image memory for multi-camera flexibility
  • Non-PoE
IDS Imaging uEye LE USB 2.0 Cameras uEye LE USB 2.0 Cameras
  • VGA to 10.5MP Aptina/OnSemi/e2V CMOS sensors
  • 1/3" to 1/1.8" sensor format
  • C/CS-Mount ABS housed & M12/No-mount board level
  • Lowest cost USB models

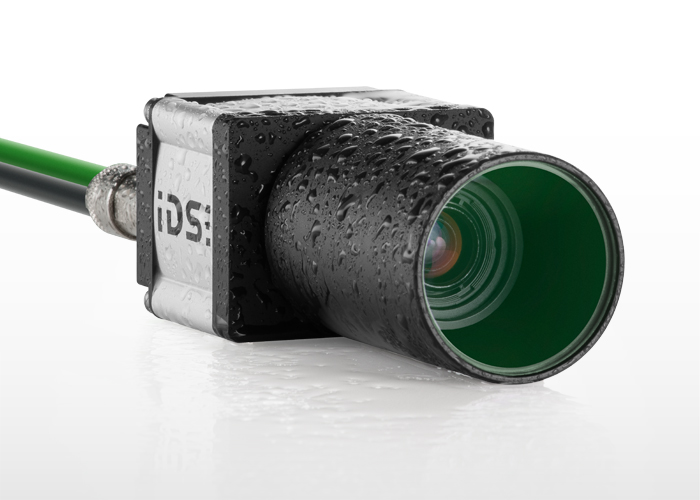

IDS Imaging uEye FA GigE Cameras uEye FA GigE Cameras
  • VGA to 12.3MP Aptina/Sony/OnSemi/e2V CMOS sensors
  • 1/3.6" to 1" sensor format
  • 120MB image memory for multi-camera flexibility
  • IP 65/67 rated for dust/mist environments
IDS Imaging UEye XS USB 2.0 Autofocus Cameras UEye XS USB 2.0 Autofocus Cameras
  • 5MP autofocus USB 2.0 camera
  • 1920 x 1080 @ 15 fps
  • 1/4" sensor w/ 60 degree FOV
  • Smallest 23 x 26.5 x 21.6mm magnesium housing
IDS Imaging uEye RE GigE Cameras uEye RE GigE Cameras
  • VGA to 10.5MP Aptina/OnSemi/e2V CMOS sensors
  • 1/3" to 1/1.8" sensor format
  • 60MB image memory for multi-camera flexibility
  • IP 65/67 rated for dust/mist environments
IDS Imaging USB 3.1 Gen1 Type C SE Cameras USB 3.1 Gen1 Type C SE Cameras
  • 5 to 12MP Sony IMX CMOS sensors
  • 2/3" to 1.1" sensor format
  • C-mount metal housing, 29x29x29mm w/ C-mount
  • USB 3.1 Gen1 w/ Type C connector
IDS Imaging uEye LE Board Level GigE Cameras uEye LE Board Level GigE Cameras
  • 1.3 to 5MP Aptina/OnSemi/e2V CMOS sensors
  • 1/2" to 1/1.8" sensor format
  • M12/C/CS/No-Mount board level
  • Lowest cost GigE models
IDS Imaging uEye ML USB 2.0 Cameras uEye ML USB 2.0 Cameras
  • 1.3 to 2MP e2V CMOS sensors
  • 1/1.8" sensor format
  • C/CS-Mount housed
  • Lowest cost USB 2.0 models with GPIO
IDS Imaging USB Video Class Camera USB Video Class Camera
  • 2MP Aptina CMOS rolling shutter color sensor
  • 1/3" sensor format
  • 1600 x 1200 @ 15 fps
  • M12 mount or board level
IDS Imaging uEye SE USB 2.0 Cameras uEye SE USB 2.0 Cameras
  • VGA to 10.5MP Aptina/ON Semi/e2V CMOS sensors
  • 1/3" to 1/1.8" sensor formats
  • 32MB/sec USB 2.0 image acqusition rate
  • C-mount metal housing, 34 x 32 x 41.3mm
