IDS Imaging uEye Live SFA SFA10.69.G1.IMX678 IP69K

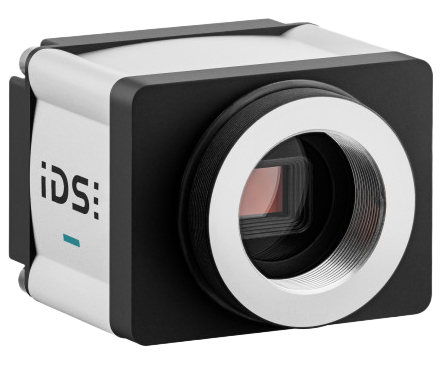

The IDS uEye Live SFA10.69.G1.IMX678 is a rugged industrial streaming and recording camera designed for reliable process monitoring in demanding environments. Featuring the 8.29 MP Sony STARVIS 2 IMX678 rolling shutter CMOS sensor with 3840x2160 resolution, 1/1.8" optical format, and 2.0 µm pixels, the camera provides excellent image quality and low-light performance. Its rugged IP69K-rated housing protects against dust and high-pressure water, while screw-lock connectors provide secure connections in challenging industrial environments.
Like other IDS uEye Live streaming and recording cameras, the SFA10.69.G1.IMX678 operates as a standalone monitoring solution with video streaming, hardware-accelerated encoding, and event-based recording without requiring an additional PC. Multiple independently configurable video streams provide flexibility for live monitoring and process analysis. Power over Ethernet (PoE) supplies data and power over a single Ethernet cable up to 100 meters, simplifying installation in production and automation environments.
IDS Imaging uEye Live SCP, SLE & SFA Monitoring Cameras
No programming or PC required! Features
SFA10.69.G1.IMX678 Camera Features
| Manufacturer: | IDS | Model: | SFA10.69.G1.IMX678 | Total Pixels: | 8,294,400 |
| Resolution: | 3840 (h) 2160 (v) | Sensor Size: | 1/1.8" | Color/B & W: | Color |
| Frame Rate (fps): | 30 | Sensor Type: | CMOS | Sensor Device: | Sony IMX678 |
| Pixel Size(µm): | 2(h) 2(v) | A/D Bits: | 12 | Shutter Speed: | 0.029 ms - 33.299 ms |
| Interface: | GigE | Voltage(VDC): | 12 V - 24 V or PoE | Power(watts): | 4 W PoE | 3.9 W Ext. |
| Lens Mount: | C | Shutter Type: | Rolling | Weight(grams): | 175 |
| S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | 42.7Lx53Wx41H |
SFA10.69.G1.IMX678 Datasheet
