GigE Area scan camera IDS Imaging GV-5890FA-M/C IDS Imaging GV-5890FA Rev 1.2
uEye+
GigE Camera
Sony IMX226 Sensor
4000x3000 Resolution
Area Scan Camera

get a quote for this product
The GV-5890FA GigE camera features a Sony IMX226 1/1.8" 12 megapixel rolling shutter CMOS sensor, a 1.85 µm pixel size, 10 fps at full 4000x3000 resolution. The GV-5890FA is available in color or monochrome.

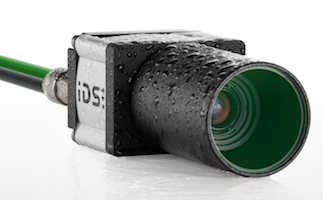

uEye FA IP65/67 GigE cameras with IP65/67 protection are built to withstand the demands of harsh environments, and are well-suited for many industrial applications, such as factory automation, inspection and quality assurance. They are also an excellent option for multi-camera systems, due to the integrated image memory, on-board pixel pre-processing, LUT and Gamma functions which reduce the workload on the host computer.

uEye FA IP65/67 GigE Camera Family Features Features

  • Up to 25 megapixel CMOS sensors
  • 1/3.6" to 4/3" sensor format
  • 120MB image memory for multi-camera flexibility
  • IP 65/67 rated for dust/mist environments

GV-5890FA-M/C Camera Features

  • 12 megapixel at 4000x3000 resolution
  • Sony IMX226 1/1.8" CMOS sensor
  • 10 fps
    • GV-5890FA-M-GL (B&W) Datasheet   GV-5890FA-C-HQ_.pdf Datasheet GV-5890FA-M/C Manual Sensor Spec
    Software All IDS Cameras
    Manufacturer: IDS Model: GV-5890FA-M/C Total Pixels: 12,000,000
    Resolution: 4000 (h) 3000 (v) Sensor Size: 1/1.8" Color/B & W: Color / Monochrome
    Frame Rate (fps): 10 Sensor Type: CMOS Sensor Device: Sony IMX226
    Pixel Size(µm): 1.85(h) 1.85(v) A/D Bits: 12 Shutter Speed: 0.130 ms - 2000 ms
    Interface: GigE Voltage(VDC): 12 V - 24 V or PoE Power(watts): 2.1 W - 3.3 W
    Lens Mount: C Shutter Type: Rolling Weight(grams): 173
    S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): 42.7Lx53Wx41H

    IDS Camera Resources


    click to calculate FOV/FL for this camera

    Lens Calculator



    Click to see our wide selection of camera accessories Camera Accessories
