GigE Area scan camera IDS Imaging GL-54J1SLE-MB IDS Imaging uEye Live SCP GL-54J1SLE-MB
Streaming & recording camera for process monitoring
GigE Camera
Sony IMX678 Sensor
1920x1080 Resolution
Area Scan Camera

get a quote for this product

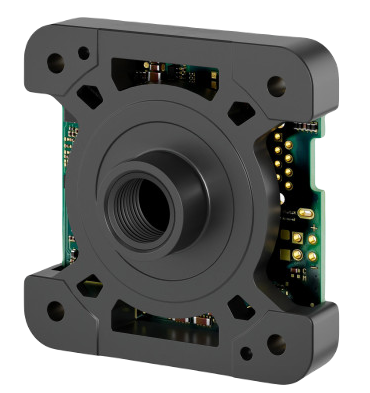

The IDS Imaging uEye Live SLE GL-54J1SLE-MB camera, a compact motherboard version of the GV-54J1SLE single board camera, is designed for process monitoring in embedded systems. The camera is particularly suitable for applications with very tight or angled space constraints. As an additional option, the camera's motherboard can be connected to a daughterboard with a Flex ribbon cable.

The uEye Live SLE GL-54J1SLE-MB motherboard camera with an S-mount lens mount features a Sony IMX678 8.39 megapixel 1/1.8" rolling shutter color sensor with a 2µm pixel size and a GigE interface. This camera captures clear, crisp images at 30 fps with 1920x1080 resolution, even in low-light conditions.

IDS Imaging uEye Live SCP / SLE cameras provide continuous monitoring with event-triggered video recording, and are specifically built for process monitoring applications. These industrial cameras utilize SoC (System on a Chip) technology for on-board image processing that eliminates the need for complex programming or a PC, and deliver stable live streams with consistent high-resolution image quality.

IDS Imaging uEye SCP / SLE streaming & recording cameras
No programming or PC required! Features

  • Designed for process monitoring
  • Event recording for process monitoring and analysis
  • SoC (System on Chip) technology for continuous monitoring
  • Plug n Stream - easy set up & configuration with any web browser

GL-54J1SLE-MB Camera Features

  • Sony IMX678 8.39 megapixel 1/1.8" rolling shutter sensor
  • Board-level camera with an S-mount lens mount
  • 1920x1080 resolution
  • 2µm pixel size
Manufacturer: IDS Model: GL-54J1SLE-MB Total Pixels: 2,073,600
Resolution: 1920 (h) 1080 (v) Sensor Size: 1/1.8" Color/B & W: Color
Frame Rate (fps): 30 Sensor Type: CMOS Sensor Device: Sony IMX678
Pixel Size(µm): 2(h) 2(v) A/D Bits: 12 Shutter Speed: 0.031 ms - 33.333 ms
Interface: GigE Voltage(VDC): 12 V - 24 V Power(watts): 3.7 W - 4 W
Lens Mount: S Shutter Type: Rolling Weight(grams): 27
S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): 23.5Lx50Wx50H
