GigE Area scan camera IDS Imaging GL-54J1SLE IDS Imaging uEye Live SCP GL-54J1SLE
Streaming & recording camera for process monitoring
GigE Camera
Sony IMX678 Sensor
1920x1080 Resolution
Area Scan Camera

get a quote for this product

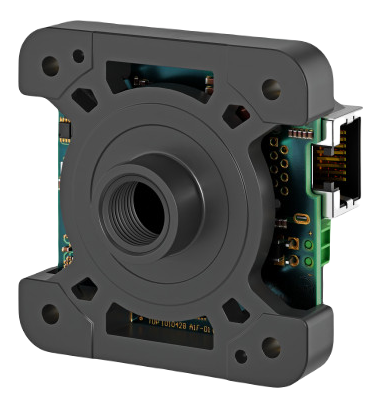

The IDS Imaging uEye Live SLE GL-54J1SLE camera is a compact, lightweight board-level camera designed for process monitoring in embedded systems. This streaming and recording camera features an S-mount lens mount, a Sony IMX678 8.39 megapixel 1/1.8" rolling shutter color sensor with a 2µm pixel size, and a GigE interface. The camera captures clear, crisp images at 30 fps with 1920x1080 resolution, even in low-light conditions.

IDS Imaging uEye Live SCP / SLE cameras provide continuous monitoring with event-triggered video recording, and are specifically built for process monitoring applications. These industrial cameras utilize SoC (System on a Chip) technology for on-board image processing that eliminates the need for complex programming or a PC, and deliver stable live streams with consistent high-resolution image quality.

IDS Imaging uEye SCP / SLE streaming & recording cameras
No programming or PC required! Features

  • Designed for process monitoring
  • Event recording for process monitoring and analysis
  • SoC (System on Chip) technology for continuous monitoring
  • Plug n Stream - easy set up & configuration with any web browser

GL-54J1SLE Camera Features

  • Sony IMX678 8.39 megapixel 1/1.8" rolling shutter sensor
  • Board-level camera with an S-mount lens mount
  • 1920x1080 resolution
  • 2µm pixel size
Manufacturer: IDS Model: GL-54J1SLE Total Pixels: 2,073,600
Resolution: 1920 (h) 1080 (v) Sensor Size: 1/1.8" Color/B & W: Color
Frame Rate (fps): 30 Sensor Type: CMOS Sensor Device: Sony IMX678
Pixel Size(µm): 2(h) 2(v) A/D Bits: 12 Shutter Speed: 0.031 ms - 33.333 ms
Interface: GigE Voltage(VDC): 12 V - 24 V Power(watts): 3.7 W - 4 W
Lens Mount: S Shutter Type: Rolling Weight(grams): 30
S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): 28.5Lx50Wx50H
