Allied Vision hr49CCL
Allied Vision HR Series hr49CCL Camera Link industrial camera, formerly manufactured by SVS-Vistek, features a color Gpixel GMAX3265-49 global shutter CMOS image sensor with 49 MP ( 7008x7000 ) resolution, 3.2 µm pixels, a M58x0.75 lens mount, and frame rates up to 17 fps. Designed for demanding machine vision applications, the hr49CCL delivers exceptional image quality for semiconductor inspection, electronics inspection, precision metrology, display inspection, and scientific imaging. Compatible with the Camera Link standard, the hr49CCL integrates easily into high-performance machine vision systems requiring high-resolution imaging, deterministic data transfer, and reliable industrial operation.

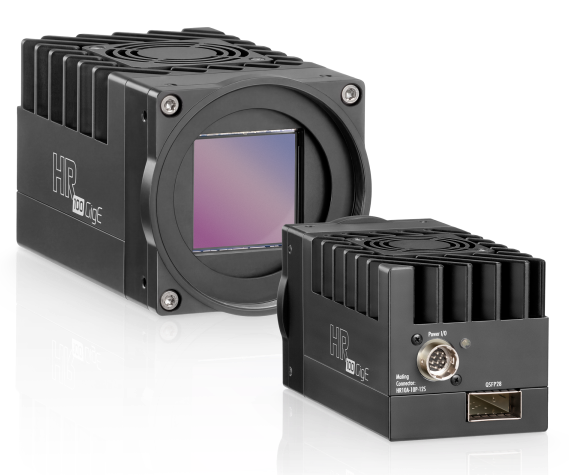

The Allied Vision HR cameras includes models with 10GigE, 100GigE, Camera Link, and CoaXPress interfaces. Depending on the model, cameras are available with M58, Flat Front (FF), or Canon RF lens mount configurations and Sony, Gpixel, or ON Semi CMOS image sensors in monochrome or color versions.
Allied Vision HR Series High Resolution cameras Features
hr49CCL Camera Features
| Manufacturer: | Allied Vision | Model: | hr49CCL | Total Pixels: | 49,056,000 |
| Resolution: | 7008 (h) 7000 (v) | Sensor Size: | 37.4mm | Color/B & W: | Color |
| Frame Rate (fps): | 17 | Sensor Type: | CMOS | Sensor Device: | Gpixel GMAX3265-49 |
| Pixel Size(µm): | 3.2(h) 3.2(v) | A/D Bits: | 10 | Shutter Speed: | call |
| Interface: | Camera Link | Voltage(VDC): | 10 to 25 VDC | Power(watts): | 9 W (typical) |
| Lens Mount: | M58x0.75 | Shutter Type: | Global | Weight(grams): | 420 |
| S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | 76Lx70Wx70H |
hr49CCL Datasheet
