Allied Vision

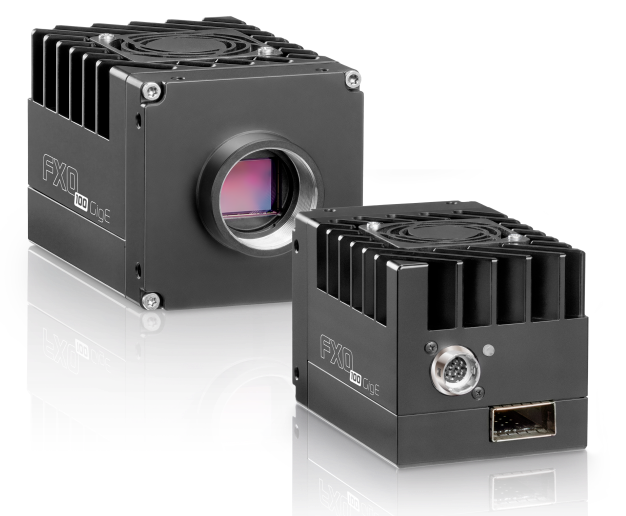

The Allied Vision fxo926C100GE (Color, C-mount) and fxo926M100GE (Monochrome, C-mount), fxo926C100GE-FF (Color, Flat Front), and fxo926M100GE-FF (Monochrome, Flat Front) 100GigE camera features a Sony Pregius S IMX926 1/1.1" CMOS global shutter sensor with 12.3 megapixel (4096x3008 resolution), maximum 660.8 frame rate, and a 2.74 µm pixel size.
Allied Vision FXO GigE cameras combine advanced Sony Pregius S sensors with ultra-high-speed Ethernet connectivity to deliver exceptional image quality, fast data transfer, and reliable performance, providing a flexible and scalable imaging platform for next-generation machine vision systems. These GigE Vision and GenICam compliant FXO cameras are available with 10GigE, 25GigE, or 100GigE interfaces, and color, monochrome, or SWIR configurations.
FXO 10GigE, 25GigE & 100GigE Cameras Features
fxo926C100GE - fxo926M100GE Camera Features
fxo926C100GE (Color) Datasheet
fxo926M100GE (B&W) Datasheet
fxo926C100GE - fxo926M100GE Manual
fxo926M100GE-FF (Flat Front B&W) Datasheet
fxo926C100GE-FF (Flat Front Color) Datasheet
Sensor Spec
| Manufacturer: | Allied Vision | Model: | fxo926C100GE - fxo926M100GE | Total Pixels: | 12,320,768 |
| Resolution: | 4096 (h) 3008 (v) | Sensor Size: | 1/1.1" | Color/B & W: | Color / Monochrome |
| Frame Rate (fps): | 660.8 | Sensor Type: | CMOS | Sensor Device: | Sony IMX926 |
| Pixel Size(µm): | 2.74(h) 2.74(v) | A/D Bits: | 12 | Shutter Speed: | 4µs to 60 s |
| Interface: | 100GigE | Voltage(VDC): | 24 to 25VDC | Power(watts): | 26 W |
| Lens Mount: | C-mount or Flat Front | Shutter Type: | Global | Weight(grams): | 450 |
| S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | 101Lx58Wx58H |
