The Gidel Proc10A-40GigE FPGA-based frame grabber, based on the Intel Arria 10 FPGAs provides immense processing power and plentiful memory to satisfy the highest performance and bandwidth requirements demanded by real-time image processing.
With eight CXP-6 links this ultra-high bandwidth frame grabber can achieve an aggregated bandwidth of up to 50 GB/s. This frame grabber features a PCIe Gen. 3 x 8 host bus and immense image buffers (up to 32 GB) with real-time compression, and the capability to offload Regions Of Interest (ROI) for enhanced bandwidth utilization. In addition, the Proc10A_CXP-6 supports the use of eight 500+ MPixels/s Gidel Lossless and JPEG encoders, effectively doubling pixel frequency. Like all Gidel FPGA-based frame grabbers, you can choose from Plug-n-Play frame grabbers to highly customized modular solutions.
Gidel FPGA frame grabbers offer real-time, high-bandwidth vision and image processing. Their frame grabbers range from economical off-the-shelf frame grabbers to high-performance, multi-camera custom solutions with 10GigE or CoaXPress interfaces. Development is streamlined with the ProcFG and InfiniVision SDK, which includes GUIs, APIs, and libraries with support for complex multi-camera setups, advanced image processing, and compression.
Contact us to learn more about the Gidel’s frame grabber options, and whether a ready-to-use, standard, or customized frame grabber is best for your application.
Proc10A-CXP-6 GigE Frame Grabber Datasheet
| Camera Interface | 8x CoaXPress 1.1 (cXp-6), PoCXP |
| Image Formats | Mono, Bayer, RGBA (8, 10, 12, 14 and 16 bits/color) and RGB (8, 10 and 12bits/ color) |
| Max. Resolution |
Horizontal: 16 K pixels (64-bit) Vertical: 65 K lines |
| Acquisition Rate | Up to 5 Gb/s |
| Host Bus | PCIe x8 Gen. 3 |
| Frame Buffer | 1-32 GB |
| Camera Types | Area and Line Scan |
| Connectors | 4 or 8x Micro BNC 2x GPIO connectors Optional QSFP+ and SFP+ |
| MTBF (with passive cooling) | > million hours |
| Form Factor | PCIe half-length |
| GPIO | RS422, opto-couplers, current sink drivers, bi-directional I/Os |
| Advanced Features | |
|---|---|
| ROI | Selective ROI acquisition |
| Optional Features | |
| Image processing | Image processing code on Intel Arria 10 FPGA (270, 660 and 1150) |
| Image Compression | Lossless, JPEG, Quality+, and 3rd party encoding |
| Ecosystem support | |
| ProcVision | ProcVision Kit enabling tailoring, debugging, and verifying of the FPGA image processing and data flow |
| InfiniVision/ProcFG Grabbers | InfiniVision and ProcFG software and APIs |
| GenICam | Supports GenICam GenTL API |
| Third-party libraries | Support for third-party software, including MVTec Halcon machine vision software |
| Grabber architecture type |
The Gidel Frame Grabber boards can operate in one of two unique Frame Grabber architectures, ProcFG or InfiniVision, by reprogramming the firmware. Grabber option #1: InfiniVision
Grabber option #2: ProcFG
|
| FPGA Option | Open FPGA | Closed FPGA |
| FPGA Type | Arria 10 270 | Arria 10 660 | Arria 10 1150 |
Contact us if you need a customized solution!
SDK: The ProcFG and InfiniVision are each supported by their unique GUI and API suite for developing user applications.
FPGA Programming Suite: The Gidel grabber boards are supported by the ProcVision Suite enabling tailoring, debugging, and verification of the FPGA image processing and data flow.
Customization can be based on the InfiniVision or ProcFG flow, and can include multi-instances for supporting unique multi-camera topologies, as well as, image processing and compression.

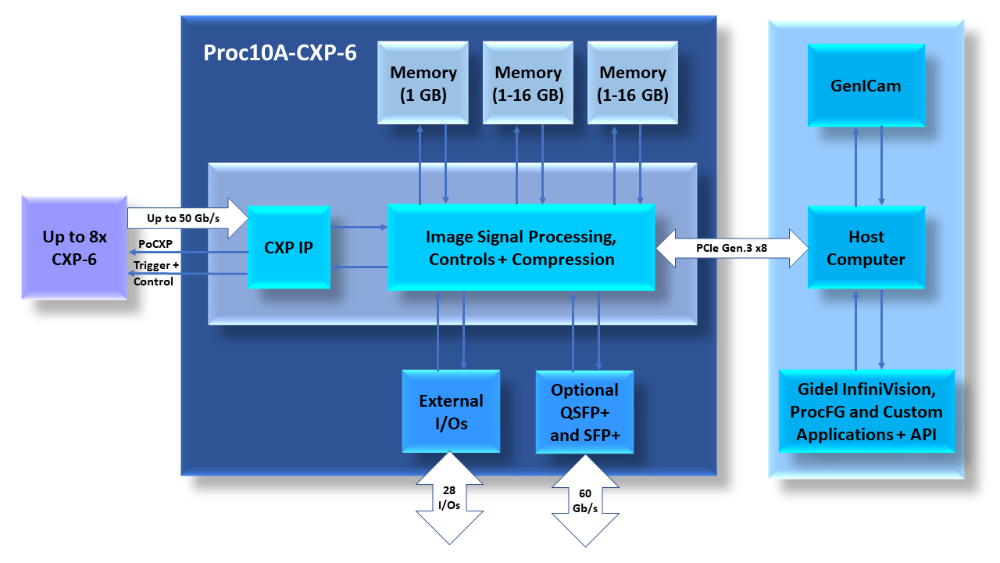

Example of a typical Proc10A-CXP-6 GigE frame grabber acquisition and processing system
