The Gidel Proc10A-40GigE FPGA-based frame grabber offers ultra-high bandwidth, integrating four 10 GigE links with speeds up to 40 Gb/s. It features a PCIe Gen. 3 x 8 host interface and immense image buffers (up to 32 GB) with real-time compression, and the capability to offload Regions Of Interest (ROI) for enhanced bandwidth utilization. The Proc10A-40GigE supports four Gidel Lossless and JPEG encoders, each processing over 500 MPixels/s, effectively doubling pixel frequency.
The Proc10A-40GigE, based on Intel Arria 10 FPGAs, features immense processing power and plentiful memory to satisfy the highest performance and bandwidth requirements demanded by real-time image processing.
The customizable frame grabber board offers multi-level modularity with embedded modules for specific application requirements, and includes critical functions like HDR, dynamic white balance, various compression options (JPEG, lossless, Quality+), plus other ISP options. In addition, the Gidel ProcVision suite provides advanced FPGA development capabilities, including the creation of customized acquisition paths and image processing solutions.
Gidel FPGA frame grabbers offer real-time, high-bandwidth vision and image processing. Their frame grabbers range from economical off-the-shelf frame grabbers to high-performance, multi-camera custom solutions with 10GigE or CoaXPress interfaces. Development is streamlined with the ProcFG and InfiniVision SDK, which includes GUIs, APIs, and libraries with support for complex multi-camera setups, advanced image processing, and compression.
Contact us to learn more about the Gidel’s frame grabber options, and whether a ready-to-use, standard, or customized frame grabber is best for your application.
Proc10A-40GigE Frame Grabber Datasheet
| Camera Interface | 4 or 6 x 10 GigE Links |
| Advanced Features | Link Aggregation mode Chunk Data Selective ROI acquisition Option for on-FPGA compression |
| Image Formats | Mono, Bayer, RGBA (8, 10, 12, 14 and 16 bits/color) and RGB (8, 10 and 12 bits/ color) |
| Max. Resolution | Horizontal: 16 K pixels (64-bit) Vertical: 65 K lines |
| Acquisition Rate | Up to 20 Gb/s |
| Host Bus | PCIe half length |
| Frame Buffer | 2 - 32 GB |
| Camera Types | Area and Line Scan |
| Form Factor | PCIe low-profile |
| Connectors | QSFP+ and 2 x SFP+ |
| GPIO | 12x LVTTL |
| OS Support |
Win 10 and 11 Linux (kernel 2.6.x- 5.19) Linux version doesn’t include the ProcFG/InfiniVision GUI |
| Grabber architecture type |
The Gidel Frame Grabber boards can operate in one of two unique Frame Grabber architectures, ProcFG or InfiniVision, by reprogramming the firmware. Grabber option #1: InfiniVision
|
| Camera interface connector | SFP+ | RJ45 |
| FPGA Option | Optional on-FPGA processing using Gidel's libraries (IPs), Gidel's tailored library functions (IPs), or user customized IPs |
| FPGA Type | Arria 10 160 | Arria 10 480 |
Contact us if you need a customized solution!
SDK: The ProcFG and InfiniVision are each supported by their unique GUI and API suite for developing user applications.
FPGA Programming Suite: The Gidel grabber boards are supported by the ProcVision Suite enabling tailoring, debugging, and verification of the FPGA image processing and data flow.
Customization can be based on the InfiniVision or ProcFG flow, and can include multi-instances for supporting unique multi-camera topologies, as well as, image processing and compression.

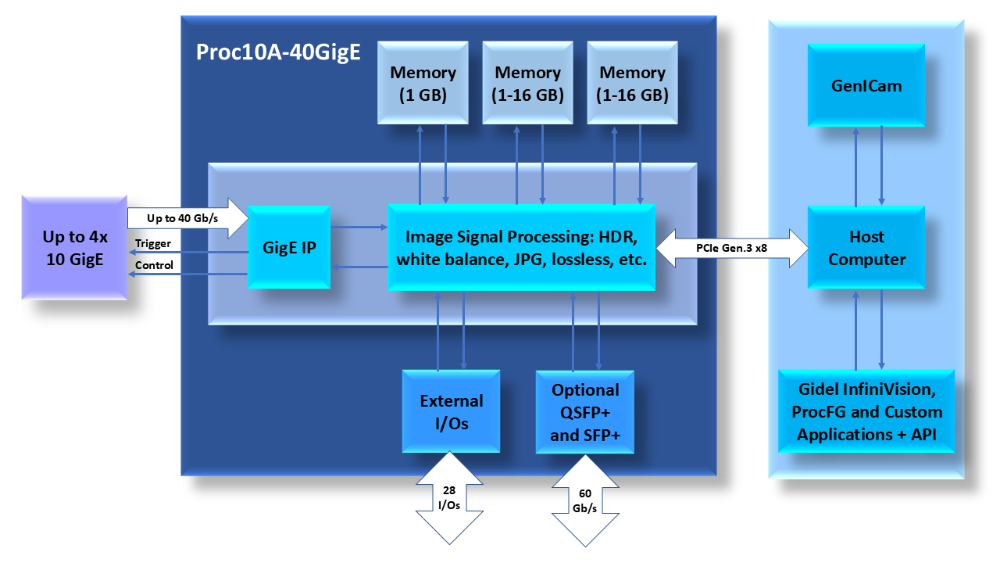

Example of a typical Proc10A-40GigE frame grabber acquisition and processing system
