The Gidel HawkEye-CXP-12 CoaXPress FPGA-based frame grabber is designed to satisfy the highest performance and bandwidth requirements demanded by diverse FPGA-based image processing systems.
The HawkEye-CXP-12 features up to four CoaXPress (CXP-12/CXP-6) links that can be connected to 1 to 4 CXP-12 cameras. The PCIe Gen. 3 x8 host bus enables CPU-free, ultra-fast offload bandwidth. The frame grabber’s acquisition bandwidth and image processing capabilities are further enhanced by the large data buffers (up to 16 GB), built on a powerful Intel Arria 10 FPGA. Like all Gidel FPGA-based frame grabbers, you can choose from Plug-n-Play frame grabbers to highly customized modular solutions.
Gidel FPGA frame grabbers offer real-time, high-bandwidth vision and image processing. Their frame grabbers range from economical off-the-shelf frame grabbers to high-performance, multi-camera custom solutions with 10GigE or CoaXPress interfaces. Development is streamlined with the ProcFG and InfiniVision SDK, which includes GUIs, APIs, and libraries with support for complex multi-camera setups, advanced image processing, and compression.
Contact us to learn more about the Gidel’s frame grabber options, and whether a ready-to-use, standard, or customized frame grabber is best for your application.
HawkEye-CXP-12 Frame Grabber Datasheet
| Camera Interface | 4x CoaXPress (cXp -12/6), PoCXP |
| Image Formats | Mono, Bayer, RGBA (8, 10, 12, 14 and 16 bits/color) and RGB (8, 10 and 12bits/ color) |
| Max. Resolution |
Horizontal: 16 K pixels (64-bit) Vertical: 65 K lines |
| Acquisition Rate | Up to 50 Gb/s |
| Host Bus | PCIe x8 Gen. 3 |
| Frame Buffer | 1-16 GB |
| Camera Types | Area and Line Scan |
| MTBF | > million hours |
| Operating Ambient Temperature | 0 – 54°C, relative humidity up to 90% (non-condensing) |
| Form Factor | PCIe low-profile |
| Connectors | 1, 2, or 4x HD-BNC VGA15-pin I/O |
| GPIO | RS422, opto-coupler, LVTTL and 30V at 0.9A |
| Advanced Features | |
|---|---|
| ROI | Selective ROI acquisition |
| Optional Features | |
| Image processing | For open FPGA grabber version, option for adding image processing code on Intel Arria 10 FPGA |
| Ecosystem support | |
| ProcVision | ProcVision Kit enabling tailoring, debugging, and verifying of the FPGA image processing and data flow |
| Image Compression | JPEG, Lossless, and Quality+ |
| InfiniVision/ProcFG Grabbers | InfiniVision and ProcFG software and APIs |
| GenICam | Supports GenICam GenTL API |
| Halcon | Support for MVTec Halcon machine vision software |
| Grabber architecture type |
The Gidel Frame Grabber boards can operate in one of two unique Frame Grabber architectures, ProcFG or InfiniVision, by reprogramming the firmware. Grabber option #1: InfiniVision
Grabber option #2: ProcFG
|
| FPGA Option | Open FPGA | Closed FPGA |
| FPGA Type | Arria 10 160 | Arria 10 480 |
| Power | PoCXP 32W | PoCXP 42W |
| Cooling | Active (fan) | Passive |
| CXP Links | 1, 2, or 4 CXP-12 links |
Contact us if you need a customized solution!
SDK: The ProcFG and InfiniVision are each supported by their unique GUI and API suite for developing user applications.
FPGA Programming Suite: The Gidel grabber boards are supported by the ProcVision Suite enabling tailoring, debugging, and verification of the FPGA image processing and data flow.
Customization can be based on the InfiniVision or ProcFG flow, and can include multi-instances for supporting unique multi-camera topologies, as well as, image processing and compression.

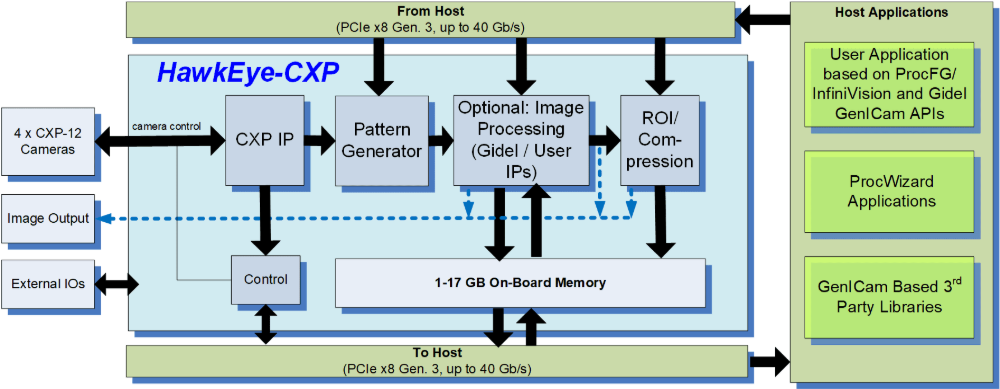

Example of a typical HawkEye-CXP-12 frame grabber acquisition and processing system
