Schneider Optics TOURMALINE 1.3" Lenses
TOURMALINE 2.8/16mm TFL-mount Lens / TOURMALINE 2.8/16mm TFL

The Schneider Optics 23-1098691 TOURMALINE 2.8/16mm 1.3" TFL-mount Lens is a 16mm 12 megapixel lens with a M49x0.75 filter size, and -0.1% distortion.

TOURMALINE 1.3" Lenses are available as C-mount or TFL-mount lenses. They feature a compact design, high resolution down to 2.4 µm pixel size, and are visibly corrected and broadband coated for use in the 400-1000nm (Visible through Near IR spectrum) range. The optical design with a low chief ray angle prevents shading and supports all generations of SONY Pregius sensors.

Schneider Optics TOURMALINE 2.8/16mm TFL lens
get a quote for this product

Manufacturer: Schneider Optics
Manufacturer PN: TOURMALINE 2.8/16mm TFL
Focal Length: 16mm
Quality: 12MP
Sensor Size: 1.3"
Lens Mount: TFL
F Stop: 2.8
M.O.D. (m): .15
Dimensions (LxW mm): 39x72.3
Weight (grams): 204
Iris type: smooth
Filter size: M49x0.75
Distortion: -0.1%
Resolution: 12MP


Datasheet

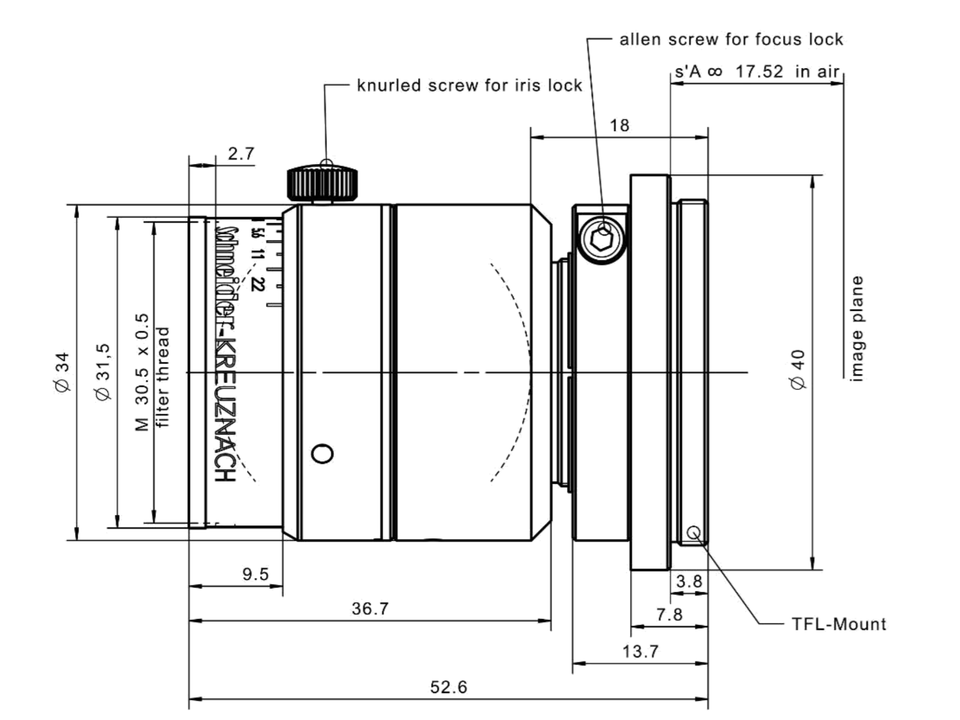

Lens Outline Drawing
