Schneider Optics THULITE Large Format Lenses

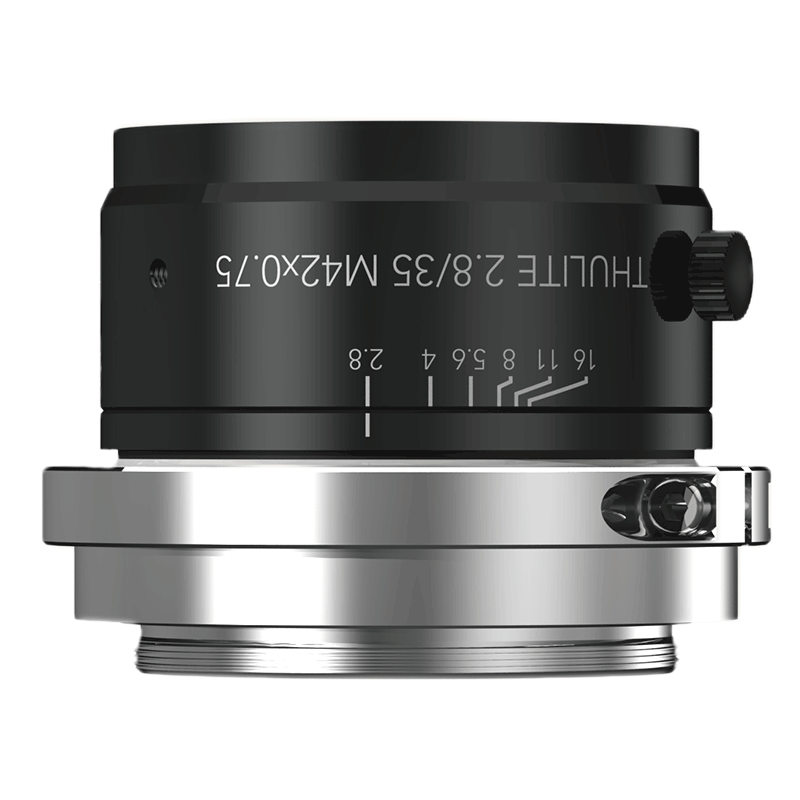

Schneider Optics THULITE 2.8/35 M42x0.75 35mm lens

The Schneider Optics THULITE 2.8/35 M42x0.75 lens is a large format high resolution lens with a 2" / 32 mm sensor size, 35 mm focal length, M42x0.75 lens mount, and a M43x0.75 filter thread.

Schneider Optics THULITE large format lenses are high resolution lenses for sensors up to 2" (32 mm diagonal). THULITE lenses are available in 30mm, 50mm, 75mm focal lengths with an M42-mount or TFL-mount mount. The THULITE lens optical design with a special broadband AR coating enables them to be used in the visible and NIR illumination range. Their compact, robust design makes them suitable for industrial applications in harsh environments, such as machine vision, robotic vision, and inspection.

Schneider Optics THULITE 2.8/35 M42x0.75 lens

Manufacturer: Schneider Optics
Manufacturer PN: THULITE 2.8/35 M42x0.75
Focal Length: 35mm
Quality: -
Sensor Size: 32mm
Lens Mount: M42x0.75
F Stop: 2.8-16
M.O.D. (m): .2
Dimensions (LxW mm): 41.6x56
Iris type: Smooth
Filter size: M43x0.75
Distortion: call
Resolution: call
