Schneider Optics PYRITE V38-mount Large Area and Line Scan Lenses

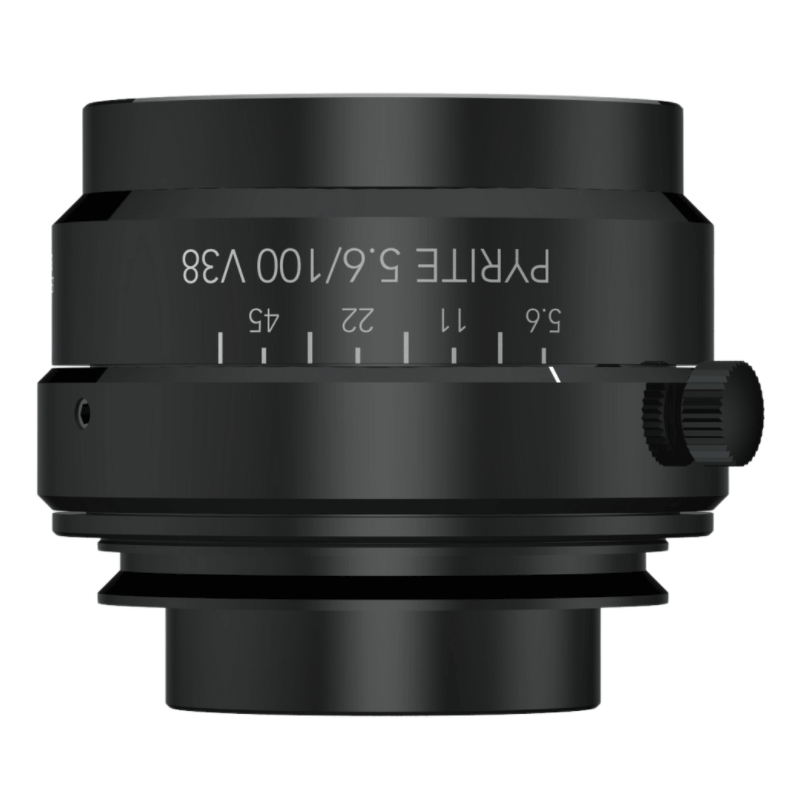

Schneider Optics PYRITE 5.6/100 V38 100mm lens

The Schneider Optics PYRITE 5.6/100 V38 lens features a 100 mm focal length, 100mm sensor size, .28 meter working distance, and a M37x0.75 filter thread.

Schneider Optics PYRITE V38 lenses are designed for large area and line scan sensors. PYRITE lenses feature high vibration resistance making them suitable in harsh environments for many industrial applications including inspection and logistics. Low distortion, and very low chromatic aberrations enable these lenses to capture uniform high quality images in a wide range of magnifications. PYRITE lenses have a V38-mount with a precise iris adjustment and locking mechanism. They are available in focal lengths from 28mm to 120mm for sensor diagonals that range from 30mm-100mm depending on the focal length.

Schneider Optics PYRITE 5.6/100 V38 lens

Manufacturer: Schneider Optics
Manufacturer PN: PYRITE 5.6/100 V38
Focal Length: 100mm
Quality: -
Sensor Size: 100mm
Lens Mount: V38
F Stop: 5.6-64
M.O.D. (m): .28
Dimension (L x W): 40x46
Iris type: Smooth
Filter size: M37x0.75
Distortion: call
Resolution: call
