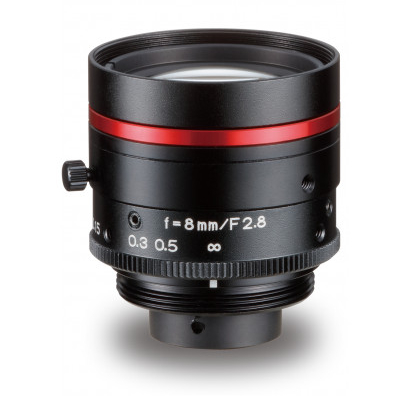

Kowa LM-JC5MC 2/3" 5MP Ultra Compact C-mount Lens
Kowa LM8JC5MC 5 Megapixel 8mm lens

The Kowa LM8JC5MC 2/3" lens is an 8mm 5 megapixel lens with -0.85% distortion, and 160/100 resolution.

LM-JC5MC 2/3" 5MP Ultra Compact C-mount lenses are one of the smallest and lightest 5 megapixel lenses. They are suitable for sensors with a pixel sizes from 3.5 µm and up including Sony IMX250, IMX252, IMX264, IMX265 sensors. Their mechanical design protects the lens from vibration and shocks that occur in industrial environments. The F-stop settings can easily be changed with the with a click-type iris mechanism.

Kowa LM8JC5MC lens

Manufacturer: Kowa
Manufacturer PN: LM8JC5MC
Focal Length: 8mm
Quality: 5MP
Sensor Size: 2/3"
Lens Mount: C
F Stop: 2.8-16
M.O.D. (m): 0.15
Dimension (L x W): 32X27
Iris type: Smooth
Filter size: M30.5x0.5
Distortion: -0.85%
Resolution: 160/100
