Kowa LM6NCM 1/2" 3 Megapixel 6mm lens
Kowa Megapixel JCM Lens

The Kowa LM6NCM is a 6 mm lens with a M30.5 x 0.5 filter size, -0.20% distortion, 120/100 resolution.

The Kowa LM6NCM and the Kowa and Megapixel and 2/3 family features super high resolution, lowest cost megapixel lens, floating mechanism for accuracy from 5mm focal length, locking screws very low distortion, high mtf.

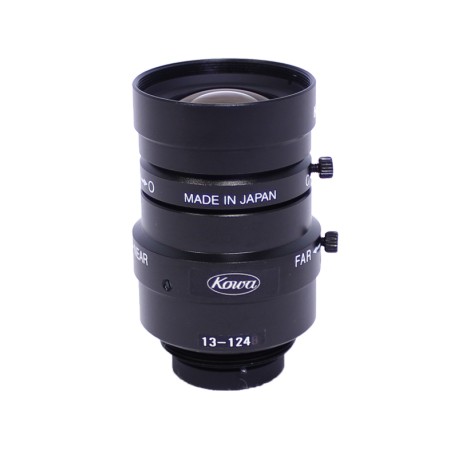

photo of the Kowa LM6NCM lens

get a quote for this product

Manufacturer: Kowa
Manufacturer PN: LM6NCM
Focal Length: 6mm
Quality: 3MP
Sensor Size: 1/2"
Lens Mount: C
F Stop: 1.2

M.O.D. (m): 0.1
Dimension (L x W): 34 x 46
Iris type: smooth
Filter size: M30.5 x 0.5
Distortion: -0.20%
Resolution: 120/100


Datasheet
