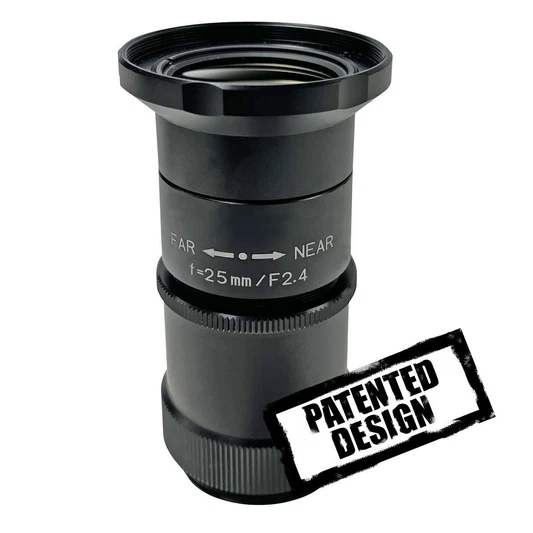

The Kowa LM25EC-IR is a 25 mm IR-corrected C-mount lens designed for high-resolution machine vision and imaging applications using sensors up to 1.2". Supporting resolutions up to 24 MP and pixel sizes down to 2.5 µm, the lens combines high-resolution, low-distortion imaging with IR correction across the visible and near-infrared spectrum from 400 to 1000 nm. The LM25EC-IR features manual focus from 0.5 m to infinity and interchangeable fixed iris plates for selecting the appropriate aperture for the imaging application.

Kowa EC-IR lenses are high-resolution, IR-corrected C-mount lenses supporting sensors up to 1.2", resolutions up to 24 MP, and 2.5 µm pixels. EC-IR industrial lenses provide low-distortion visible-to-NIR imaging from 400 to 1000 nm for machine vision, traffic, and other demanding imaging applications.
