Edmund Optics SilverTL™ Telecentric Lenses

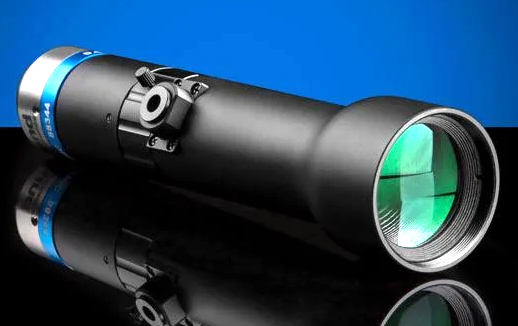

0.60X SilverTL™ Telecentric Lens / 56-678

The Edmund Optics 0.60X SilverTL™ #56-678 telecentric lens is a 7.5 megapixel lens with a 1/1.8 " lens format size, 0.1 meter minimum object distance, M40.5x0.50 (Female) filter thread, <0.035 typical distortion, and 0.60X magnification.

Edmund Optics SilverTL™ telecentric lenses are high resolution lenses designed for industrial applications where precise measurement is essential, such as production lines for inspection, measurement, gauging and image stitching tasks. SilverTL C-mount telecentric lenses are available in resolutions up to 7.5 megapixels for 1/2", 2/3", or 1/1.8" format sizes, and magnifications from 0.16X to 4X.

Edmund Optics 56-678 lens

Manufacturer: Edmund Optics
Manufacturer PN: 56-678
Focal Length: -
Quality: 7.5MP
Sensor Size: 1/1.8"
Lens Mount: C
F Stop: 6
M.O.D. (m): 0.1
Dimensions (LxW mm): 156x42
Iris type: smooth
Filter size: M40.5x0.50
Distortion: <0.035
Resolution: call

Lens Outline Drawing
