Computar/CBC V5028-MPY 1.1" 5 Megapixel 50mm lens
Computar MPY 1.1" 5MP Series Lenses


With support for 5MP 1.1" sensors, the Computar MPY, C-Mount, fixed focal length lens series provide excellent image sharpness with very low distortion. All lenses have filter threads and locking aperture and focus rings. The V5028-MPY is an 50mm lens optimized for a 3.45µm pixel pitch. The MPY series is the smallest 1.1" format lens for > 10MP cameras in the industry.

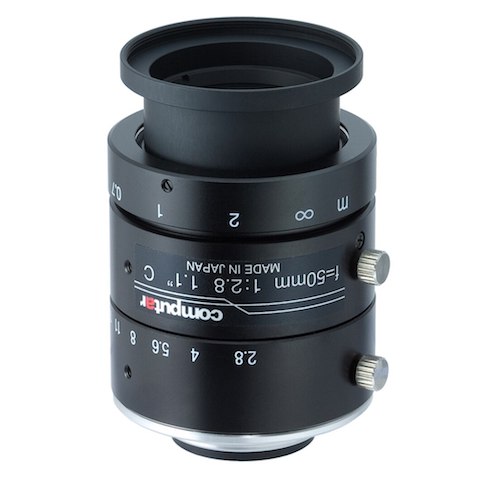

photo of the CBC V5028-MPY lens

get a quote for this product

Manufacturer: Computar/CBC
Manufacturer PN: V5028-MPY
Focal Length: 50mm
Quality: 5MP
Sensor Size: 1.1"
Lens Mount: C
F Stop: 2.8

M.O.D. (m): 0.5
Dimension (L x W): 39.5 x 45.1
Iris type: smooth
Filter size: M34 x 0.5
Distortion: 0.1%
Resolution: N/A


Datasheet
