Computar/CBC V1228-MPY2 1.1" 12 Megapixel 12mm lens
Computar MPY2 1.1" 5MP Series Lenses


With support for IMX253 and IMX304 sensor pixel sizes, the Computar MPY2 Series C-Mount fixed focal length lenses provide excellent image sharpness, low distortion, with short working distances. All lenses in this series have filter threads (except V0828-MPY2) and locking aperture and focus rings, which requires the VM0811 slip mount filter adapter. The Computar V1228-MPY2 is a 12mm lens.

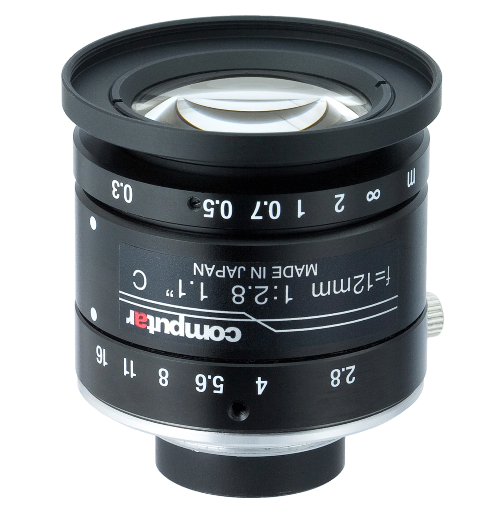

Computar/CBC V1228-MPY2 lens

Manufacturer: Computar/CBC
Manufacturer PN: V1228-MPY2
Focal Length: 12mm
Quality: 12MP
Sensor Size: 1.1"
Lens Mount: C
F Stop: 2.8

M.O.D. (m): 0.3
Dimension (L x W): 42x36.1
Iris type: smooth
Filter size: M40.5x0.5
Distortion: -0.5%
Resolution: 12MP


Datasheet
