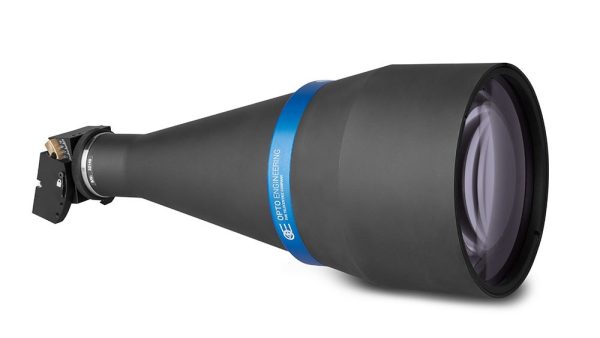

Opto Engineering TCSM bi-telecentric lenses are designed for 3D metrology applications that demand high precision and accuracy. The Scheimpflug tilt adjustment mechanism that's compatible with any C-mount camera, pivots around the detector plane's horizontal axis, providing pointing stability and ease of focusing. Even at wide tilt angles, excellent focus is attained with low distortion. TCSM lenses are available in magnifications from 0.5x to 0.1x with an angle of view from 30° to 45°.
Opto Engineering telecentric lenses include a wide variety of lenses for area and line scan cameras. Contact us if you would like help choosing the right lens for your industrial machine vision applications.
| Get Quote |
Part number |
Main optical specifications | Field of view, long sensor side horizontal |
Field of view, long sensor side vertical |
Advanced optical specifications | Mechanical specifications | Data Sheet |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Object tilt |
Mount tilt |
Horizontal mag. |
Vertical mag. |
Max sensor size |
1/3" | 1/2" | 2/3" | 1/3" | 1/2" | 2/3" | Working distance |
Working ƒ/N |
Telecentricity typical (max) |
Distortion typical (max) |
Mount | Phase adjustment |
Length | Front diameter |
|||
| 4.80 x 3.60 | 6.40 x 4.80 | 8.50 x 7.09 | 3.60 x 4.80 | 4.80 x 6.40 | 7.09 x 8.50 | ||||||||||||||||
| (deg) | (deg) | (x) | (x) | (mm × mm) | (mm × mm) | (mm × mm) | (mm × mm) | (mm × mm) | (mm × mm) | (mm) | (deg) | (%) | (mm) | (mm) | |||||||
| 1 | 2 | 3 | 4 | 5 | |||||||||||||||||
 | TCSM016 | 0 10 20 30 |
0 5.3 10.9 17.0 | 0.528 0.528 0.528 0.528 |
0.528 0.522 0.505 0.478 | 2/3" | 9.09 x 6.82 9.09 x 6.90 9.09 x 7.13 9.09 x 7.53 |
12.12 x 9.09 12.12 x 9.20 12.12 x 9.50 12.12 x 10.04 |
16.10 x 13.43 16.10 x 13.58 16.10 x 14.04 16.10 x 14.83 |
6.82 x 9.09 6.82 x 9.20 6.82 x 9.50 6.82 x 10.04 |
9.09 x 12.12 9.09 x 12.26 9.09 x 12.67 9.09 x 13.39 |
13.43 x 16.10 13.43 x 16.28 13.43 x 16.83 13.43 x 17.78 |
43.1 | 8 | < 0.06 (0.10) | < 0.04 (0.07) | C | Yes | 112.6 | 37.7 |  |
| TCSM024 | 0 15 30 45 | 0 5.4 11.4 19.3 |
0.350 0.350 0.350 0.350 |
0.350 0.340 0.309 0.262 |
2/3" | 13.71 x 10.29 13.71 x 10.59 13.71 x 11.65 13.71 x 13.74 |
18.29 x 13.71 18.29 x 14.12 18.29 x 15.53 18.29 x 18.32 |
24.29 x 20.26 24.29 x 20.85 24.29 x 22.94 24.29 x 27.06 |
10.29 x 13.71 10.29 x 14.12 10.29 x 15.53 10.29 x 18.32 |
13.71 x 18.29 13.71 x 18.82 13.71 x 20.71 13.71 x 24.43 | 20.26 x 24.29 20.26 x 25.00 20.26 x 27.51 20.26 x 32.44 |
67.2 | 8 | < 0.08 (0.10) | < 0.04 (0.10) | C | Yes | 137.5 | 44 | |
| TCSM036 | 0 15 30 45 |
0 3.7 8.0 13.6 |
0.243 0.243 0.243 0.243 |
0.243 0.235 0.212 0.177 |
2/3" | 19.75 x 14.81 19.75 x 15.32 19.75 x 16.98 19.75 x 20.34 |
26.34 x 19.75 26.34 x 20.43 26.34 x 22.64 26.34 x 27.12 | 34.98 x 29.18 34.98 x 30.17 34.98 x 33.44 34.98 x 40.06 |
14.81 x 19.75 14.81 x 20.43 14.81 x 22.64 14.81 x 27.12 |
19.75 x 26.34 19.75 x 27.23 19.75 x 30.19 19.75 x 36.16 |
29.18 x 34.98 29.18 x 36.17 29.18 x 40.09 29.18 x 48.02 |
102.5 | 8 | < 0.04 (0.08) | < 0.04 (0.10) | C | Yes | 164.9 | 61 | |
| TCSM048 | 0 15 30 45 |
0 2.8 6.1 10.5 |
0.185 0.185 0.185 0.185 |
0.185 0.179 0.161 0.133 |
2/3" | 25.95 x 19.46 25.95 x 20.11 25.95 x 22.36 25.95 x 27.07 |
34.59 x 25.95 34.59 x 26.82 34.59 x 29.81 34.59 x 36.09 |
45.95 x 38.32 45.95 x 39.61 45.95 x 44.04 45.95 x 53.31 |
19.46 x 25.95 19.46 x 26.82 19.46 x 29.81 19.46 x 36.09 |
25.95 x 34.59 25.95 x 35.75 25.95 x 39.75 25.95 x 48.12 |
38.32 x 45.95 38.32 x 47.49 38.32 x 52.80 38.32 x 63.91 |
132.9 | 8 | < 0.08 (0.10) | < 0.05 (0.10) | C | Yes | 200.6 | 75 | |
| TCSM056 | 0 15 30 45 |
0 2.4 5.1 8.8 |
0.157 0.157 0.157 0.157 |
0.157 0.152 0.137 0.112 | 2/3" | 30.57 x 22.93 30.57 x 23.68 30.57 x 26.28 30.57 x 32.14 |
40.76 x 30.57 40.76 x 31.58 40.76 x 35.04 40.76 x 42.86 |
54.14 x 45.16 54.14 x 46.64 54.14 x 51.75 54.14 x 63.30 |
22.93 x 30.57 22.93 x 31.58 22.93 x 35.04 22.93 x 42.86 |
30.57 x 40.76 30.57 x 42.11 30.57 x 46.72 30.57 x 57.14 |
45.16 x 54.14 45.16 x 55.92 45.16 x 62.04 45.16 x 75.89 |
157.8 | 8 | < 0.05 (0.08) | < 0.03 (0.08) | C | Yes | 224.4 | 80 | |
| TCSM064 | 0 15 30 45 |
0 2.1 4.5 7.8 | 0.137 0.137 0.137 0.137 |
0.137 0.132 0.119 0.098 |
2/3" | 35.04 x 26.28 35.04 x 27.27 35.04 x 30.25 35.04 x 36.73 |
46.72 x 35.04 46.72 x 36.36 46.72 x 40.34 46.72 x 48.98 |
62.04 x 51.75 62.04 x 53.71 62.04 x 59.58 62.04 x 72.35 |
26.28 x 35.04 26.28 x 36.36 26.28 x 40.34 26.28 x 48.98 |
35.04 x 46.72 35.04 x 48.48 35.04 x 53.78 35.04 x 65.31 |
51.75 x 62.04 51.75 x 64.39 51.75 x 71.43 51.75 x 86.73 |
181.8 | 8 | < 0.05 (0.08) | < 0.03 (0.07) | C | Yes | 245.5 | 100 | |
| TCSM080 | 0 15 30 45 | 0 1.7 3.6 6.3 |
0.110 0.110 0.110 0.110 |
0.110 0.106 0.095 0.078 | 2/3" | 43.64 x 32.73 43.64 x 33.96 43.64 x 37.89 43.64 x 46.15 |
58.18 x 43.64 58.18 x 45.28 58.18 x 50.53 58.18 x 61.54 |
77.27 x 64.45 77.27 x 66.89 77.27 x 74.63 77.27 x 90.90 |
32.73 x 43.64 32.73 x 45.28 32.73 x 50.53 32.73 x 61.54 |
43.64 x 58.18 43.64 x 60.38 43.64 x 67.37 43.64 x 82.05 |
64.45 x 77.27 64.45 x 80.19 64.45 x 89.47 64.45 x 108.97 |
226.7 | 8 | < 0.04 (0.08) | < 0.02 (0.10) | C | Yes | 291.2 | 116 | |
| TCSM096 | 0 15 30 45 | 0 1.4 3.1 5.3 |
0.093 0.093 0.093 0.093 |
0.093 0.090 0.081 0.066 | 2/3" | 51.61 x 38.71 51.61 x 40.00 51.61 x 44.44 51.61 x 54.55 |
68.82 x 51.61 68.82 x 53.33 68.82 x 59.26 68.82 x 72.73 |
91.40 x 76.24 91.40 x 78.78 91.40 x 87.53 91.40 x 107.42 |
38.71 x 51.61 38.71 x 53.33 38.71 x 59.26 38.71 x 72.73 |
51.61 x 68.82 51.61 x 71.11 51.61 x 79.01 51.61 x 96.97 |
76.24 x 91.40 76.24 x 94.44 76.24 x 104.94 76.24 x 128.79 |
278.6 | 8 | < 0.06 (0.08) | < 0.04 (0.08) | C | Yes | 336.6 | 143 | |
