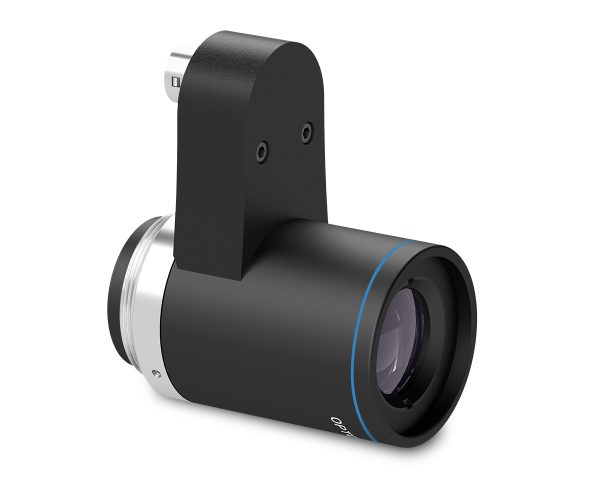

Opto Engingeering EL5MP 5 megapixel fixed focal length macro lenses integrate electronically controlled Optotune liquid lenses in the optics for rapid and precise focus adjustment. Dependable repeatability and focus stability is ensured by the precise thermal calibration algorithm. They are designed for sensors up to 2/3", and are available in focal lengths from 6 - 25 mm.
EL5MP lenses are superb lenses for high-speed inspection tasks in industries such as food and beverage, pharmaceutical, and cosmetics, where rapid adjustments to different product sizes or inspection points are essential. In addition, the speed and accuracy of the autofocus make these optics ideal for guiding robotic arms in applications like pick-and-place and bin-picking, where precise object recognition and manipulation are paramount. The ability to quickly and reliably focus on objects at varying distances enhances the efficiency and accuracy of these automated processes.
Opto Engineering macro lenses work with a variety of sensor sizes, and are available in a wide range of configurations and options. Our Sales Engineers can provide expert advice and guidance on selecting the right lens for your machine vision macro imaging application. Please contact us if you would like more information.
Product User Guide| Get Quote |
Part number |
Main optical specifications | Angle of view | Object field of view | Advanced optical specifications | Mechanical specifications | Data Sheet |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Focal length | Max sensor size | 1/1.8" | 2/3" | 1/1.8" | 2/3" | Working distance range | ƒ/N | Distortion | Mount | Filter thread | Filter diameter | Length | |||
| diagonal | diagonal | 7.13 x 5.33 | 8.50 x 7.09 | ||||||||||||
| (mm) | (deg) | (deg) | (mm) | (%) | (mm) | (mm) | |||||||||
| 1 | 1 | 2 | 3 | 5 | |||||||||||
 | EL5MP0656 | 6 | 1/1.8" | 74.5 | - | 84.88 x 63.45 | - | 60 - inf | 5.6 | < 4.0 | C | M30.5 x 0.5 | 33 | 40.9 |  |
| EL5MP0856 | 8 | 2/3" | 58.9 | 70 | 82.91 x 61.98 | 98.84 x 82.44 | 80 - inf | 5.6 | < 2.5 | C | M30.5 x 0.5 | 33 | 42.3 | |
| EL5MP1256 | 12 | 2/3" | 41.2 | 50 | 67.90 x 50.76 | 80.95 x 67.52 | 100 - inf | 5.6 | < 1.5 | C | M27 x 0.5 | 30 | 37.4 | |
| EL5MP1656 | 16 | 2/3" | 31.1 | 38 | 76.67 x 57.31 | 91.40 x 76.24 | 160 - inf | 5.6 | < 0.6 | C | M27 x 0.5 | 30 | 41.2 | |
| EL5MP2556 | 25 | 2/3" | 19.5 | 24 | 61.47 x 45.95 | 73.28 x 61.12 | 200 - inf | 5.6 | < 0.2 | C | M27 x 0.5 | 30 | 21 | |
