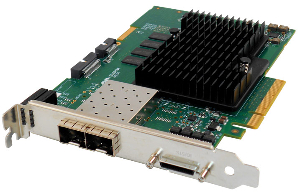

Teledyne DALSA Xtium2 CLHS FX8 LC Camera Link HS Frame Grabber

Xtium2-CLHS FX8 LC frame grabber features two bidirectional 10Gbit/s SFP+ inputs that enable 2GByte/sec of sustained host bandwidth. The CLHS X-Protocol transmits up to 2.0 GB/s of image acquisition and 6.8 GB/s to host memory, and complies to the frame grabber camera standards for Camera Link HS®.

The Xtium series frame grabbers are fully supported by the Sapera LT SDK, a hardware independent, image acquisition and control software development toolkit.

Teledyne DALSA's Sapera LT SDK is a free image acquisition and control toolkit for Teledyne DALSA 2D/3D, GigE, Camera Link, Camera Link HS cameras, and frame grabbers.

Datasheet

Manual

Xtium2 CLHS FX8 LC Specifications

Part Number	OR-A8S0-FX820
Board Type	PCIe
Host Bus	Half-length PCIe x8 card
Board Interface	Camera Link HS
Connectors	2 x SFP+ cages with latch
Camera Format	Up to two CLHS lane configurations
Pixel Clock	Mono8, Mono10, Mono12 and Mono16, RGB 8; RGB+Y 8-bit/color/pixel
Camera Control	Comprehensive event notification/td>
Frame Buffer	512 MB image buffer
Features	Image Cropping, Horizontal and vertical image flip, Multiple board synchronization grab from multiple camera and multiple frame
Software	Sapera LT SDK
OS Support	Windows 7 (32-bit), Windows 7 (64-bit), Windows 10 (32-bit), Windows 10 (64-bit), Linux (64-bit), WoW64
