GigE Line scan camera Teledyne DALSA SL-GA-01K04A Teledyne DALSA SL-GA-01K04A
SWIR GigE Camera
DALSA Proprietary Sensor
1024x1 Resolution
Line Scan Camera

get a quote for this product

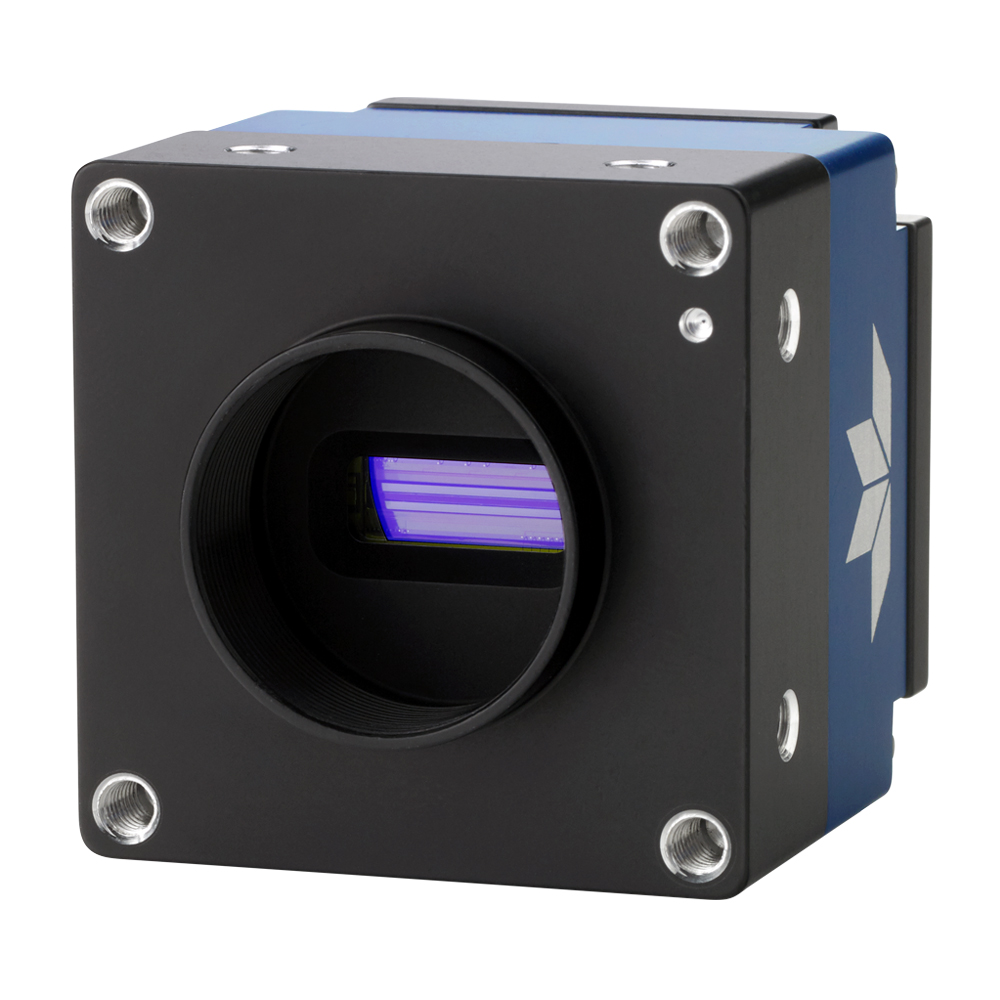

Teledyne DALSA Linea SWIR cameras feature a cutting-edge InGaAs sensor in a compact package that is suitable for a wide variety of SWIR imaging applications. With exceptional responsivity and low noise, this camera allows scientist and engineers to see through materials in applications including electronic board inspection, solar cell inspection, agricultural produce inspection, identifying and sorting, surveillance, anti-counterfeiting, process quality control, and cancer detection within tissue. Linea SWIR is available as a 1k resolution camera with highly responsive 12.5 µm pixels, or a 512 resolution camera with larger 25 µm pixels.

Dalsa Linea Line Scan Cameras

  • 2K to 16K
  • Up to 80 kHz scan rate, TurboDrive
  • RGB color and monochrome options
  • Lowest cost line scan models

SL-GA-01K04A Features

  • InGaAs 1024x1 SWIR sensor, spectral range 950-1700 nm
  • 12.5x12.5µm cell size
  • 8-/12-bit output
  • 40kHz maximum scan rate
Manufacturer: Teledyne DALSA Model: SL-GA-01K04A Total Pixels: 1,024
Resolution: 1,024 (h) 1 (v) Sensor Size(inch): 12.8mm Color/B & W: SWIR
Frame Rate(fps): 40 Sensor Type: InGaAs Sensor Device: DALSA Proprietary
Pixel Size(µm): 12.5(h) 12.5(v) A/D Bits: 14 Shutter Speed(µs): 21(min)/9996(max)
Interface: GigE Voltage(VDC): 12V - 24V Power(watts): 4
Lens Mount: C Shutter Type: Global Weight(grams): 150
S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): 55Lx46Wx46H
