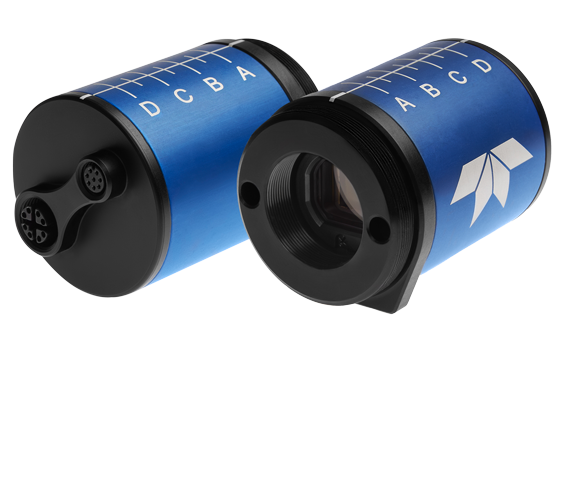

Teledyne DALSA Forge 1GigE IP67 Camera FG-PGE-50S5-IP
Teledyne Vision Solutions Forge IP67 GigE FG-PGE-50S5C-C-IP (Color, C-mount) and FG-PGE-50S5M-C-IP (Mono, C-mount) cameras feature a 1GigE interface, 5 megapixel, global shutter Sony IMX264 2/3" sensor, 24 fps at full 2448x2048 resolution, and a 3.45 µm pixel size.
Teledyne Vision Solution Forge 1GigE IP67 cameras are high-performance machine vision cameras that deliver reliable high-speed imaging in harsh industrial environments. The rugged cylindrical housing provides protection from dust, moisture, and debris, ensuring these industrial cameras excel in demanding environments such as outdoor automation, food and beverage manufacturing, washdown zones, and smart agriculture. For easy system integration, Forge GigE IP67 cameras are compatible with Teledyne Spinnaker SDK, Sapera software and other GigEVision compliant software.
Teledyne DALSA is part of the Teledyne Vision Solutions group, an umbrella organization formed by Teledyne Technologies to unify its machine vision brands.
Forge IP67 GigE Cameras Features
FG-PGE-50S5-IP Camera Features
| Manufacturer: | Teledyne DALSA | Model: | FG-PGE-50S5-IP | Total Pixels: | 5,013,504 |
| Resolution: | 2448 (h) 2048 (v) | Sensor Size: | 2/3" | Color/B & W: | Color / Monochrome |
| Frame Rate (fps): | 24 | Sensor Type: | CMOS | Sensor Device: | Sony IMX264 |
| Pixel Size(µm): | 3.45(h) 3.45(v) | A/D Bits: | 12 | Shutter Speed: | 27 µs to 30 s |
| Interface: | GigE | Voltage(VDC): | PoE / 8 - 24 V | Power(watts): | 3.3W |
| Lens Mount: | C | Shutter Type: | Global | Weight(grams): | 132 |
| S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | 56Lx56Wx45H |
FG-PGE-50S5-IP Datasheet
