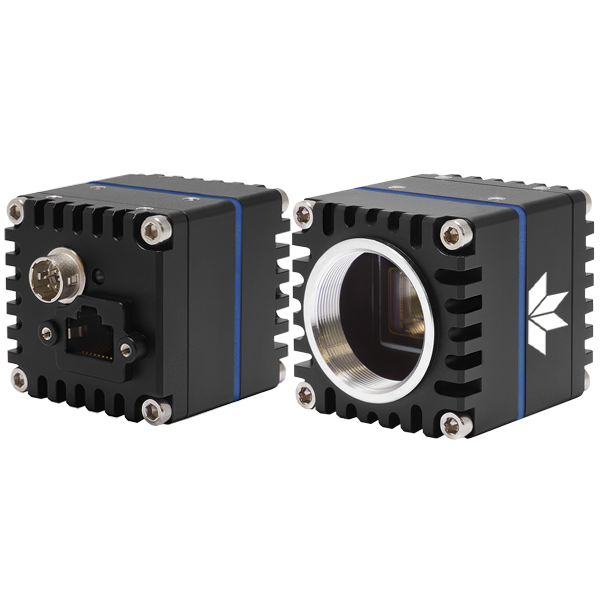

Teledyne DALSA Forge 1GigE SWIR Camera
The Teledyne Vision Solutions Forge 1GigE SWIR FG-PGE-13S3S-U-C camera features a global shutter Sony SenSWIR IMX990 1/2" InGaAs sensor, 1GigE interface, 1.3 megapixel, 92 fps at full 1280x1024 resolution, and a 5 µm pixel size.
Teledyne Vision Solutions Forge 1GigE SWIR cameras use Sony SenSWIR InGaAs sensor technology to deliver high-quality imaging across the visible and SWIR spectrum from 400 nm to 1700 nm. These compact industrial SWIR cameras detect moisture, contaminants, and defects invisible to visible-light cameras, making them ideal for semiconductor inspection, food inspection, recycling, solar, and industrial automation applications. GigE Vision connectivity supports reliable long-distance integration with GigE Vision-compliant software including the Teledyne Spinnaker SDK, and Sapera software.
Teledyne DALSA is part of the Teledyne Vision Solutions group, an umbrella organization formed by Teledyne Technologies to unify its machine vision brands.
Forge 1GigE SWIR Cameras Features
FG-PGE-13S3S-U-C Camera Features
| Manufacturer: | Teledyne DALSA | Model: | FG-PGE-13S3S-U-C | Total Pixels: | 1,310,720 |
| Resolution: | 1280 (h) 1024 (v) | Sensor Size: | 1/2" | Color/B & W: | SWIR |
| Frame Rate (fps): | 92 | Sensor Type: | InGaAs | Sensor Device: | Sony IMX990 |
| Pixel Size(µm): | 5(h) 5(v) | A/D Bits: | 12 | Shutter Speed: | 15 µs to 30 s |
| Interface: | GigE | Voltage(VDC): | PoE / 9.5 - 24 V | Power(watts): | 2.9W |
| Lens Mount: | C | Shutter Type: | Global | Weight(grams): | 116 |
| S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | 44Lx40Wx40H |
FG-PGE-13S3S-U-C Datasheet
