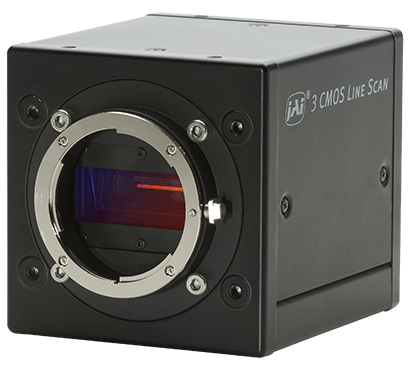

JAI SW-8000T-SFP
10GigE Camera
Proprietary Sensor
8192x3 Resolution
Line Scan Camera

get a quote for this product

JAI Sweep High Performance Prism based Color Line Scan Cameras Features

512 to 8K resolution prism-based line scan cameras
3-sensor RGB and 4-sensor RGB+NIR models
Exceptional color accuracy and registration
CoaXPress, Camera Link, and 10GigE interfaces

SW-8000T-SFP Camera Features

8192x3 pixel 3CMOS prism-based line scan with superior color quality and alignment
49kHz scan rate
3.75 x 5.78 micron pixels
43 DN/nJ/cm² responsivity

SW-8000T-SFP Datasheet

SW-8000T-SFP Manual All JAI Cameras

Manufacturer:	JAI	Model:	SW-8000T-SFP	Total Pixels:	24,576
Resolution:	8192 (h) 3 (v)	Sensor Size:	31mm	Color/B & W:	Color
kHz:	49	Sensor Type:	CMOS	Sensor Device:	Proprietary
Pixel Size(µm):	3.75(h) 5.78(v)	A/D Bits:	10	Shutter Speed:	3µs to 22222µs
Interface:	10GigE	Voltage(VDC):	10-25V	Power(watts):	11.5
Lens Mount:	M52/F	Shutter Type:	Global	Weight(grams):	840
S/N Ratio(dB):	call	External Trigger:	Yes	Dimensions(mm):	90Lx90Wx90H
