click to view larger image USB 3.0 Area scan camera IDS Imaging UI-3240CP-NIR
IDS Imaging UI-3240CP-NIR
NIR USB 3.0 Camera
e2V EV76C661 Sensor
1280x1024 Resolution
Area Scan Camera

get a quote for this product

IDS USB 3.0 Camera uEye CP Camera Family Features

    • VGA to 18MP Sony/ON Semi/e2V/CMOSIS CMOS sensors
    • 1/3.6" to 1" sensor format
    • USB 3.0, 420 MB/s data transfer
    • 128MB image memory for multi-camera flexibility

UI-3240CP-NIR Features

  • Very high sensitivity 1/2" CMOS sensor, global shutter, progressive scan
  • Horizontal and Vertical Binning

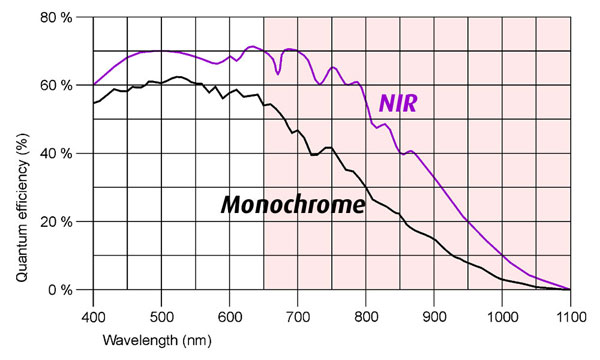

  • Specially enhanced NIR response
Manufacturer: IDS Model: UI-3240CP-NIR Total Pixels: 1,310,720
Resolution: 1,280 (h) 1,024 (v) Sensor Size(inch): 1/1.8 Color/B & W: NIR
Frame Rate(fps): 60 Sensor Type: CMOS Sensor Device: e2V EV76C661
Pixel Size(µm): 5.3(h) 5.3(v) A/D Bits: 10 Shutter Speed(µs): call
Interface: USB 3.0 Voltage(VDC): 5V Power(watts): 2
Lens Mount: C Shutter Type: Global Weight(grams): 75
S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): 29Lx29Wx29H

IDS USB 3.0 Camera Resources

click to calculate FOV/FL for this camera

IDS CP Rev 2 vs Rev 1 - Learn about the modifications and enhancements between CP and CP 'Rev2'

USB 3.0 Camera
Accessories

accessories for USB cameras

USB 3.0 - "SuperSpeed USB"
Background, features and applicability as a camera interface

IDS camera presentations and tutorials

The USB 3.0 specification for "SuperSpeed USB" was presented in November 2008 and introduced as an improved, faster USB interface. New protocol and hardware features eliminate some of the limitations imposed by USB 2.0.

This article presents the main features, and benefits of of USB 3.0 camera interface for image processing.
