IDS Imaging UE-39B0XLS-E uEye+

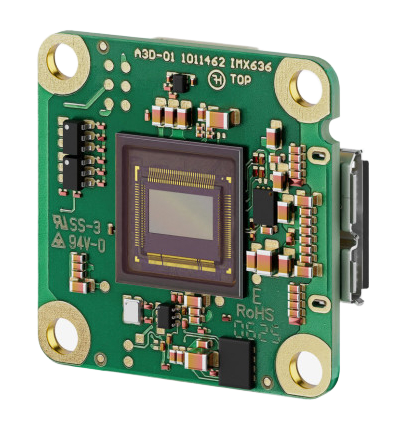

The IDS Imaging uEye EVS UE-39B2XLS-E event based camera features a 1/2.5" 1280x720 resolution Sony Prophesee IMX636 sensor, a USB3 interface with speeds up to 5 Gbps, a lockable USB-Micro-B connector, and has no lens mount. With an ultra-compact size and lightweight, this event-based camera is well-suited for embedded systems.
Unlike traditional frame-based cameras, IDS Imaging uEye EVS event-based cameras utilize a change-driven approach, capturing only pixel-level brightness changes. This asynchronous method drastically reduces data transmission, leading to lower latency and improved efficiency. uEye EVS event-based cameras are available without a lens mount, or with a C, CS, or S lens mount. They are an optimal solution for a wide range of imaging applications, including object tracking, robotics, sports and motion analysis, traffic and transport (ITS), and visualization applications.
IDS uEye EVS Event Based Cameras Features
UE-39B2XLS-E Camera Features
| Manufacturer: | IDS | Model: | UE-39B2XLS-E | Total Pixels: | 921,600 |
| Resolution: | 1280 (h) 720 (v) | Sensor Size: | 1/2.5" | Color/B & W: | Monochrome |
| Frame Rate (fps): | call | Sensor Type: | CMOS | Sensor Device: | Sony IMX636 |
| Pixel Size(µm): | 4.86(h) 4.86(v) | A/D Bits: | - | Shutter Speed: | Event-based |
| Interface: | USB3 | Voltage(VDC): | USB cable | Power(watts): | 0.4 W - 2 W |
| Lens Mount: | - | Shutter Type: | Event-based | Weight(grams): | 5 |
| S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | 6.4Lx29Wx29H |
uEye XCP-E image vs. Area scan image
Event-based imaging
Less data -> More speed
For more information, videos and application examples read our XCP-E event-based cameras blog .
UE-39B2XLS-E Datasheet
