USB3 Area scan camera IDS Imaging U3-36L0XC IDS Imaging U3-36L0XC
uEye+
USB3 Camera
ON Semi AR1335 Sensor
4208x3120 Resolution
Area Scan Camera

get a quote for this product

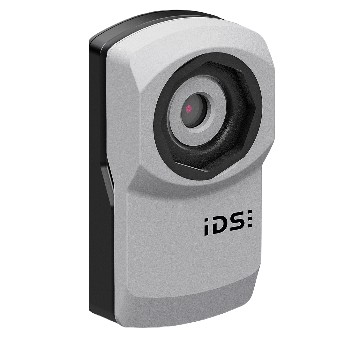

The IDS Imaging uEye+ XC U3-36L0XC autofocus USB3 camera features an ON Semi AR1335 13MP (4208x3120 resolution) CMOS sensor. The BSI (Back Side Illumination) pixel technology ensures perfectly detailed images and videos even with changing object distances or difficult lighting conditions. The rolling shutter color sensor (4208x3120 px px, pixel size 1.1µm) delivers 21.0 fps at full resolution.

The compact U3-36L0XC camera is built with die-cast magnesium housing with a low weight of only 42 grams.

IDS uEye XC USB 3.0 Autofocus Cameras

  • Excellent low-light performance and low pixel noise
  • GenICam-compliant
  • Compact low weight autofocus camera
  • True-to-detail images

U3-36L0XC Features

  • ON Semi AR1335 sensor
  • 13MP 4208x3120 resolution
  • 21 fps
  • Compact and low weight (42 grams)
    • U3-36L0XC Datasheet U3-36L0XC Manual   Software    All IDS Camera
    Manufacturer: IDS Model: U3-36L0XC Total Pixels: 13,128,960
    Resolution: 4208 (h) 3120 (v) Sensor Size: 1/3.2" Color/B & W: Color
    Frame Rate (fps): 21 Sensor Type: CMOS Sensor Device: ON Semi AR1335
    Pixel Size(µm): 1.1(h) 1.1(v) A/D Bits: 8 Shutter Speed: .015 msµs to 699 msµs
    Interface: USB3 Voltage(VDC): USB cable Power(watts): 0.4 W - 1.4 W
    Lens Mount: call Shutter Type: Rolling Weight(grams): 42
    S/N Ratio(dB): call External Trigger: call Dimensions(mm): 19Lx31.9Wx60.9H

    Camera Resources


    click to calculate FOV/FL for this camera

    Lens Calculator




    Click to see our wide selection of camera accessories
    Camera Accessories
