USB3 Area scan camera IDS Imaging U3-3686XLE-NIR IDS Imaging U3-3686XLE-NIR Rev 1.1
NIR USB3 Camera
ON Semi AR0522 Sensor
2592x1944 Resolution
Area Scan Camera

get a quote for this product

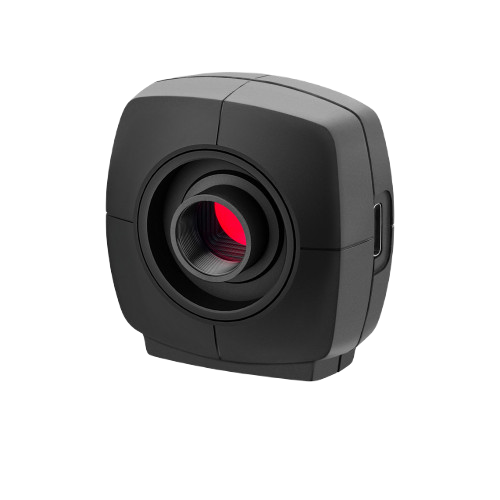

The uEye+ U3-3686XLE-NIR USB3 camera features an ON Semi AR0522 1/2.5" 5 megapixel rolling shutter CMOS sensor with a 2.2 µm pixel size, 48 fps at full 2592x1944 resolution, and an S-mount lens holder. The U3-3686XLE-NIR camera operates in the near infrared range (NIR) of the spectrum (above 750nm wavelength), and is ideal for industrial applications with low light or fluctuating light conditions.

IDS Imaging uEye+ XLE USB3 cameras are available in a number of configurations that include housed or board-level, rolling or global shutter, and a C, CS, S, or M12 lens mount or no lens mount in some board cameras. The USB3 interface transmits data at 5 Gpbs. All uEye+ XLE cameras have a USB 3.1 Gen 1 connector. They communicate via the USB3 Vision protocol and are 100 percent GenICam-compliant. uEye+ XLE cameras are a cost-effective solution and feature a compact size that is ideal for embedded applications, and many other industrial applications such as agriculture, measurement technology, and transportation. uEye+ XLE cameras can be easily integrated with 3rd party compliant software or used with IDS Peak Software Suite SDK. All IDS cameras are backed by a 3 year warranty.

IDS Imaging uEye XLE USB 3.0 Cameras

  • USB3 Vision
  • USB Type-C connector
  • GenICam compliant
  • Board-level and housed options

U3-3686XLE-NIR Features

  • Near infrared (NIR) imaging
  • 5 MP resolution (2592x1944)
  • Plastic housing with S-mount lens holder
  • 2.2 µm pixel size
Manufacturer: IDS Model: U3-3686XLE-NIR Total Pixels: 5,038,848
Resolution: 2592 (h) 1944 (v) Sensor Size: 1/2.5" Color/B & W: NIR
Frame Rate (fps): 48 Sensor Type: CMOS Sensor Device: ON Semi AR0522
Pixel Size(µm): 2.2(h) 2.2(v) A/D Bits: 12 Shutter Speed: .010 msµs to 635 msµs
Interface: USB3 Voltage(VDC): USB cable Power(watts): 0.6 W - 1.2 W
Lens Mount: S Shutter Type: Rolling Weight(grams): 33
S/N Ratio(dB): call External Trigger: call Dimensions(mm): 25Lx46Wx47H
